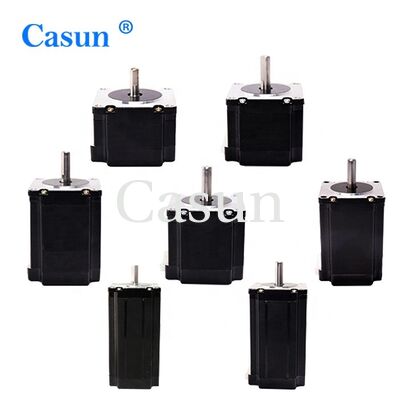

Enclosed Hybrid Stepper Motor with Class B Insulation and 64mm Motor Height for Robotics and CNC Machines

Nama merek:	Casun
MOQ:	1PC
Ketentuan Pembayaran:	L/C, D/A, D/P, T/T
Kemampuan Pasokan:	40000+PCS+Month

Informasi Rinci

Deskripsi Produk

Informasi Rinci

Sertifikasi:

CE,ROHS,ISO

Portect Feature:

Enclosed

Torque:

21kg.cm

Shaft:

5mm D-cut Shaft

Phase Current:

1A/phase

Insulation Resistance:

100MΩ Min，500VDC

Length:

56mm

Gear Ratio:

Multiple, From 3:1 To 200:1

Valtoge:

3.36v

Packaging Details:

Carton:210x190x170

Menyoroti:

Enclosed Hybrid Stepper Motor

Class B Insulation Hybrid Stepper Motor

64mm Motor Height NEMA 17 Stepper Motor

Deskripsi Produk

Enclosed Hybrid Stepper Motor

Class B Insulation, 64mm motor height. Ideal for robotics, automation, and CNC machines requiring precision motion control.

Product Overview

The Hybrid Stepper Motor delivers exceptional torque, precise positioning, and smooth operation for demanding precision motion control applications. Combining permanent magnet and variable reluctance technologies, this motor offers superior performance in robotics, automation, 3D printing, and CNC machinery.

Key Specifications

• Motor Height: 64mm

• Nominal Voltage: 120V

• Voltage: 3.36V

• Insulation Class: Class B

• NEMA 17 Standard Compatibility

Product Features

Product Name: Hybrid Stepper Motor
Type: Hybrid Stepping Motor
Nominal Voltage: 120V
Size: 42MM (NEMA 17 Stepper Motor standard)
Length: 56mm
Shaft: 5mm D-cut Shaft for secure coupling
Dielectric Strength: 500VDC for One Minute
High precision and reliability
Enclosed protection feature

Technical Parameters

Parameter	Value
Size	42MM
Phase Current	1A/phase
Protect Feature	Enclosed
Shaft	5mm D-cut Shaft
Length	56mm
Max Axial Force	60N
Metal Type	Steel
Insulation Class	Class B
Dielectric Strength	500VDC For One Minute
Voltage	3.36V

Applications

This NEMA 17 stepper motor is certified by CE, ROHS, and ISO standards, ensuring reliability for demanding applications including:

3D Printers and CNC Machines
Robotics and Automation Systems
Medical Devices and Lab Automation
Packaging Machinery
Precision Positioning Systems
Automated Assembly Lines

The motor's compact design, enclosed protection, and high dielectric strength make it suitable for continuous operation in various industrial and commercial environments.
