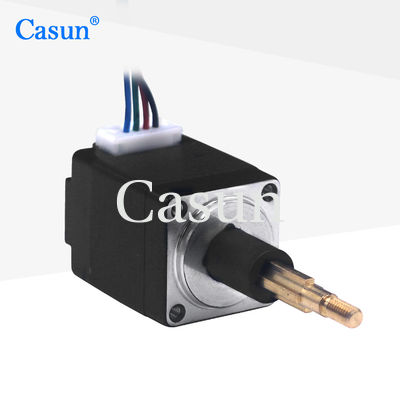

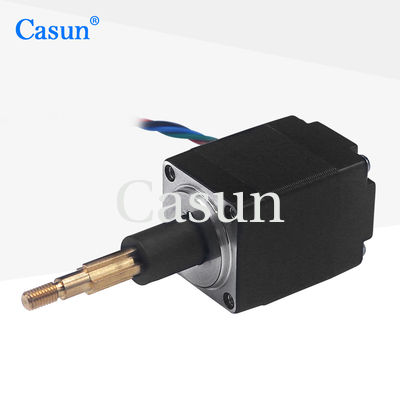

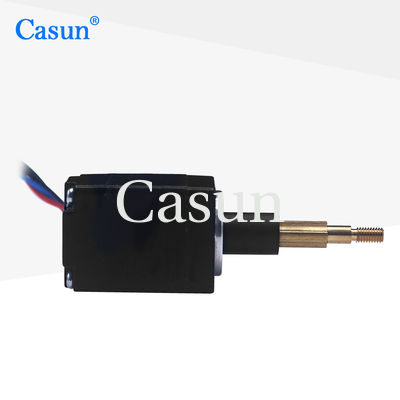

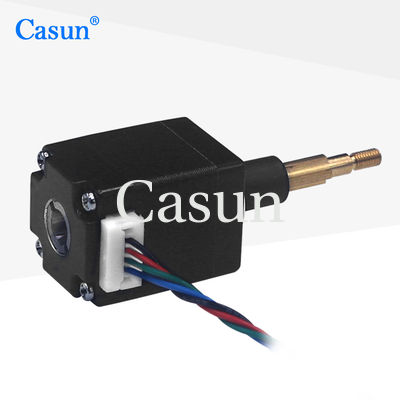

Casun Linear Stepper Motor With 0.8 Kg At 600 PPS 1.8° Degree Nema 8 High Precision Stepper Motor

Nama merek:	Casun
Nomor Model:	B20SHD4351-C9P
MOQ:	5 buah
Harga:	$16.8~$19
Ketentuan Pembayaran:	D/A, T/T, L/C, D/P
Kemampuan Pasokan:	10000+pcs+bulan

Informasi Rinci

Deskripsi Produk

Informasi Rinci

Tempat asal:

Cina

Sertifikasi:

CE,ROHS,ISO

Memegang Torsi:

0,8kg pada 600 PPS

Voltase:

2,55 V

Saat ini:

0,5 a

Panjang tubuh:

28mm

Berat:

0,1 kg

Resistansi Fase:

5,1 ohm ±10% （Pada 20℃）

Panjang Poros:

23 mm

Fase:

Kelas Isolasi:

Nitrogen

Kemasan rincian:

Karton: 38x29x18cm

Menyoroti:

600 PPS Linear Stepper Motor

1.8° Degree Linear Stepper Motor

High Precision Linear Stepper Motor

Deskripsi Produk

Casun Linear Stepper Motor with 0.8 Kg at 600 PPS 1.8° Degree Nema 8 High Precision Stepper Motor

The Casun NEMA 8 Linear Stepper Motor delivers high precision (1.8° step angle) and smooth motion, with a thrust force of 0.8 kg at 600 PPS. Compact yet powerful, it’s ideal for applications requiring accurate positioning in tight spaces, such as medical devices, lab automation, and small CNC systems. Engineered for reliability and efficiency, this motor ensures consistent performance in precision-driven tasks.

Features:

Bipolar or unipolar versions available
Hybrid stepper construction
Available in single- or double-shaft versions
CE and RoHS approved
Customizations on request

Dimensions

Casun Linear Stepper Motor With 0.8 Kg At 600 PPS 1.8° Degree Nema 8 High Precision Stepper Motor 0

Motor Specifications

Step Angel	1.8°
Frame Size	28 mm
Number of Phase	2 Phase
Rated Current	0.5 Amp
Holding Torque	0.8 kg at 600 PPS
Resistance	5.1 ohm
Inductance	1.5 mH
Rotor Inertia	2 g.cm²
Motor weight	0.1 kg
Connection	Bipolar

Operating Specifications

Motor

Step Angle: 1.8°

Maximum Temperature: 80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range: 85% or less, non-condensing

Magnet Wire Insulation: Class B 130 deg C

Insulation Resistance: 100M Ohm at 500 VDC

Dielectric Strength: 500 VDC for 1 min

Encoder

Voltage: 5 v

Output: A + A - B + B - Z + Z -

Submodels

Casun Linear Stepper Motor With 0.8 Kg At 600 PPS 1.8° Degree Nema 8 High Precision Stepper Motor 1

Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs

Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:
Encoder | Brake | Gearbox | Shaft

Casun Linear Stepper Motor With 0.8 Kg At 600 PPS 1.8° Degree Nema 8 High Precision Stepper Motor 2

Please click the "Get a quote" button below to tell us your requirements.
