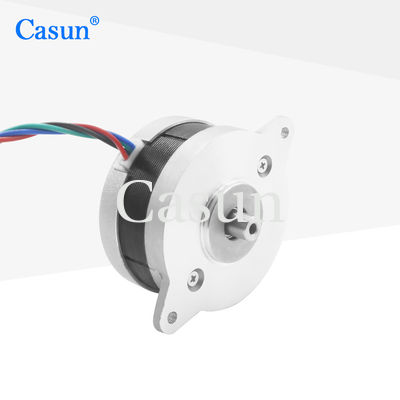

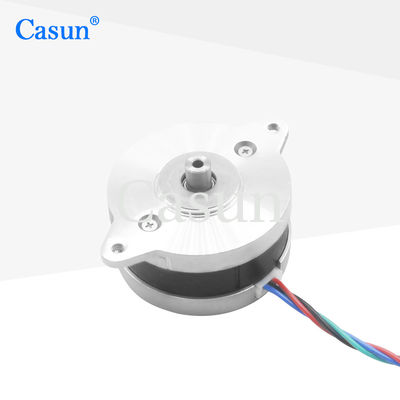

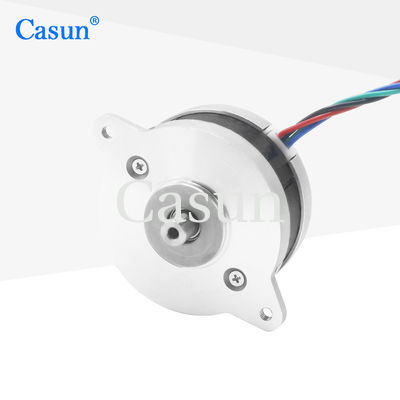

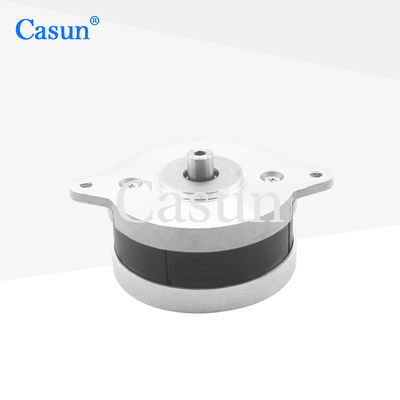

Casun Flat Stepper Motor 18.6mm Body 100mN.m 0.07Kg Lightweight Stepping Motor for Robotics

Casun Flat Stepper Motor 18.6mm Body 100mN.m 0.07Kg Lightweight Stepping Motor for Robotics

Nama merek:	Casun
Nomor Model:	36SHD4401-6K
MOQ:	5 buah
Harga:	$3.91~$4.87
Ketentuan Pembayaran:	D/A, T/T, L/C, D/P
Kemampuan Pasokan:	10000+pcs+bulan

Informasi Rinci

Deskripsi Produk

Informasi Rinci

Tempat asal:

Cina

Sertifikasi:

CE,ROHS,ISO

Memegang Torsi:

100 mN.m

Voltase:

2.15V

Saat ini:

Panjang tubuh:

18.6mm

Berat:

0,07 kg

Resistansi Fase:

2,15 ohm ±10% （Pada 20℃）

Panjang Poros:

6mm

Fase:

Kelas Isolasi:

Nitrogen

Kemasan rincian:

Karton: 38x29x18cm

Menyoroti:

Lightweight Flat Stepper Motor

18.6mm Body Flat Stepper Motor

Stepping Motor for Robotics

Deskripsi Produk

Casun Flat Stepper Motor 18.6mm Body 100mN.m 0.07Kg Lightweight Stepping Motor for Robotics

The Casun Flat Stepper Motor redefines compact motion control with an ultra-thin 18.6 mm body and lightweight 0.07 kg design, making it perfect for robotics, drones, and portable devices where space and weight are critical. Despite its slim form, it delivers a robust 100 mN.m

holding torque for precise and reliable operation.

Features:

Bipolar or unipolar versions available
Hybrid stepper construction
Available in single- or double-shaft versions
CE and RoHS approved
Customizations on request

Dimensions

Casun Flat Stepper Motor 18.6mm Body 100mN.m 0.07Kg Lightweight Stepping Motor for Robotics 0

Motor Specifications

Step Angel	1.8°
Frame Size	18.6 mm
Number of Phase	2 Phase
Rated Current	1 Amp
Holding Torque	100 mN.m
Resistance	2.15 ohm
Inductance	1.41 mH
Rotor Inertia	13.7 g.cm²
Motor weight	0.07 kg
Connection	Bipolar

Operating Specifications

Motor

Step Angle: 1.8°

Maximum Temperature: 80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range: 85% or less, non-condensing

Magnet Wire Insulation: Class B 130 deg C

Insulation Resistance: 100M Ohm at 500 VDC

Dielectric Strength: 500 VDC for 1 min

Encoder

Voltage: 5 v

Output: A + A - B + B - Z + Z -

Submodels

Casun Flat Stepper Motor 18.6mm Body 100mN.m 0.07Kg Lightweight Stepping Motor for Robotics 1

Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs

Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:
Encoder | Brake | Gearbox | Shaft

Casun Flat Stepper Motor 18.6mm Body 100mN.m 0.07Kg Lightweight Stepping Motor for Robotics 2

Please click the "Get a quote" button below to tell us your requirements.
