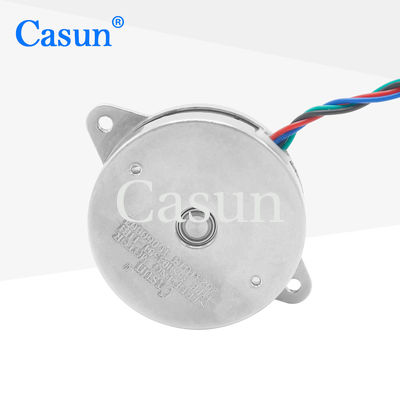

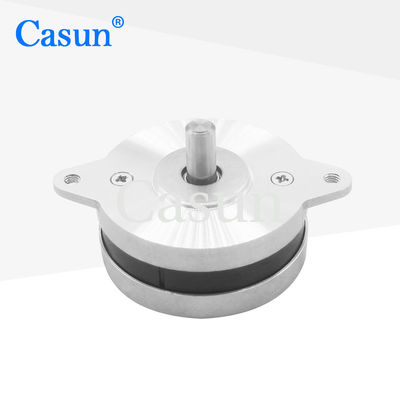

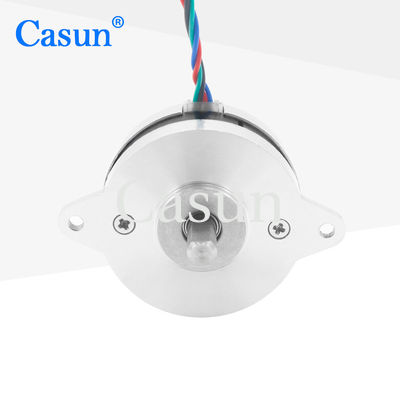

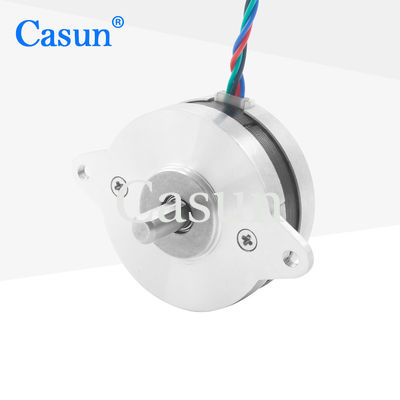

Casun Nema 14 Pancake Stepper Motor 4.65 V 0.3 A For Precise Instrument

Casun Nema 14 Pancake Stepper Motor 4.65 V 0.3 A For Precise Instrument

Nama merek:	Casun
Nomor Model:	36SHD4301-11B1
MOQ:	1 buah
Harga:	$3-$3.8
Ketentuan Pembayaran:	D/A, T/T, L/C, D/P
Kemampuan Pasokan:	40000+Buah+Bulan

Informasi Rinci

Deskripsi Produk

Informasi Rinci

Tempat asal:

Cina

Sertifikasi:

CE,ROHS,ISO

Diameter Poros:

4,5 mm

Tipe Motor:

Motor Stepper

Bahan Perumahan:

Aluminium

Sudut langkah:

1,8°

Fase:

Praktek:

Nema 14

Saat ini:

0,3 A

Kemasan rincian:

Karton: 38x29x18cm

Menyoroti:

Casun NEMA 14 Stepper Motor

Pancake NEMA 14 Stepper Motor

Deskripsi Produk

Casun Nema 14 Pancake Stepper Motor 4.65 V 0.3 A for Precise Instrument

The Casun Nema 14 Pancake Stepper Motor is a compact and efficient solution for precise instruments. With a low power requirement (4.65 V, 0.3 A), it delivers smooth and accurate motion control, making it ideal for applications where space and precision are critical, such as small CNC machines, medical devices, and laboratory equipment.

Features:

Bipolar or unipolar versions available
Hybrid stepper construction
Available in single or double shaft versions
CE and RoHS approved
Customizations on request

Dimensions

Casun Nema 14 Pancake Stepper Motor 4.65 V 0.3 A For Precise Instrument 0

Motor Specifications

Step Angel	1.8 °
Frame Size	36 mm
Number of Phase	2 Phase
Rated Current	0.3 Amp
Holding Torque	70 mN.m
Resistance	15.5 ohm
Inductance	7.0 mH
Rotor Inertia	4 g.cm²
Motor weight	0.06 kg
Connection	Bipolar

Operating Specifications

Motor

Step Angle: 1.8°

Maximum Temperature: 80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range: 85% or less, non-condensing

Magnet Wire Insulation: Class B 130 deg C

Insulation Resistance: 100M Ohm at 500 VDC

Dielectric Strength: 500 VDC for 1 min

Encoder

Voltage: 5 v

Output: A + A - B + B - Z + Z -

Submodels

Model	Holding Torque	Step Angle	Length	Type of Shaft	Rated Current
35SHD0307	80 mN.m	1.8°	20 mm	D Shaft-20mm	0.4A
35SHD0001	100 mN.m	1.8°	26 mm	D Shaft-20mm	0.4A
35SHD0102	150 mN.m	1.8°	34 mm	D Shaft-20mm	0.75A
35SHD0801	230 mN.m	1.8°	40 mm	D Shaft-20mm	0.5A

Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs

Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:
Encoder | Brake | Gearbox | Shaft

Casun Nema 14 Pancake Stepper Motor 4.65 V 0.3 A For Precise Instrument 1

Please click the "Get a quote" button below to tell us your requirements.
