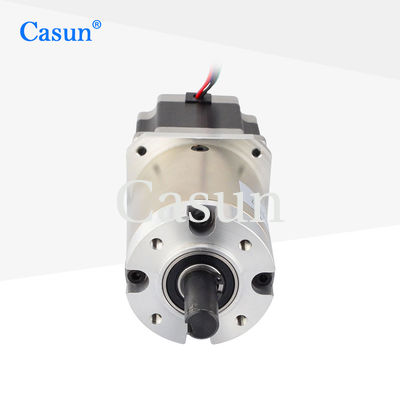

Gear Reduction Ratio 1/47 NEMA 23 Stepper Motor 57×57×54mm With CE ISO

Gear Reduction Ratio 1/47 NEMA 23 Stepper Motor 57×57×54mm With CE ISO

Nama merek:	Casun
Nomor Model:	23HS22-2804S-PG47
MOQ:	1 buah
Harga:	$22.49-$27
Ketentuan Pembayaran:	D/A, T/T, L/C, D/P
Kemampuan Pasokan:	40000+Buah+Bulan

Informasi Rinci

Deskripsi Produk

Informasi Rinci

Tempat asal:

Cina

Sertifikasi:

CE,ROSH,ISO

Disesuaikan:

Motor dapat dirancang & diproduksi dengan permintaan khusus.

Nilai Saat Ini:

2.8A

Memegang Torsi:

1,25Nm

Kemasan rincian:

Karton: 38x29x18cm

Menyoroti:

57×57×54mm NEMA 23 Stepper Motor

2.8A NEMA 23 Stepper Motor

NEMA 23 Stepper Motor

Deskripsi Produk

The NEMA 23 reduction motor reduces speed and increases torque through a reduction mechanism, which can output greater torque at low speeds and is suitable for situations where high torque is required.

Widely used in fields such as machine tool equipment, automated production lines, 3D printers, etc.

Features:

Versions in unipolar or bipolar are offered
Deliver "multiple international certifications" for electrical and high-tech devices
Available in single or double shaft versions
Ten-year warranty and purchase with confidence
Customizations on request

Dimensions

Motor Specifications

Step Angel	1.8 °
Fram Size	57 mm
Number of Phase	2 Phase
Rated Current	2.8 A
Holding Torque	1250mN.m
Resistance	0.9 hm
Inductance	2.5 mH
Rotor Inertia	260 g-cm²
Motor weight	1.1 kg
Gear Reduction Ratio	46.66:1
Connection	Bipolar

Operating Specifications

Motor

Step Angle: 1.8°

Maximum Temperature :80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range (%) :85% or less, non-condensing

Magnet Wire Insulation :Class B 130 deg C

Insulation Resistance :100M Ohm at 500 VDC

Dielectric Strength :500 VDC for 1 min

Gear Box

Housing Material:Metal

Bearing at Output:Ball Bearings

Max.Radial Load(12mm from flange):≤250N

Max.Shaft Axial Load:≤100N

Radial Play of Shaft (near to Flange):≤0.08m

Axial Play of Shaft:≤0.4mm

Backlash at No-load:≤2.5°

Torque Curves

Submodels

Motor Length	Length of Gearbox	Raio	Efficiency
41 mm 54 mm 76 mm 83 mm 100 mm	48 mm	3.6	90%
		4.25
	60 mm	12.96	80%
		15.3
		18.1
	72 mm	46.66	70%
		55.08
		65.025
		76.77

Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs

Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:
Encoder | Brake | Gearbox | Shaft

Gear Reduction Ratio 1/47 NEMA 23 Stepper Motor 57×57×54mm With CE ISO 1

Please click the "Get a quote" button below to tell us your requirements.
