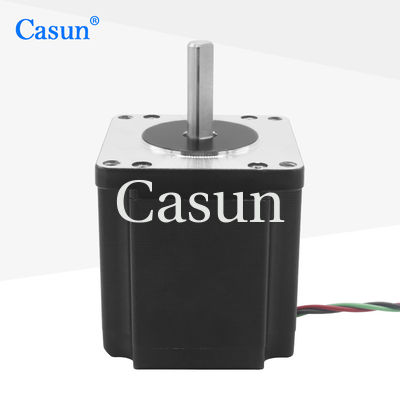

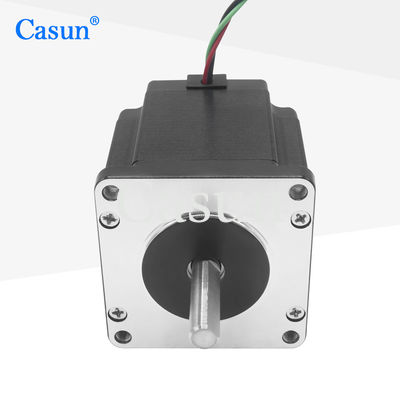

1.2° Angle 1.1N.M 60x60x66mm Hybrid Stepper Motor For Automation Equipment

1.2° Angle 1.1N.M 60x60x66mm Hybrid Stepper Motor For Automation Equipment

Nama merek:	Casun
Nomor Model:	PL60SHC3650-30BHM5
MOQ:	1 buah
Harga:	$12.00-$16
Ketentuan Pembayaran:	D/A, T/T, L/C, D/P
Kemampuan Pasokan:	40000+Buah+Bulan

Informasi Rinci

Deskripsi Produk

Informasi Rinci

Tempat asal:

Cina

Sertifikasi:

CE,ROHS,ISO

Warna:

Hitam

Arus / Fase:

1.5a

Memegang Torsi:

1,1 Nm

Sudut langkah:

1.2°

Disesuaikan:

Motor dapat dirancang & diproduksi dengan permintaan khusus.

Kemasan rincian:

Karton: 38x29x18cm

Menyoroti:

1.1N.M Hybrid Stepper Motor

60x60x66mm Hybrid Stepper Motor

Automation Equipment Hybrid Stepper Motor

Deskripsi Produk

Stepper motor NEMA 24 4000mN.m 60x60x98 hybrid stepper motor for automation equipment

The Nema24 60MMX60MM Hybrid Open Loop Stepper Motor is a type of stepper motor that is commonly used in CNC machines, 3D printers, and robotics applications. It is designed to provide high torque and precise positioning, making it suitable for a wide range of applications.

One of the key features of the Nema24 60MMX60MM Hybrid Open Loop Stepper Motor is its hybrid design, which combines the best features of both permanent magnet and variable reluctance stepper motors. This allows it to provide high torque and precise positioning, while also operating efficiently and reliably.

Features:

Bipolar or unipolar versions available
Professional research and development manufacturing
Available in single or double shaft versions
Established in China for 12 years and has served more than 800 customers
Customizations on request

Dimensions

Motor Specifications

Step Angel	1.8 °
Fram Size	60 mm
Number of Phase	2 Phase
Rated Current	1.5 Amp
Holding Torque	1.1N.m
Resistance	2.3hm
Inductance	4.7mH
Rotor Inertia	-g-cm²
Motor weight	-kg

Operating Specifications

Motor

Step Angle: 1.8°

Maximum Temperature :80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range (%) :85% or less, non-condensing

Magnet Wire Insulation :Class B 130 deg C

Insulation Resistance :100M Ohm at 500 VDC

Dielectric Strength :500 VDC for 1 min

Torque Curves

Submodels

Model	Holding Torque	Step Angle	Length	Type of Shaft	Rated Current
42SHD4950	0.13N.m	1.8°	20mm	D Shaft-20mm	1.0A
42SHD4003	0.26N.m	1.8°	34mm	D Shaft-20mm	0.4A
42SHD0261	0.45N.m	1.8°	40mm	D Shaft-20mm	1.68A
42SHD4425	0.59N.m	1.8°	48mm	D Shaft-24mm	2.0A
42SHD4813	0.8N.m	1.8°	60mm	D Shaft-24mm	2.1A

Download

We have the ability to customize motor features such as shafts, winding parameters, installation dimensions, lead wires, and connectors can help to ensure that the motor is a perfect fit for the customer's application. This can lead to improved efficiency, increased reliability, and reduced downtime.

Options:
Encoder | Brake | Gearbox | Shaft

1.2° Angle 1.1N.M 60x60x66mm Hybrid Stepper Motor For Automation Equipment 1

Please click the "Get a quote" button below to tell us your requirements.
