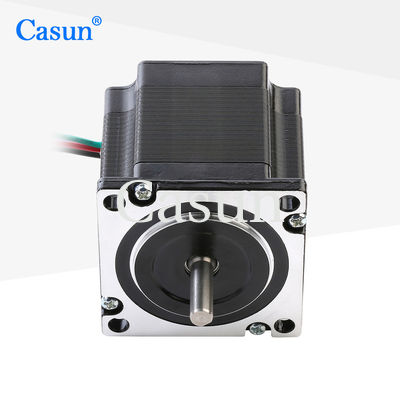

NEMA 23 TWO-PHASE 1.8° 57 STEPPER MOTOR 54MM BODY 1.0A PRINTING MACHINE

NEMA 23 TWO-PHASE 1.8° 57 STEPPER MOTOR 54MM BODY 1.0A PRINTING MACHINE

Nama merek:	Casun
Nomor Model:	57SHD6448-21BH
MOQ:	1 buah
Harga:	$3.14-$5
Ketentuan Pembayaran:	D/A, T/T, L/C, D/P
Kemampuan Pasokan:	40000+Buah+Bulan

Informasi Rinci

Deskripsi Produk

Informasi Rinci

Tempat asal:

Cina

Sertifikasi:

CE,ROHS,ISO

Langkah Malaikat:

1,8°

Memegang Torsi:

900mN.m

Saat ini:

1.0A

Panjang motor:

54mm

Batang:

Penggilingan Poros Datar Panjang 21mm

Disesuaikan:

Motor dapat dirancang & diproduksi dengan permintaan khusus.

Kemasan rincian:

Karton: 36x29x14cm

Menyoroti:

1.0A NEMA 23 Stepper Motor

High Torque NEMA 23 Stepper Motor

54MM NEMA 23 Stepper Motor

Deskripsi Produk

The low cost of NEMA 23 stepper motors makes them highly cost-effective in many application scenarios.

Stepper motors can provide high torque at low speeds, making them ideal for applications that require high torque, such as robotic arms and 3D printers.

Features:

High accuracy and torque
Offer “a variety of international accreditations” for equipment in the high-tech and electronics sectors
Boasting high torque and precision
Dealers wanted!
Every stepper motor model is adaptable to a range of applications

Motor Specifications

Step Angel	1.8 °
Fram Size	57 mm
Number of Phase	4 Phase
Rated Current	1.0 A
Holding Torque	900 mN.m
Resistance	7.4 ohm
Inductance	10 mH
Rotor Inertia	260 g-cm²
Motor weight	0.6 kg
Number of leads	4
Connection	Bipolar

Appearance

NEMA 23 TWO-PHASE 1.8° 57 STEPPER MOTOR 54MM BODY 1.0A PRINTING MACHINE 0

Dimensions

NEMA 23 TWO-PHASE 1.8° 57 STEPPER MOTOR 54MM BODY 1.0A PRINTING MACHINE 1

Operating Specifications

Step Angle: 1.8°

Maximum Temperature :80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range (%) :85% or less, non-condensing

Magnet Wire Insulation :Class B 130 deg C

Insulation Resistance :100M Ohm at 500 VDC

Dielectric Strength :500 VDC for 1 min

Torque Curves

Submodels

Model	Holding Torque	Step Angle	Length	Type of Shaft	Rated Current
57SHD4013-21B	0.6N.m	1.8°	41mm	D Shaft-21mm	1.0A
57SHD4415-21B	1.1N.m	1.8°	54mm	D Shaft-21mm	3.0A
57SHD4816-21B	2.0N.m	1.8°	76mm	D Shaft-21mm	3.0A
57SHD4913-21B	2.5N.m	1.8°	83mm	D Shaft-21mm	3.0A
57SHD4934-20B	3.0N.m	1.8°	100mm	D Shaft-20mm	3.0A

Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs

Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:

Encoder	Brake	Gearbox	Shaft

Please click the "Get a quote" button below to tell us your requirements.
