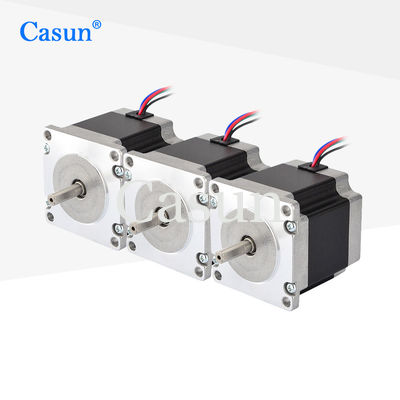

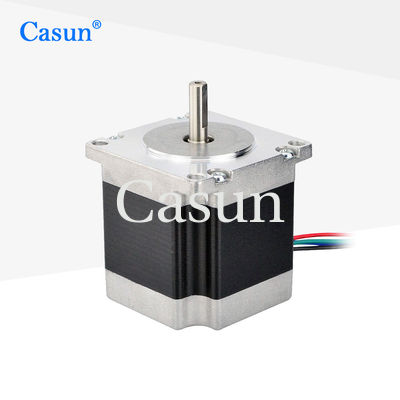

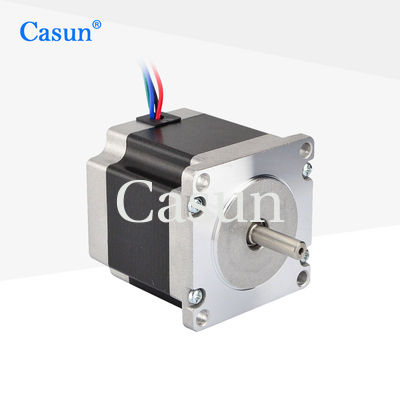

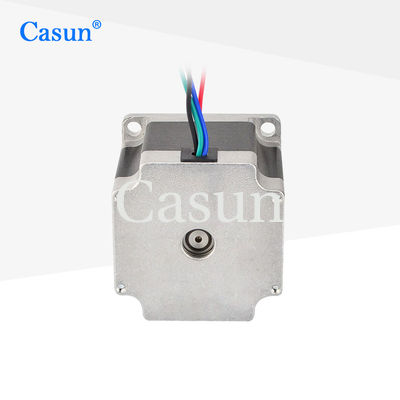

NEMA 23 Two Phase 1.8° 57 STEPPER MOTOR 56mm Body Low Noise 1.26N.m For Laser Marking

NEMA 23 Two Phase 1.8° 57 STEPPER MOTOR 56mm Body Low Noise 1.26N.m For Laser Marking

Nama merek:	Casun
Nomor Model:	57SHDH4608-27B
MOQ:	1 buah
Harga:	$3.14-$5
Ketentuan Pembayaran:	D/A, T/T, L/C, D/P
Kemampuan Pasokan:	40000+Buah+Bulan

Informasi Rinci

Deskripsi Produk

Informasi Rinci

Tempat asal:

Cina

Sertifikasi:

CE,ROHS,ISO

Langkah Malaikat:

1,8°

Memegang Torsi:

1.26N.m

Saat ini:

2.8A

Panjang motor:

56mm

Batang:

Poros Bulat Panjang 27mm

Disesuaikan:

Motor dapat dirancang & diproduksi dengan permintaan khusus.

Kemasan rincian:

Karton: 36x29x14cm

Menyoroti:

Low noise NEMA 23 Stepper Motor

Two Phase NEMA 23 Stepper Motor

56mm NEMA 23 Stepper Motor

Deskripsi Produk

Stepper motors can quickly respond to control signals, achieving fast start, stop, and positioning, which is very important for automation equipment that requires fast response.

For applications that do not require high precision but require high torque, stepper motors are a more economical choice.

Features:

Experts in drivetrain solutions
Supply various international accreditations for the tech and electronics sectors
Each model of stepper motor can be suitable for different scenarios
With 12 years of experience in China, we have served over 800 satisfied customers
Custom solutions and contract manufacturing are available

Motor Specifications

Step Angel	1.8 °
Fram Size	57 mm
Number of Phase	2 Phase
Rated Current	2.8 A
Holding Torque	1.26 N.m
Resistance	0.9 ohm
Inductance	2.5 mH
Rotor Inertia	280 g-cm²
Motor weight1	0.62 kg
Number of leads	4
Connection	Bipolar

Appearance

NEMA 23 Two Phase 1.8° 57 STEPPER MOTOR 56mm Body Low Noise 1.26N.m For Laser Marking 0

Dimensions

NEMA 23 Two Phase 1.8° 57 STEPPER MOTOR 56mm Body Low Noise 1.26N.m For Laser Marking 1

Operating Specifications

Step Angle: 1.8°

Maximum Temperature :80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range (%) :85% or less, non-condensing

Magnet Wire Insulation :Class B 130 deg C

Insulation Resistance :100M Ohm at 500 VDC

Dielectric Strength :500 VDC for 1 min

Torque Curves

Submodels

Model	Holding Torque	Step Angle	Length	Type of Shaft	Rated Current
57SHD4013-21B	0.6N.m	1.8°	41mm	D Shaft-21mm	1.0A
57SHD4415-21B	1.1N.m	1.8°	54mm	D Shaft-21mm	3.0A
57SHD4816-21B	2.0N.m	1.8°	76mm	D Shaft-21mm	3.0A
57SHD4913-21B	2.5N.m	1.8°	83mm	D Shaft-21mm	3.0A
57SHD4934-20B	3.0N.m	1.8°	100mm	D Shaft-20mm	3.0A

Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs

Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:

Encoder	Brake	Gearbox	Shaft

Please click the "Get a quote" button below to tell us your requirements.
