NEMA 23 TWO-PHASE 1.8° 57 STEPPER MOTOR 54MM BODY 2.8A ROBOT

NEMA 23 TWO-PHASE 1.8° 57 STEPPER MOTOR 54MM BODY 2.8A ROBOT

Nama merek:	Casun
Nomor Model:	57SHD4425-21BSH
MOQ:	1 buah
Harga:	$3.14-$5
Ketentuan Pembayaran:	D/A, T/T, L/C, D/P
Kemampuan Pasokan:	40000+Buah+Bulan

Informasi Rinci

Deskripsi Produk

Informasi Rinci

Tempat asal:

Cina

Sertifikasi:

CE,ROHS,ISO

Langkah Malaikat:

1,8°

Memegang Torsi:

1.26N.m

Saat ini:

2.8A

Panjang motor:

54mm

Batang:

Poros Ganda Panjang 21mm

Disesuaikan:

Motor dapat dirancang & diproduksi dengan permintaan khusus.

Kemasan rincian:

Karton: 36x29x14cm

Menyoroti:

2.8A NEMA 23 STEPPER MOTOR

54MM NEMA 23 STEPPER MOTOR

NEMA 23 STEPPER MOTOR for Robots

Deskripsi Produk

Supply various international accreditations for the tech and electronics sectors.

Provide “multiple international certifications” for high-tech industry and electronic industry equipment.

Features:

Supply various international accreditations for the tech and electronics sectors
We are open to contract manufacturing arrangements
Every stepper motor model is adaptable to various applications
Dealers are actively sought after
Provide “multiple international certifications” for high-tech industry and electronic industry equipment

Motor Specifications

Step Angel	1.8 °
Fram Size	57 mm
Number of Phase	2 Phase
Rated Current	2.8 A
Holding Torque	1.26N.m
Resistance	0.9ohm
Inductance	2.5mH
Rotor Inertia	300 g-cm²
Motor weight1	0.7 kg
Number of leads	4
Connection	Bipolar

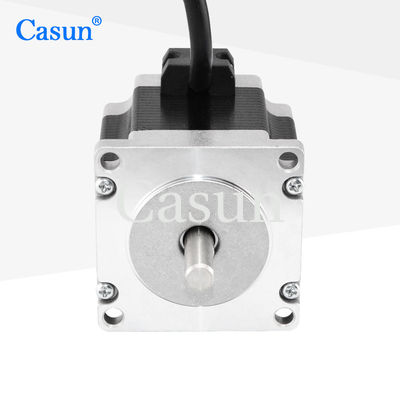

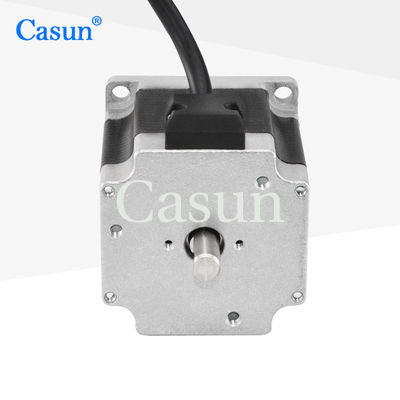

Appearance

NEMA 23 TWO-PHASE 1.8° 57 STEPPER MOTOR 54MM BODY 2.8A ROBOT 0

Dimensions

NEMA 23 TWO-PHASE 1.8° 57 STEPPER MOTOR 54MM BODY 2.8A ROBOT 1

Operating Specifications

Step Angle: 1.8°

Maximum Temperature :80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range (%) :85% or less, non-condensing

Magnet Wire Insulation :Class B 130 deg C

Insulation Resistance :100M Ohm at 500 VDC

Dielectric Strength :500 VDC for 1 min

Torque Curves

Submodels

Model	Holding Torque	Step Angle	Length	Type of Shaft	Rated Current
57SHD4013-21B	0.6N.m	1.8°	41mm	D Shaft-21mm	1.0A
57SHD4415-21B	1.1N.m	1.8°	54mm	D Shaft-21mm	3.0A
57SHD4816-21B	2.0N.m	1.8°	76mm	D Shaft-21mm	3.0A
57SHD4913-21B	2.5N.m	1.8°	83mm	D Shaft-21mm	3.0A
57SHD4934-20B	3.0N.m	1.8°	100mm	D Shaft-20mm	3.0A

Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs

Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:

Encoder	Brake	Gearbox	Shaft

Please click the "Get a quote" button below to tell us your requirements.
