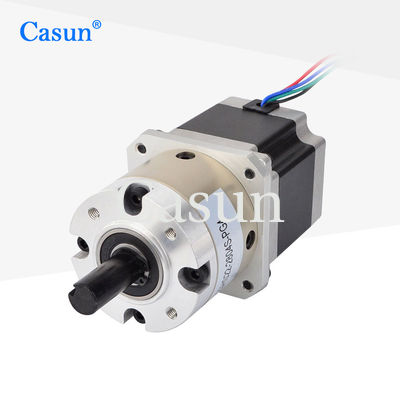

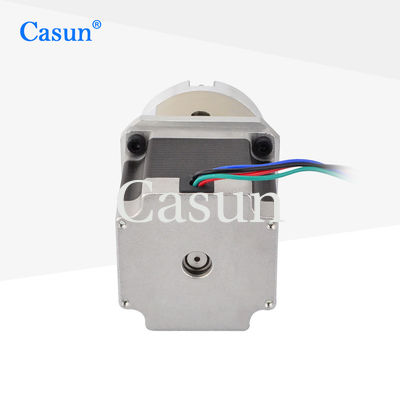

NEMA23 Ratio 4/1 Planetary Gearbox Stepper Motor With Gearbox For Cnc Mechanical Arm

NEMA23 Ratio 4/1 Planetary Gearbox Stepper Motor With Gearbox For Cnc Mechanical Arm

Nama merek:	Casun
Nomor Model:	57SHD4425-4G
MOQ:	1 buah
Harga:	$22.49-$27
Ketentuan Pembayaran:	D/A, T/T, L/C, D/P
Kemampuan Pasokan:	40000+Buah+Bulan

Informasi Rinci

Deskripsi Produk

Informasi Rinci

Tempat asal:

Cina

Sertifikasi:

CE,ROSH,ISO

Disesuaikan:

Motor dapat dirancang & diproduksi dengan permintaan khusus.

Tubuh:

54mm

Memegang Torsi:

1,25Nm

Nilai Saat Ini:

2.8A

Kemasan rincian:

Karton: 38x29x18cm

Menyoroti:

High Torque Planetary gearbox Stepper Motor

NEMA23 Planetary gearbox Stepper Motor

Deskripsi Produk

The stepper motor itself has the characteristic of open-loop control, which can achieve precise step angle control.

The deceleration stepper motor can provide sufficient force to drive heavy loads without causing motor overload or stall.

Features:

Versions in unipolar or bipolar are offered.
Deliver "multiple international certifications" for electrical and high-tech devices.
Our products are backed by a ten-year warranty, giving you peace of mind
Tailored solutions are our forte
Customizations on request

Dimensions

Motor Specifications

Step Angel	1.8 °
Fram Size	57 mm
Number of Phase	2 Phase
Rated Current	2.8 A
Holding Torque	1250mN.m
Resistance	0.9 hm
Inductance	2.5 mH
Rotor Inertia	260 g-cm²
Motor weight	1.1 kg
Gear Reduction Ratio	4.25:1
Connection	Bipolar

Operating Specifications

Motor

Step Angle: 1.8°

Maximum Temperature :80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range (%) :85% or less, non-condensing

Magnet Wire Insulation :Class B 130 deg C

Insulation Resistance :100M Ohm at 500 VDC

Dielectric Strength :500 VDC for 1 min

Gear Box

Housing Material:Metal

Bearing at Output:Ball Bearings

Max.Radial Load(12mm from flange):≤250N

Max.Shaft Axial Load:≤100N

Radial Play of Shaft (near to Flange):≤0.08m

Axial Play of Shaft:≤0.4mm

Backlash at No-load:≤2.5°

Torque Curves

Submodels

Motor Length	Length of Gearbox	Raio	Efficiency
41 mm 54 mm 76 mm 83 mm 100 mm	48 mm	3.6	90%
		4.25
	60 mm	12.96	80%
		15.3
		18.1
	72 mm	46.66	70%
		55.08
		65.025
		76.77

Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs

Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:
Encoder | Brake | Gearbox | Shaft

NEMA23 Ratio 4/1 Planetary Gearbox Stepper Motor With Gearbox For Cnc Mechanical Arm 1

Please click the "Get a quote" button below to tell us your requirements.
