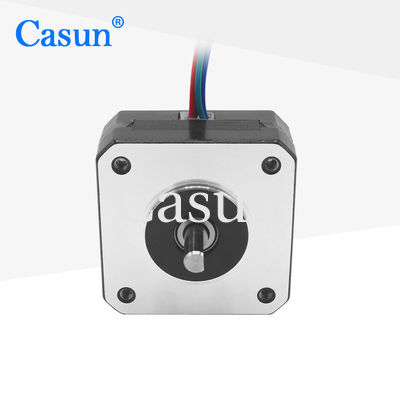

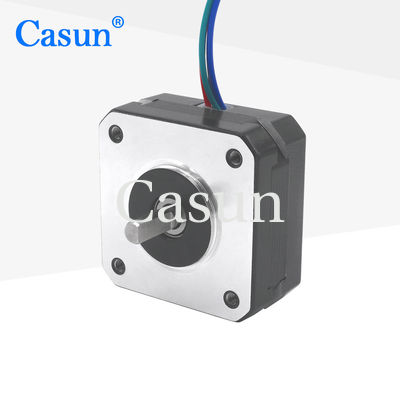

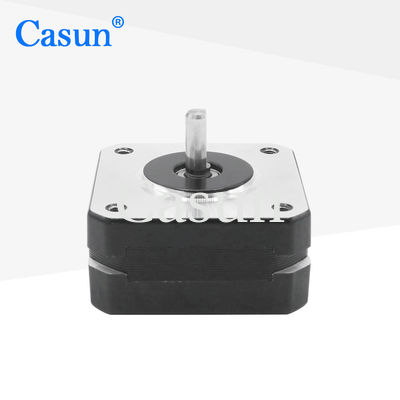

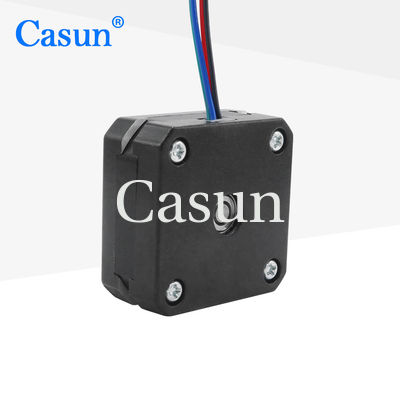

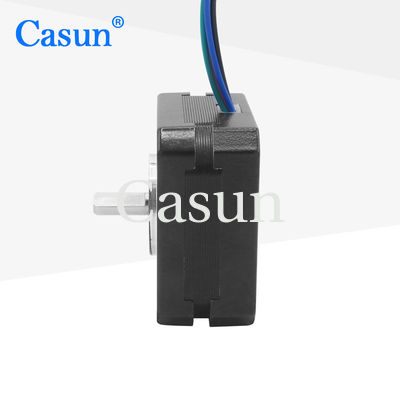

Nema 17 Stepper Motor 424220mm Ultrathin Body 1.0A 130mN.m For Medical Equipment

Nema 17 Stepper Motor 424220mm Ultrathin Body 1.0A 130mN.m For Medical Equipment

Nama merek:	Casun
Nomor Model:	17HS08-1004S1
MOQ:	1 buah
Harga:	$3.14-$5
Ketentuan Pembayaran:	D/A, T/T, L/C, D/P
Kemampuan Pasokan:	40000+Buah+Bulan

Informasi Rinci

Deskripsi Produk

Informasi Rinci

Tempat asal:

Cina

Sertifikasi:

CE,ROHS,ISO

Langkah Malaikat:

1.8

Memegang Torsi:

100mN.m

Saat ini:

0,8A

Panjang motor:

20mm

Batang:

Penggilingan Poros Datar Panjang 13,6mm

Disesuaikan:

Motor dapat dirancang & diproduksi dengan permintaan khusus.

Kemasan rincian:

Karton: 36x29x14cm

Menyoroti:

Nema 17 Stepper Motor 1.0A

Medical Equipment Nema 17 Stepper Motor

Nema 17 Stepper Motor 130mN.m

Deskripsi Produk

Stepper motors have strong resistance to power voltage fluctuations and electromagnetic interference, and can operate stably in harsh environments.

It is widely used in many applications such as 3D printers, CNC machine tools, etc.

Features:

Provide "multiple international certifications"
We have a proven track record of success, serving over 800 customers in China for the past 12 years
Our products deliver high torque and precision
Professional drivetrain solution specialist
Seeking distributors

Motor Specifications

Step Angel	1.8 °
Fram Size	42 mm
Number of Phase	2 Phase
Rated Current	0.8 A
Holding Torque	100 mN.m
Resistance	3.3 ohm
Inductance	3.0 mH
Rotor Inertia	15 g-cm²
Motor weight	0.14 kg
Number of leads	4
Connection	Bipolar

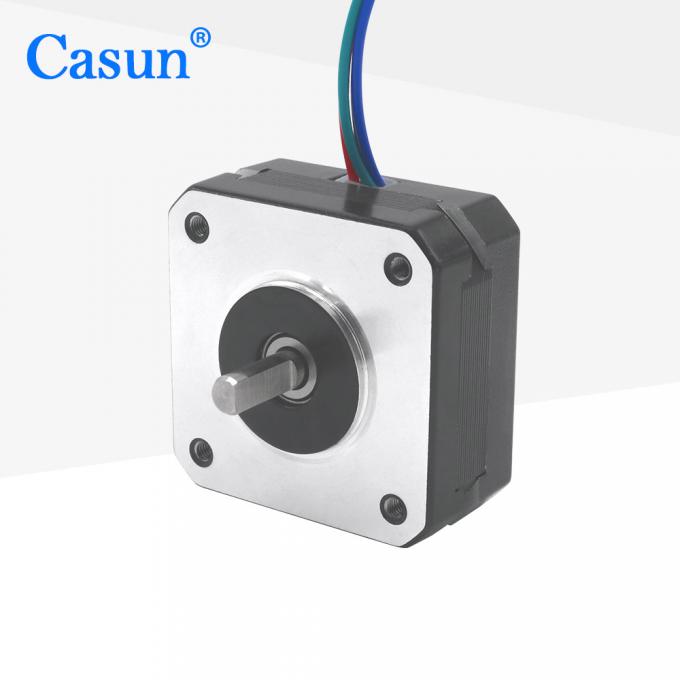

Appearance

Nema 17 Stepper Motor 42*42*20mm Ultrathin Body 1.0A 130mN.m For Medical Equipment 0

Dimensions

Nema 17 Stepper Motor 42*42*20mm Ultrathin Body 1.0A 130mN.m For Medical Equipment 1

Operating Specifications

Step Angle: 1.8°

Maximum Temperature :80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range (%) :85% or less, non-condensing

Magnet Wire Insulation :Class B 130 deg C

Insulation Resistance :100M Ohm at 500 VDC

Dielectric Strength :500 VDC for 1 min

Torque Curves

Submodels

Model	Holding Torque	Step Angle	Motor Length	Type of Shaft	Rated Current
42SHD4950	0.13N.m	1.8°	20mm	D Shaft-20mm	1.0A
42SHD4003	0.26N.m	1.8°	34mm	D Shaft-20mm	0.4A
42SHD0261	0.45N.m	1.8°	40mm	D Shaft-20mm	1.68A
42SHD4425	0.59N.m	1.8°	48mm	D Shaft-24mm	2.0A
42SHD4813	0.8N.m	1.8°	60mm	D Shaft-24mm	2.1A

Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs

Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:

Encoder	Brake	Gearbox	Shaft

Please click the "Get a quote" button below to tell us your requirements.
