4 Phase Hybrid NEMA 17 Stepper Motor 145mN.m 8 Wire For Optical Device

4 Phase Hybrid NEMA 17 Stepper Motor 145mN.m 8 Wire For Optical Device

Nama merek:	Casun
Nomor Model:	42SHD8909-24
MOQ:	1 buah
Harga:	$3.14-$5
Ketentuan Pembayaran:	D/A, T/T, L/C, D/P
Kemampuan Pasokan:	40000+Buah+Bulan

Informasi Rinci

Deskripsi Produk

Informasi Rinci

Tempat asal:

Cina

Sertifikasi:

CE,ROSH,ISO

Langkah Malaikat:

1,8°

Memegang Torsi:

145mN.m

Saat ini:

1.0A

Panjang motor:

23mm

Batang:

Poros Bulat Panjang 24mm

Disesuaikan:

Motor dapat dirancang & diproduksi dengan permintaan khusus.

Kemasan rincian:

Karton: 36x29x14cm

Menyoroti:

8 wire NEMA 17 Stepper Motor

145mN.m NEMA 17 Stepper Motor

1.0A NEMA 17 Stepper Motor

Deskripsi Produk

Suitable for high-end equipment and industrial scenarios, it can provide finer control and greater torque, making it an ideal choice for precise motion control.

There are 4 windings, and each phase also has two coils.

Features:

Customizations on request
Hybrid stepper construction
Available in single or double shaft versions
Our engineers will be in touch within 48 hours to provide the best solution
Each model of stepper motor can be suitable for different scenarios

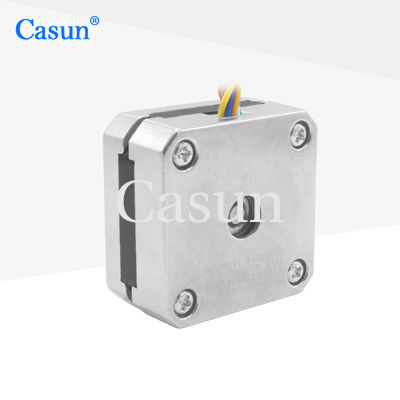

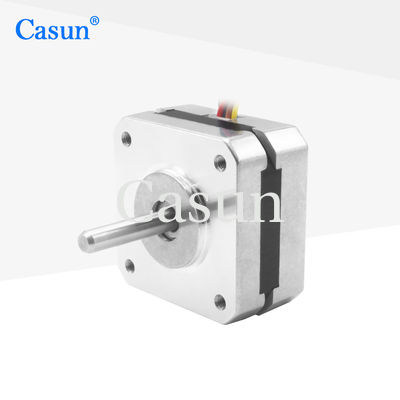

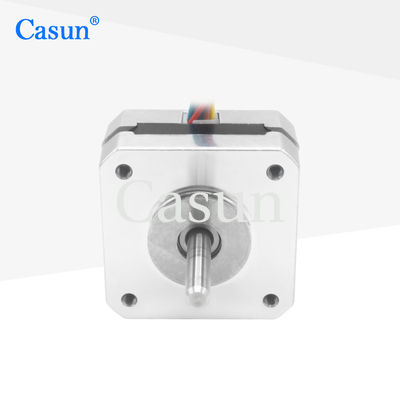

Appearance

4 Phase Hybrid NEMA 17 Stepper Motor 145mN.m 8 Wire For Optical Device 0

Dimensions

Motor Specifications

Step Angel	1.8 °
Fram Size	40 mm
Number of Phase	4 Phase
Rated Current	1.0 A
Holding Torque	145 mN.m
Resistance	3.2 ohm
Inductance	3.5 mH
Rotor Inertia	15 g-cm²
Motor weight	0.2 kg
Number of leads	8
Connection	Bipolar

Operating Specifications

Step Angle: 1.8°

Maximum Temperature :80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range (%) :85% or less, non-condensing

Magnet Wire Insulation :Class B 130 deg C

Insulation Resistance :100M Ohm at 500 VDC

Dielectric Strength :500 VDC for 1 min

Torque Curves

Submodels

Model	Holding Torque	Step Angle	Motor Length	Type of Shaft	Rated Current
42SHD4950	0.13N.m	1.8°	20mm	D Shaft-20mm	1.0A
42SHD4003	0.26N.m	1.8°	34mm	D Shaft-20mm	0.4A
42SHD0261	0.45N.m	1.8°	40mm	D Shaft-20mm	1.68A
42SHD4425	0.59N.m	1.8°	48mm	D Shaft-24mm	2.0A
42SHD4813	0.8N.m	1.8°	60mm	D Shaft-24mm	2.1A

Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs

Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:

Encoder	Brake	Gearbox	Shaft

Please click the "Get a quote" button below to tell us your requirements.
