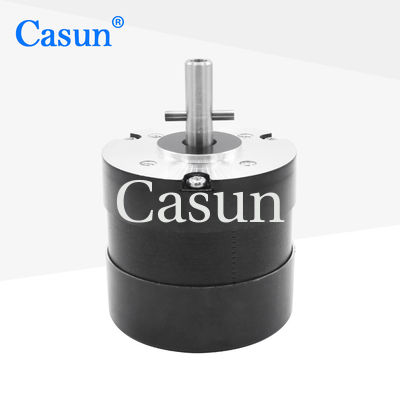

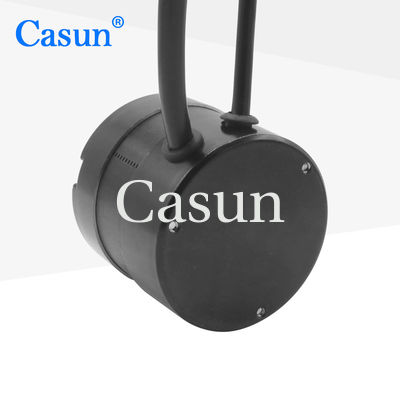

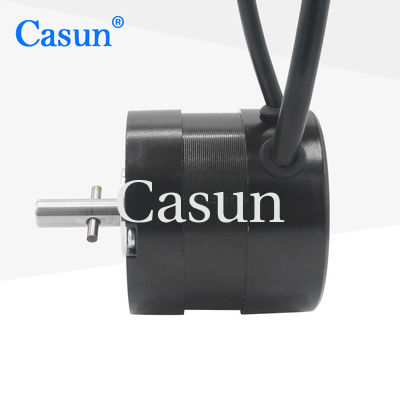

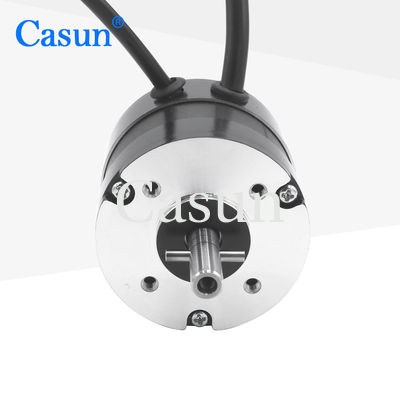

BLDC NEMA 23 Stepper Motor 51mm Body 63W 6000rpm With CE ISO

BLDC NEMA 23 Stepper Motor 51mm Body 63W 6000rpm With CE ISO

Nama merek:	Casun
Nomor Model:	57BL52R63-2460-25P
MOQ:	1 buah
Harga:	$3.14-$5
Ketentuan Pembayaran:	D/A, T/T, L/C, D/P
Kemampuan Pasokan:	40000+Buah+Bulan

Informasi Rinci

Deskripsi Produk

Informasi Rinci

Tempat asal:

Cina

Sertifikasi:

CE,ROHS,ISO

Jumlah lapisan:

Kecepatan Terukur:

6000rpm

Kecepatan Maks:

6500rpm

Panjang motor:

51mm

Disesuaikan:

Motor dapat dirancang & diproduksi dengan permintaan khusus.

Kemasan rincian:

Karton: 36x29x14cm

Menyoroti:

6000rpm BLDC NEMA 23 Stepper Motor

63W BLDC NEMA 23 Stepper Motor

Precise NEMA 23 Stepper Motor

Deskripsi Produk

Widely used in environments that require moisture and water resistance, such as outdoor equipment, medical devices, industrial automation, etc.

It can prevent electrical short circuits and other safety hazards, improving the overall safety of the equipment.

Features:

Experts in drivetrain solutions
Tailored solutions are our forte
We are experts in drivetrain solutions
Dealers are actively sought after
Expect a response from our engineers within 48 hours with the best solution for your needs

Motor Specifications

Fram Size	57 mm
Rated Current	4 A
MaTorque	0.3N.m
Resistance	6000rpm
Inductance	6500rpm
Rate Power	63 W
Rate Voltage	24 V
Number of poles	4
Insulation Class	Class B

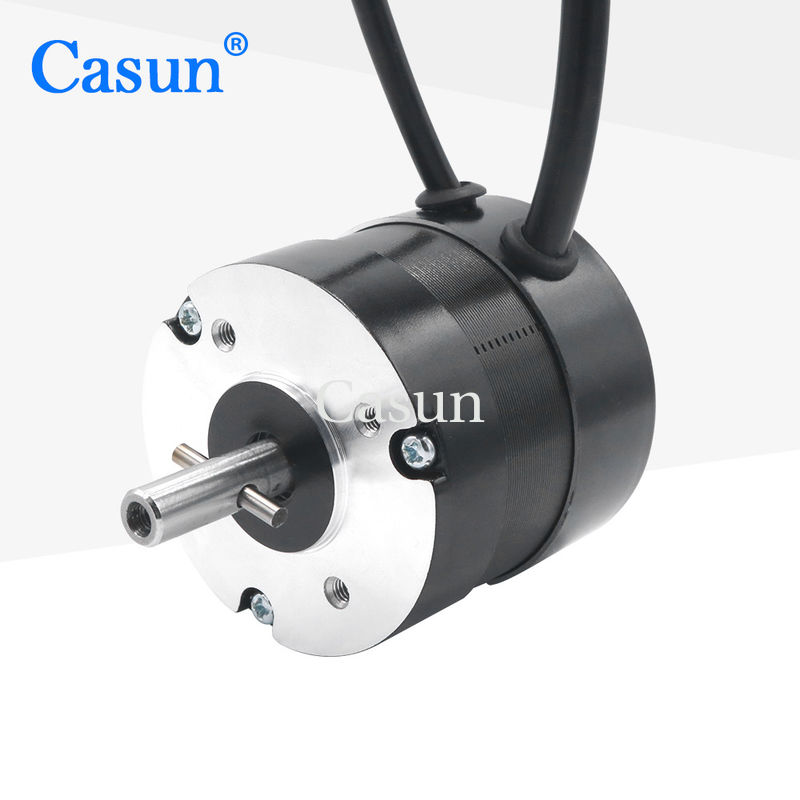

Appearance

BLDC NEMA 23 Stepper Motor 51mm Body 63W 6000rpm With CE ISO 0

Dimensions

BLDC NEMA 23 Stepper Motor 51mm Body 63W 6000rpm With CE ISO 1

Operating Specifications

Step Angle: 1.8°

Maximum Temperature :80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range (%) :85% or less, non-condensing

Magnet Wire Insulation :Class B 130 deg C

Insulation Resistance :100M Ohm at 500 VDC

Dielectric Strength :500 VDC for 1 min

Torque Curves

Submodels

Model	Holding Torque	Step Angle	Length	Type of Shaft	Rated Current
57SHD4013-21B	0.6N.m	1.8°	41mm	D Shaft-21mm	1.0A
57SHD4415-21B	1.1N.m	1.8°	54mm	D Shaft-21mm	3.0A
57SHD4816-21B	2.0N.m	1.8°	76mm	D Shaft-21mm	3.0A
57SHD4913-21B	2.5N.m	1.8°	83mm	D Shaft-21mm	3.0A
57SHD4934-20B	3.0N.m	1.8°	100mm	D Shaft-20mm	3.0A

Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs

Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:

Encoder	Brake	Gearbox	Shaft

Please click the "Get a quote" button below to tell us your requirements.
