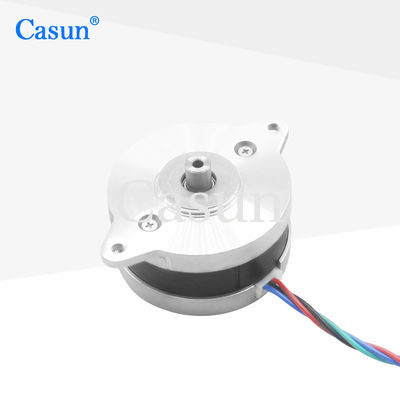

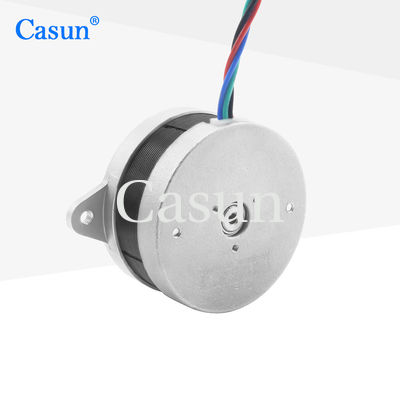

1.8 Degree 2 Phase 1.0A 100mN.m NEMA 14 Hybrid Stepper Motor With CE ISO

1.8 Degree 2 Phase 1.0A 100mN.m NEMA 14 Hybrid Stepper Motor With CE ISO

Nama merek:	Casun
Nomor Model:	36SHD4401-6K
MOQ:	1 buah
Harga:	$4.14-$6.98
Ketentuan Pembayaran:	D/A, T/T, L/C, D/P
Kemampuan Pasokan:	40000+Buah+Bulan

Informasi Rinci

Deskripsi Produk

Informasi Rinci

Tempat asal:

Cina

Sertifikasi:

CE,ROHS,ISO

Langkah Malaikat:

1,8°

Memegang Torsi:

100mN.m

Saat ini:

1.0A

Panjang motor:

18.6mm

Disesuaikan:

Motor dapat dirancang & diproduksi dengan permintaan khusus.

Kemasan rincian:

Karton: 36x29x14cm

Menyoroti:

100mN.m NEMA 14 Hybrid Stepper Motor

1.0A NEMA 14 Hybrid Stepper Motor

1.8 Degree NEMA 14 Stepper Motor

Deskripsi Produk

Capable of stable operation in different working environments, including high temperature, low temperature, and humidity, with strong adaptability.

Made with high-quality materials and processes, it has strong durability and anti-interference ability.

Features:

We welcome contract manufacturing projects
Offer specialised services
Available in single or double shaft versions
Our stepper motors are versatile and adaptable to various applications
We provide custom services and undertake contract manufacturing

Motor Specifications

Step Angel	1.8 °
Fram Size	36 mm
Number of Phase	2 Phase
Rated Current	1.0 A
Holding Torque	100 mN.m
Resistance	2.15 ohm
Inductance	8.0 mH
Rotor Inertia	13.7 g-cm²
Motor weight	0.07 kg
Number of leads	4
Connection	Bipolar

Appearance

Dimensions

Torque Curves

Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs

Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:
Encoder | Brake | Gearbox | Connector

Please click the "Get a quote" button below to tell us your requirements.
