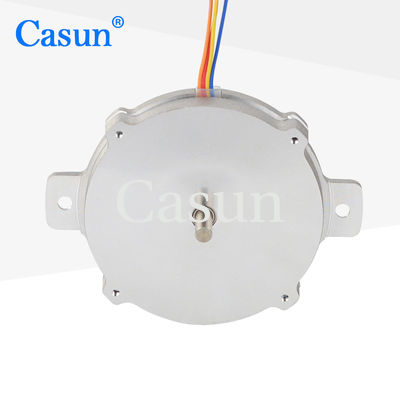

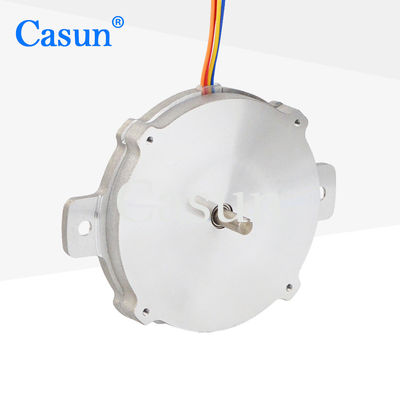

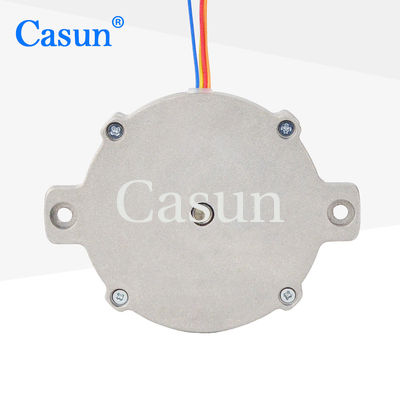

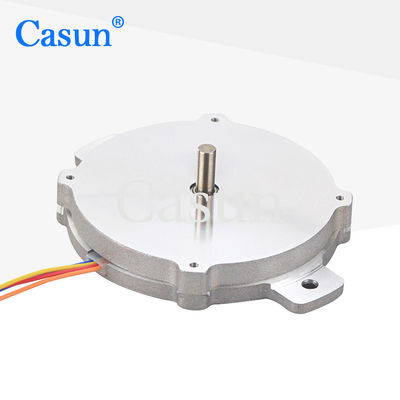

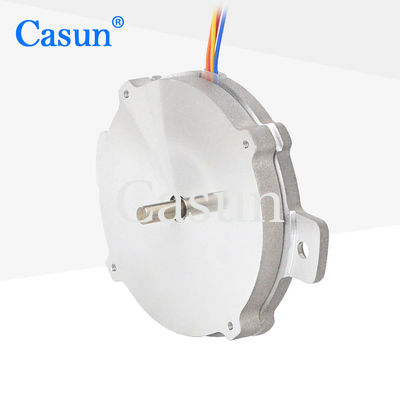

NEMA 23 Ultra Thin Stepper Motor Fast Acceleration For FUJI XPF Accessories YAMAHA

NEMA 23 Ultra Thin Stepper Motor Fast Acceleration For FUJI XPF Accessories YAMAHA

Nama merek:	Casun
Nomor Model:	57SHY4001-10S
MOQ:	1 buah
Harga:	$12.3-$13.84
Ketentuan Pembayaran:	D/A, T/T, L/C, D/P
Kemampuan Pasokan:	40000+Buah+Bulan

Informasi Rinci

Deskripsi Produk

Informasi Rinci

Tempat asal:

Cina

Sertifikasi:

CE,ROHS,ISO

Disesuaikan:

Motor dapat dirancang & diproduksi dengan permintaan khusus.

Tubuh:

9.6mm

Nilai Saat Ini:

0,8A

Nilai Tegangan:

2.8V

Massa:

75 gram

Kemasan rincian:

Karton: 36x29x14cm

Menyoroti:

YAMAHA stepper motor

FUJI XPF accessories stepper motor

NEMA 23 ultra thin stepper motor

Deskripsi Produk

Thin and flat stepper motors are compact in size and structure, making them easy to integrate into limited spaces.

Machines are widely used in various fields such as printers, scanners, automation equipment, robots, medical equipment, etc.

Features:

Bipolar or unipolar versions available
Our products deliver high torque and precision
Our manufacturing process is backed by professional research and developmen
CE and RoHS approved
Customizations on request

Dimensions

Motor Specifications

Step Angel	1.8 °
Fram Size	57mm
Number of Phase	2 Phase
Rated Current	0.8A
Holding Torque	60mN.m
Resistance	3.5 om
Inductance	1.8mH
Rotor Inertia	15 g-cm²
Motor weight	75g
Number of leads	4
Connection	Bipolar

Operating Specifications

Step Angle: 1.8°

Maximum Temperature :80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range (%) :85% or less, non-condensing

Magnet Wire Insulation :Class B 130 deg C

Insulation Resistance :100M Ohm at 500 VDC

Dielectric Strength :500 VDC for 1 min

Torque Curves

Submodels

Model No	Step Angle(°)	Rated Voltage(V)	Rated Current (A)	Phase Resistance(Ω)	Phase Inductance (mH)	Holding Torque (Kg.cm)	Detent Torque(g.cm Max)	Rotor Inertia (g.cm²)	Motor Length (mm)	Motor Weight(Kg)
57SHY4001-2A	1.8°	2.8V	0.8A	3.5ohm	1.8mH	60mN.m	8mN.m	15	57	0.075
57SHY4301-2A-0	1.8°	2.28V	1.2A	1.9ohm	1.2mH	125mN.m	8mN.m	18	57	0.09
57SHY4001-10K	1.8°	2.8V	0.8A	3.5ohm	1.8mH	60mN.m	8mN.m	15	57	0.075
57SHY4001-10S	1.8°	2.8V	0.8A	3.5ohm	1.8mH	60mN.m	8mN.m	15	57	0.075
57SHY4604-21A	1.8°	14V	1A	14ohm	30mH	690mN.m	30mN.m	120	57	0.52

Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs

Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:
Encoder | Brake | Gearbox | Shaft

NEMA 23 Ultra Thin Stepper Motor Fast Acceleration For FUJI XPF Accessories YAMAHA 1

Please click the "Get a quote" button below to tell us your requirements.
