NEMA 23 Stepper Motor Hybrid 1.75N.m 76mm body for CNC machine tools

NEMA 23 Stepper Motor Hybrid 1.75N.m 76mm body for CNC machine tools

Nama merek:	Casun
Nomor Model:	57SHD4231-21
MOQ:	1 buah
Harga:	$3.14-$5
Ketentuan Pembayaran:	D/A, T/T, L/C, D/P
Kemampuan Pasokan:	40000+Buah+Bulan

Informasi Rinci

Deskripsi Produk

Informasi Rinci

Tempat asal:

Cina

Sertifikasi:

CE,ROHS,ISO

Langkah Malaikat:

1,8°

Memegang Torsi:

1,1 Nm

Saat ini:

2.5a

Panjang motor:

50mm

Batang:

Poros Bulat Panjang 21mm

Disesuaikan:

Motor dapat dirancang & diproduksi dengan permintaan khusus.

Kemasan rincian:

Karton: 36x29x14cm

Menyoroti:

CNC NEMA 23 Stepper Motor

76mm NEMA 23 Stepper Motor

1.75N.m NEMA 23 Stepper Motor

Deskripsi Produk

Stepper motors have strong resistance to power grid fluctuations and electromagnetic interference, making them suitable for use in industrial environments.

In CNC machine tools, stepper motors can achieve precise positioning and fast response, improving the machining accuracy and efficiency of the machine tool.

Features:

Experts in drivetrain solutions
Supply various international accreditations for the tech and electronics sectors
Each model of stepper motor can be suitable for different scenarios
Dealers are actively sought after
Our stepper motors are versatile and adaptable to various applications

Motor Specifications

Step Angel	1.8 °
Fram Size	57 mm
Number of Phase	2 Phase
Rated Current	2.5 A
Holding Torque	1.1 N.m
Resistance	1.05 ohm
Inductance	3.3 mH
Rotor Inertia	220 g-cm²
Motor weight1	0.62 kg
Number of leads	4
Connection	Bipolar

Appearance

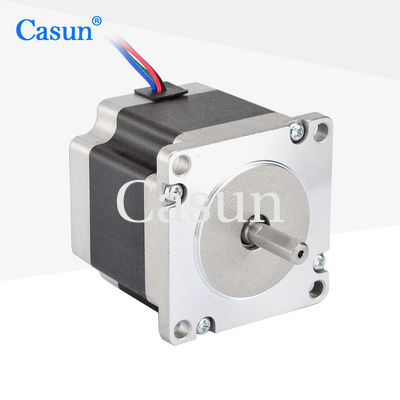

NEMA 23 Stepper Motor Hybrid 1.75N.m 76mm body for CNC machine tools 0

Dimensions

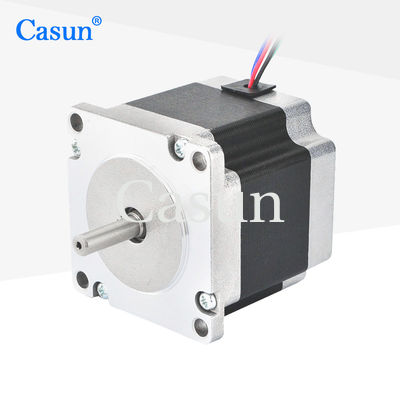

NEMA 23 Stepper Motor Hybrid 1.75N.m 76mm body for CNC machine tools 1

Operating Specifications

Step Angle: 1.8°

Maximum Temperature :80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range (%) :85% or less, non-condensing

Magnet Wire Insulation :Class B 130 deg C

Insulation Resistance :100M Ohm at 500 VDC

Dielectric Strength :500 VDC for 1 min

Torque Curves

Submodels

Model	Holding Torque	Step Angle	Length	Type of Shaft	Rated Current
57SHD4013-21B	0.6N.m	1.8°	41mm	D Shaft-21mm	1.0A
57SHD4415-21B	1.1N.m	1.8°	54mm	D Shaft-21mm	3.0A
57SHD4816-21B	2.0N.m	1.8°	76mm	D Shaft-21mm	3.0A
57SHD4913-21B	2.5N.m	1.8°	83mm	D Shaft-21mm	3.0A
57SHD4934-20B	3.0N.m	1.8°	100mm	D Shaft-20mm	3.0A

Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs

Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:

Encoder	Brake	Gearbox	Shaft

Please click the "Get a quote" button below to tell us your requirements.
