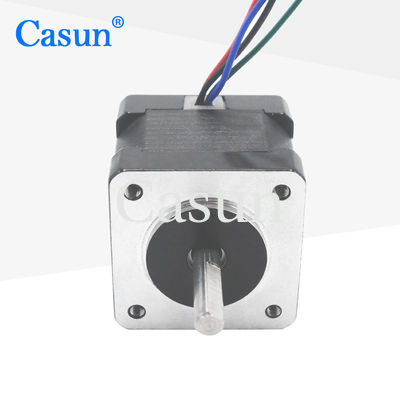

NEMA 14 4 Wires Step Motor Double Shaft Hybrid Kit 0.14Nm 1.0A Stepper Motor For Robot

NEMA 14 4 Wires Step Motor Double Shaft Hybrid Kit 0.14Nm 1.0A Stepper Motor For Robot

Nama merek:	Casun
Nomor Model:	P35SHD4113-21SH
MOQ:	1 buah
Harga:	$4.14-$6.98
Ketentuan Pembayaran:	D/A, T/T, L/C, D/P
Kemampuan Pasokan:	40000+Buah+Bulan

Informasi Rinci

Deskripsi Produk

Informasi Rinci

Tempat asal:

Cina

Sertifikasi:

CE,ROSH,ISO

Langkah Malaikat:

1,8°

Memegang Torsi:

60mN.m

Saat ini:

0.4a

Panjang motor:

20mm

Batang:

Poros Bulat Panjang 15mm

Disesuaikan:

Motor dapat dirancang & diproduksi dengan permintaan khusus.

Kemasan rincian:

Karton: 36x29x14cm

Menyoroti:

1.0A NEMA 14 Stepper Motor

Hybrid Kit NEMA 14 Stepper Motor

0.14Nm NEMA 14 Stepper Motor

Deskripsi Produk

The dual output shaft structure can better balance the load and reduce the wear of bearings and mechanical components.

Suitable for various mechanical structures and application scenarios, such as robots, CNC machines, 3D printers, etc.

Features:

Bipolar or unipolar versions available
High accuracy and torque
Available in single or double shaft versions
We specialize in custom solutions
Custom solutions and contract manufacturing are available. We are seeking dealers!

Motor Specifications

Step Angel	1.8 °
Fram Size	35 mm
Number of Phase	2 Phase
Rated Current	1.0 A
Holding Torque	140 mN.m
Resistance	2.7 ohm
Inductance	4.3 mH
Rotor Inertia	14 g-cm²
Motor weight	0.2 kg
Number of leads	4
Connection	Bipolar

Appearance

Dimensions

Torque Curves

Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs

Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:
Encoder | Brake | Gearbox | Connector

Please click the "Get a quote" button below to tell us your requirements.
