1.8° Hybrid NEMA 23 Stepper Motor 1.01N.m 2.8A For Medical Devices

1.8° Hybrid NEMA 23 Stepper Motor 1.01N.m 2.8A For Medical Devices

Nama merek:	Casun
Nomor Model:	57SHD0212-21B1
MOQ:	1 buah
Harga:	$3.14-$5
Ketentuan Pembayaran:	D/A, T/T, L/C, D/P
Kemampuan Pasokan:	40000+Buah+Bulan

Informasi Rinci

Deskripsi Produk

Informasi Rinci

Tempat asal:

Cina

Sertifikasi:

CE,ROHS,ISO

Langkah Malaikat:

1,8°

Memegang Torsi:

1010mN.m

Saat ini:

2.8A

Panjang motor:

50mm

Batang:

Penggilingan Poros Datar Panjang 21mm

Diameter Poros:

6.35mm

Disesuaikan:

Motor dapat dirancang & diproduksi dengan permintaan khusus.

Kemasan rincian:

Karton: 36x29x14cm

Menyoroti:

1.01N.m NEMA 23 Stepper Motor

1.8° Hybrid NEMA 23 Stepper Motor

2.8A NEMA 23 Stepper Motor

Deskripsi Produk

NEMA 23 stepper motors are suitable for various industries and fields, such as industrial automation, robotics, 3D printing, medical devices, etc.

It can be driven through a simple open-loop control method without the need for complex feedback systems.

Features:

High torque and high precision
accept contract manufacturing
Professional drivetrain solution specialist
Specialists in professional drivetrain solutions
Each model of stepper motor can be suitable for different scenarios

Motor Specifications

Step Angel	1.8 °
Fram Size	57 mm
Number of Phase	2 Phase
Rated Current	2.8 A
Holding Torque	1010 mN.m
Resistance	0.83 ohm
Inductance	2.2 mH
Rotor Inertia	220 g-cm²
Motor weight	0.55 kg
Number of leads	4
Connection	Bipolar

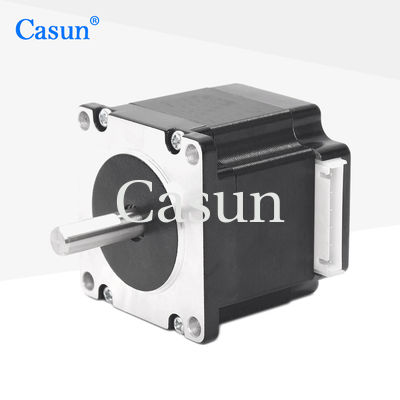

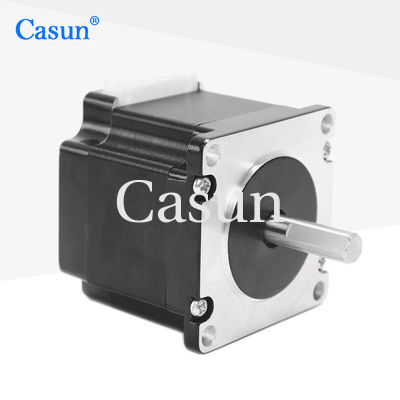

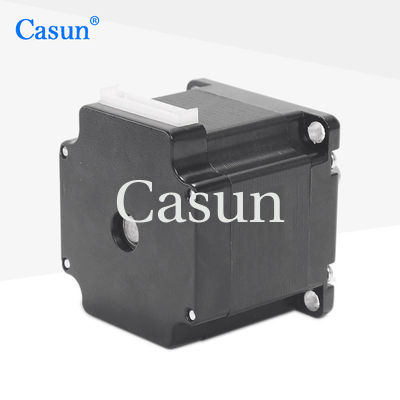

Appearance

1.8° Hybrid NEMA 23 Stepper Motor 1.01N.m 2.8A For Medical Devices 0

Dimensions

1.8° Hybrid NEMA 23 Stepper Motor 1.01N.m 2.8A For Medical Devices 1

Operating Specifications

Step Angle: 1.8°

Maximum Temperature :80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range (%) :85% or less, non-condensing

Magnet Wire Insulation :Class B 130 deg C

Insulation Resistance :100M Ohm at 500 VDC

Dielectric Strength :500 VDC for 1 min

Torque Curves

Submodels

Model	Holding Torque	Step Angle	Length	Type of Shaft	Rated Current
57SHD4013-21B	0.6N.m	1.8°	41mm	D Shaft-21mm	1.0A
57SHD4415-21B	1.1N.m	1.8°	54mm	D Shaft-21mm	3.0A
57SHD4816-21B	2.0N.m	1.8°	76mm	D Shaft-21mm	3.0A
57SHD4913-21B	2.5N.m	1.8°	83mm	D Shaft-21mm	3.0A
57SHD4934-20B	3.0N.m	1.8°	100mm	D Shaft-20mm	3.0A

Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs

Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:

Encoder	Brake	Gearbox	Shaft

Please click the "Get a quote" button below to tell us your requirements.
