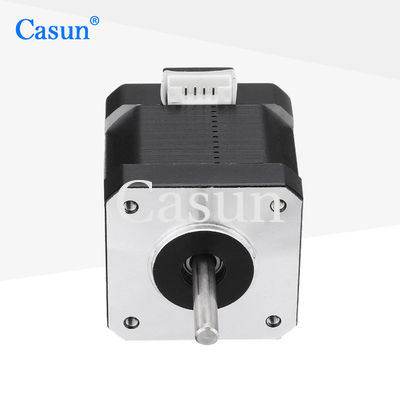

Dual Shaft Nema 17 Stepper Motor Bipolar 1.8 Deg 45Ncm 63.7oz.in 1.68A 4 Wires For 3D DIY CNC

Dual Shaft Nema 17 Stepper Motor Bipolar 1.8 Deg 45Ncm 63.7oz.in 1.68A 4 Wires For 3D DIY CNC

Nama merek:	Casun
Nomor Model:	42SHD0261-24SH1
MOQ:	1 buah
Harga:	$3.14-$5
Ketentuan Pembayaran:	D/A, T/T, L/C, D/P
Kemampuan Pasokan:	40000+Buah+Bulan

Informasi Rinci

Deskripsi Produk

Informasi Rinci

Tempat asal:

Cina

Sertifikasi:

CE,ROHS,ISO

Langkah Malaikat:

1,8°

Memegang Torsi:

450mN.m

Saat ini:

1,68A

Panjang motor:

1000

Batang:

Poros Ganda Panjang 24mm

Disesuaikan:

Motor dapat dirancang & diproduksi dengan permintaan khusus.

Kemasan rincian:

Karton: 36x29x14cm

Menyoroti:

45Ncm Dual Shaft Stepper Motor

1.8 deg Dual Shaft Stepper Motor

1.68A Dual Shaft Stepper Motor

Deskripsi Produk

The dual axis design can better achieve dual axis synchronous control and improve the positioning accuracy of the system.

Due to the mutual influence of the movements of the two axes, the dual output shaft stepper motor is more stable during operation.

Features:

Expertise in professional research and development manufacturing
For high-tech industry and electronic industry equipment
A ten-year warranty for confident purchasing
We offer personalized services and accept manufacturing contracts
We are a professional manufacturer engaged in research and development

Appearance

Dual Shaft Nema 17 Stepper Motor Bipolar 1.8 Deg 45Ncm 63.7oz.in 1.68A 4 Wires For 3D DIY CNC 0

Dimensions

Dual Shaft Nema 17 Stepper Motor Bipolar 1.8 Deg 45Ncm 63.7oz.in 1.68A 4 Wires For 3D DIY CNC 1

Motor Specifications

Step Angel	1.8 °
Fram Size	42 mm
Number of Phase	2 Phase
Rated Current	1.68 A
Holding Torque	450 mN.m
Resistance	1.95 ohm
Inductance	4.4 mH
Rotor Inertia	57 g-cm²
Motor weight	0.3 kg
Number of leads	4
Connection	Bipolar

Operating Specifications

Step Angle: 1.8°

Maximum Temperature :80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range (%) :85% or less, non-condensing

Magnet Wire Insulation :Class B 130 deg C

Insulation Resistance :100M Ohm at 500 VDC

Dielectric Strength :500 VDC for 1 min

Torque Curves

Submodels

Model	Holding Torque	Step Angle	Motor Length	Type of Shaft	Rated Current
42SHD4950	0.13N.m	1.8°	20mm	D Shaft-20mm	1.0A
42SHD4003	0.26N.m	1.8°	34mm	D Shaft-20mm	0.4A
42SHD0261	0.45N.m	1.8°	40mm	D Shaft-20mm	1.68A
42SHD4425	0.59N.m	1.8°	48mm	D Shaft-24mm	2.0A
42SHD4813	0.8N.m	1.8°	60mm	D Shaft-24mm	2.1A

Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs

Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:

Encoder	Brake	Gearbox	Shaft

Please click the "Get a quote" button below to tell us your requirements.
