Hybrid NEMA 17 Stepper Motor 0.42N.m with CE for Graph Plotter

Hybrid NEMA 17 Stepper Motor 0.42N.m with CE for Graph Plotter

Nama merek:	Casun
Nomor Model:	42SHD4202-24
MOQ:	1 buah
Harga:	$3.14-$5
Ketentuan Pembayaran:	D/A, T/T, L/C, D/P
Kemampuan Pasokan:	40000+Buah+Bulan

Informasi Rinci

Deskripsi Produk

Informasi Rinci

Tempat asal:

Cina

Sertifikasi:

CE,ROSH,ISO

Langkah Malaikat:

1,8°

Memegang Torsi:

420mN.m

Saat ini:

0,5A

Panjang motor:

1000

Batang:

Poros Bulat Panjang 24mm

Disesuaikan:

Motor dapat dirancang & diproduksi dengan permintaan khusus.

Kemasan rincian:

Karton: 36x29x14cm

Menyoroti:

Hybrid NEMA 17 Stepper Motor

0.42N.m NEMA 17 Stepper Motor

Graph Plotter NEMA 17 Stepper Motor

Deskripsi Produk

The NEMA 17 stepper motor adopts reliable structural design and materials, with a long service life and stable performance.

They are easy to produce and assemble, making them an economical choice for many applications.

Features:

Customizations on request
Hybrid stepper construction
Available in single or double shaft versions
Customized services are available, and we engage in contract manufacturing
A ten-year warranty is offered, so buy with peace of mind

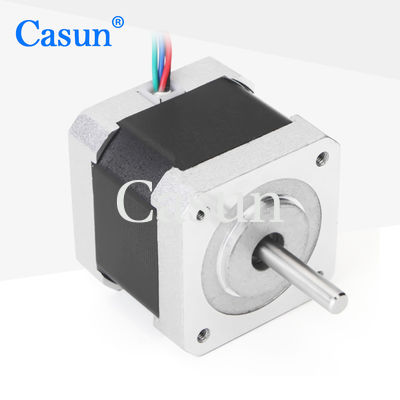

Appearance

Hybrid NEMA 17 Stepper Motor 0.42N.m with CE for Graph Plotter 0

Dimensions

Motor Specifications

Step Angel	1.8 °
Fram Size	40 mm
Number of Phase	2 Phase
Rated Current	0.5 A
Holding Torque	420 mN.m
Resistance	25 ohm
Inductance	50 mH
Rotor Inertia	57 g-cm²
Motor weight	0.24 kg
Number of leads	4
Connection	Bipolar

Operating Specifications

Step Angle: 1.8°

Maximum Temperature :80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range (%) :85% or less, non-condensing

Magnet Wire Insulation :Class B 130 deg C

Insulation Resistance :100M Ohm at 500 VDC

Dielectric Strength :500 VDC for 1 min

Torque Curves

Submodels

Model	Holding Torque	Step Angle	Motor Length	Type of Shaft	Rated Current
42SHD4950	0.13N.m	1.8°	20mm	D Shaft-20mm	1.0A
42SHD4003	0.26N.m	1.8°	34mm	D Shaft-20mm	0.4A
42SHD0261	0.45N.m	1.8°	40mm	D Shaft-20mm	1.68A
42SHD4425	0.59N.m	1.8°	48mm	D Shaft-24mm	2.0A
42SHD4813	0.8N.m	1.8°	60mm	D Shaft-24mm	2.1A

Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs

Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:

Encoder	Brake	Gearbox	Shaft

Please click the "Get a quote" button below to tell us your requirements.
