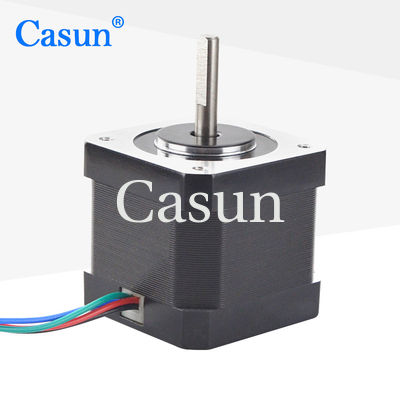

NEMA 17 Stepper Motor 42×42×40mm 0.45N.m with CE ISO for 3D printer

NEMA 17 Stepper Motor 42×42×40mm 0.45N.m with CE ISO for 3D printer

Nama merek:	Casun
Nomor Model:	42SHD4261-20 jam
MOQ:	1 buah
Harga:	$3.14-$5
Ketentuan Pembayaran:	D/A, T/T, L/C, D/P
Kemampuan Pasokan:	40000+Buah+Bulan

Informasi Rinci

Deskripsi Produk

Informasi Rinci

Tempat asal:

Cina

Sertifikasi:

CE,ROSH,ISO

Langkah Malaikat:

1,8°

Memegang Torsi:

450mN.m

Saat ini:

1,68A

Panjang motor:

1000

Batang:

Poros Bulat Panjang 24mm

Disesuaikan:

Motor dapat dirancang & diproduksi dengan permintaan khusus.

Kemasan rincian:

Karton: 36x29x14cm

Menyoroti:

0.45N.m NEMA 17 Stepper Motor

42×42×40mm NEMA 17 Stepper Motor

3D printer NEMA 17 Stepper Motor

Deskripsi Produk

The simple structure and reliability make it an ideal choice for many applications.

Suitable for applications that require rapid movement, such as printers, textile machinery, etc.

Features:

Bipolar or unipolar versions available
Hybrid stepper construction
Available in single or double shaft versions
Recruiting enthusiastic distributors!
Provide “multiple international certifications” for high-tech industry and electronic industry equipment

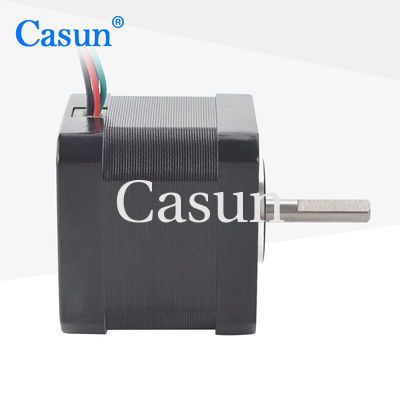

Appearance

NEMA 17 Stepper Motor 42×42×40mm 0.45N.m with CE ISO for 3D printer 0

Dimensions

Motor Specifications

Step Angel	1.8 °
Fram Size	40 mm
Number of Phase	2 Phase
Rated Current	1.68 A
Holding Torque	450 mN.m
Resistance	2.0 ohm
Inductance	4.4 mH
Rotor Inertia	57 g-cm²
Motor weight	0.3 kg
Number of leads	4
Connection	Bipolar

Operating Specifications

Step Angle: 1.8°

Maximum Temperature :80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range (%) :85% or less, non-condensing

Magnet Wire Insulation :Class B 130 deg C

Insulation Resistance :100M Ohm at 500 VDC

Dielectric Strength :500 VDC for 1 min

Torque Curves

Submodels

Model	Holding Torque	Step Angle	Motor Length	Type of Shaft	Rated Current
42SHD4950	0.13N.m	1.8°	20mm	D Shaft-20mm	1.0A
42SHD4003	0.26N.m	1.8°	34mm	D Shaft-20mm	0.4A
42SHD0261	0.45N.m	1.8°	40mm	D Shaft-20mm	1.68A
42SHD4425	0.59N.m	1.8°	48mm	D Shaft-24mm	2.0A
42SHD4813	0.8N.m	1.8°	60mm	D Shaft-24mm	2.1A

Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs

Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:

Encoder	Brake	Gearbox	Shaft

Please click the "Get a quote" button below to tell us your requirements.
