40mm 2 Phase 12V NEMA 17 Stepper Motor with -20 deg C to 50 deg C Ambient Temperature

40mm 2 Phase 12V NEMA 17 Stepper Motor with -20 deg C to 50 deg C Ambient Temperature

Nama merek:	Casun
Nomor Model:	42SHD0231-24
MOQ:	1 buah
Harga:	$4-$8
Ketentuan Pembayaran:	D/A, T/T, L/C, D/P
Kemampuan Pasokan:	40000+Buah+Bulan

Informasi Rinci

Deskripsi Produk

Informasi Rinci

Tempat asal:

Cina

Sertifikasi:

CE,ROSH,ISO

Langkah Malaikat:

1,8°

Memegang Torsi:

300 mN.m

Saat ini:

0,6A

Panjang motor:

1000

Batang:

Panjang 24mm

Voltase:

Disesuaikan:

Motor dapat dirancang & diproduksi dengan permintaan khusus.

Inersia rotor:

57 gram cm^2

Nilai Tegangan:

6 v

Berat:

0,24kg

Torsi Penahan:

15mN.m

Panjang Poros:

24 mm

Jumlah Prospek:

Fase:

Nilai Saat Ini:

0,6 A

Induktansi Fasa:

20 mH

Diameter Poros:

5 mm

Sudut langkah:

1,8 derajat

Kemasan rincian:

Karton: 36x29x14cm

Menyoroti:

40mm NEMA 17 Stepper Motor

12V NEMA 17 Stepper Motor

2 Phase NEMA 17 Stepper Motor

Deskripsi Produk

0.6A Motori per stadi 40mm 2 Phase 1.8degree Hybrid 6V NEMA 17 Hybrid Stepper Motor

The 42mm Hybrid Stepper Motor Series offers powerful holding torque in a variety of sizes.

Use with a microstepping driver to reduce vibration and achieve higher step resolution.

Choose a baseline version or request your own customized configuration.

Features:

Bipolar or unipolar versions available
Hybrid stepper construction
Available in single or double shaft versions
CE and RoHS approved
Customizations on request

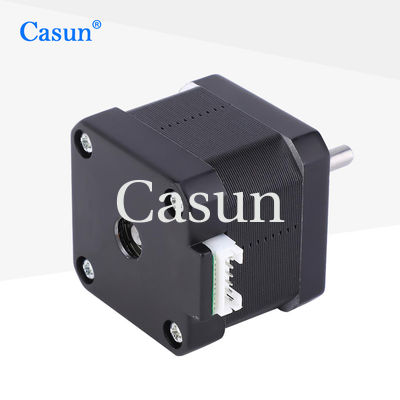

Appearance

40mm 2 Phase 12V NEMA 17 Stepper Motor with -20 deg C to 50 deg C Ambient Temperature 0

Dimensions

Motor Specifications

Step Angel	1.8 °
Fram Size	40 mm
Number of Phase	2 Phase
Rated Current	0.6 A
Holding Torque	300 mN.m
Resistance	10 ohm
Inductance	20 mH
Rotor Inertia	57 g-cm²
Motor weight	0.24 kg
Number of leads	4
Connection	unipolar

Operating Specifications

Step Angle: 1.2°

Maximum Temperature :80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range (%) :85% or less, non-condensing

Magnet Wire Insulation :Class B 130 deg C

Insulation Resistance :100M Ohm at 500 VDC

Dielectric Strength :500 VDC for 1 min

Torque Curves

Submodels

Model	Holding Torque	Step Angle	Motor Length	Type of Shaft	Rated Current
42SHD4950	0.13N.m	1.8°	20mm	D Shaft-20mm	1.0A
42SHD4003	0.26N.m	1.8°	34mm	D Shaft-20mm	0.4A
42SHD0261	0.45N.m	1.8°	40mm	D Shaft-20mm	1.68A
42SHD4425	0.59N.m	1.8°	48mm	D Shaft-24mm	2.0A
42SHD4813	0.8N.m	1.8°	60mm	D Shaft-24mm	2.1A

Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs

Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:

Encoder	Brake	Gearbox	Shaft

Please click the "Get a quote" button below to tell us your requirements.
