Nema 23 Bipolar 1.8deg 1.2Nm (170oz.in) 57x57x54mm 4 Wires Stepper Motor For XYZ Axis CNC

Nema 23 Bipolar 1.8deg 1.2Nm (170oz.in) 57x57x54mm 4 Wires Stepper Motor For XYZ Axis CNC

Nama merek:	Casun
Nomor Model:	57SHD4407-28 jam
MOQ:	1 buah
Harga:	$3.14-$5
Ketentuan Pembayaran:	D/A, T/T, L/C, D/P
Kemampuan Pasokan:	40000+Buah+Bulan

Informasi Rinci

Deskripsi Produk

Informasi Rinci

Tempat asal:

Cina

Sertifikasi:

CE,ROHS,ISO

Langkah Malaikat:

1,8°

Memegang Torsi:

1,2Nm

Saat ini:

2.0a

Panjang motor:

54mm

Batang:

Penggilingan Poros Datar Panjang 28mm

Disesuaikan:

Motor dapat dirancang & diproduksi dengan permintaan khusus.

Kemasan rincian:

Karton: 36x29x14cm

Menyoroti:

57x57x54mm Nema 23 Bipolar Stepper Motor

1.2Nm Nema 23 Bipolar Stepper Motor

1.8deg Nema 23 Bipolar Stepper Motor

Deskripsi Produk

The stepper motor does not experience speed fluctuations at low speeds, ensuring the stability and reliability of the system.

In the field of industrial automation, stepper motors can be used for driving and controlling various equipment.

Features:

High torque and high precision
Professional drivetrain solution specialist
Ten-year warranty and purchase with confidence
Provide “multiple international certifications” for high-tech industry and electronic industry equipment
Provide bespoke services

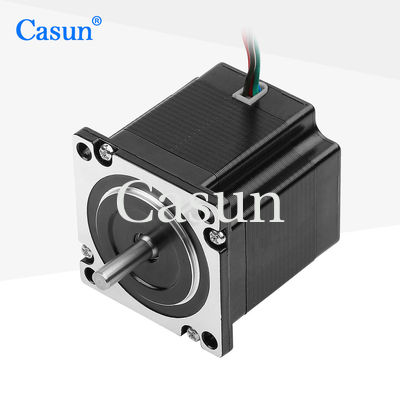

Appearance

Nema 23 Bipolar 1.8deg 1.2Nm (170oz.in) 57x57x54mm 4 Wires Stepper Motor For XYZ Axis CNC 0

Dimensions

Nema 23 Bipolar 1.8deg 1.2Nm (170oz.in) 57x57x54mm 4 Wires Stepper Motor For XYZ Axis CNC 1

Motor Specifications

Step Angel	1.8 °
Fram Size	57 mm
Number of Phase	2 Phase
Rated Current	2.0 A
Holding Torque	1.2 N.m
Resistance	1.4 ohm
Inductance	5 mH
Rotor Inertia	260 g-cm²
Motor weight	0.6 kg
Number of leads	4
Connection	Bipolar

Operating Specifications

Step Angle: 1.8°

Maximum Temperature :80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range (%) :85% or less, non-condensing

Magnet Wire Insulation :Class B 130 deg C

Insulation Resistance :100M Ohm at 500 VDC

Dielectric Strength :500 VDC for 1 min

Torque Curves

Submodels

Model	Holding Torque	Step Angle	Length	Type of Shaft	Rated Current
57SHD4013-21B	0.6N.m	1.8°	41mm	D Shaft-21mm	1.0A
57SHD4415-21B	1.1N.m	1.8°	54mm	D Shaft-21mm	3.0A
57SHD4816-21B	2.0N.m	1.8°	76mm	D Shaft-21mm	3.0A
57SHD4913-21B	2.5N.m	1.8°	83mm	D Shaft-21mm	3.0A
57SHD4934-20B	3.0N.m	1.8°	100mm	D Shaft-20mm	3.0A

Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs

Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:

Encoder	Brake	Gearbox	Shaft

Please click the "Get a quote" button below to tell us your requirements.
