2 Phase 0.27A Micro Stepper Motor SM1063 For Automotive Instrumentation Casun Motors

2 Phase 0.27A Micro Stepper Motor SM1063 For Automotive Instrumentation Casun Motors

Nama merek:	Casun
Nomor Model:	SM1063
MOQ:	1 buah
Harga:	$2.6-$8
Ketentuan Pembayaran:	D/A, T/T, L/C, D/P
Kemampuan Pasokan:	40000+Buah+Bulan

Informasi Rinci

Deskripsi Produk

Informasi Rinci

Tempat asal:

Sertifikasi:

CE,ROSH,ISO

Langkah Malaikat:

Fase:

Keluar:

1250pps

Voltase:

Panjang stroke:

56,5mm

Melempar:

1.25mm

Disesuaikan:

Motor dapat dirancang & diproduksi dengan permintaan khusus.

Kemasan rincian:

Karton: 36x29x14cm

Menyoroti:

Casun micro stepper motor

2 Phase micro stepper motor

0.27A micro stepper motor

Deskripsi Produk

SM1063 Series Linear Stepper Motors

Main applications: scanners, printing, medical equipment, automotive instrumentation, flash lights, security systems,

Ambient temperature: -10°- 55°
Insulation Resistance: 500VDC 100MΩMIN
Insulation Class: CLASS E
Maximum Continuous Response Frequency: 1500pps
Maximum Self-start Frequency: 1000PPS

Features:

Bipolar models available
Suitable for high-tech industrial and automated electronics
Customisable service available
Our engineers will contact you within 48 hours to provide the best solution.
Professional research and development manufacturing

Motor Specifications

Step angel	18°
Phase	2
Voltage	5VDC
Current	0.27A
Resistance	18Ω
Pull-out	500pps
Model	SM1063

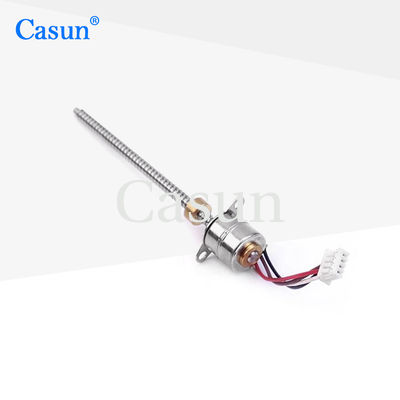

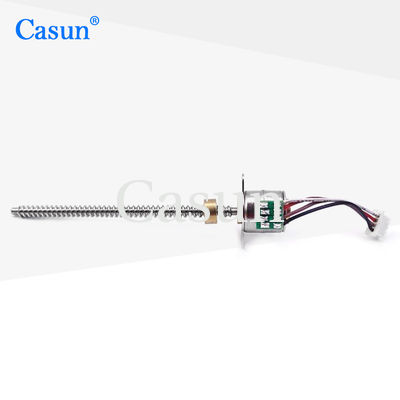

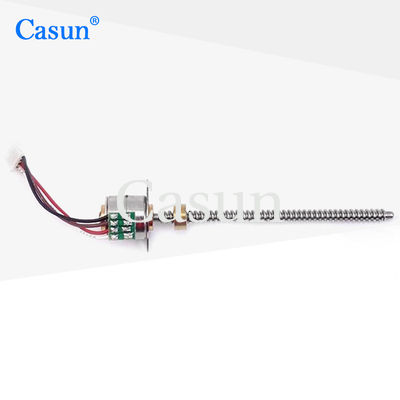

Appearance

2 Phase 0.27A Micro Stepper Motor SM1063 For Automotive Instrumentation Casun Motors 0

Dimensions

2 Phase 0.27A Micro Stepper Motor SM1063 For Automotive Instrumentation Casun Motors 1

Torque Curves

Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs

Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:

Encoder	Brake	Gearbox	Shaft

Please click the "Get a quote" button below to tell us your requirements.
