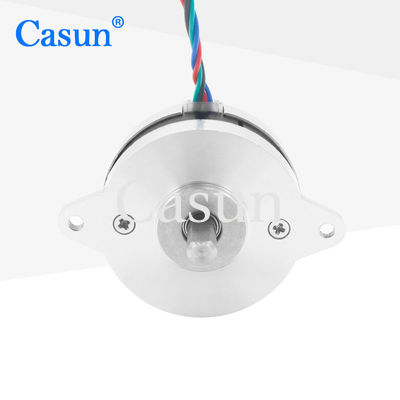

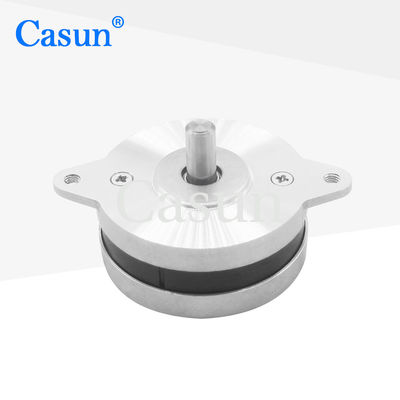

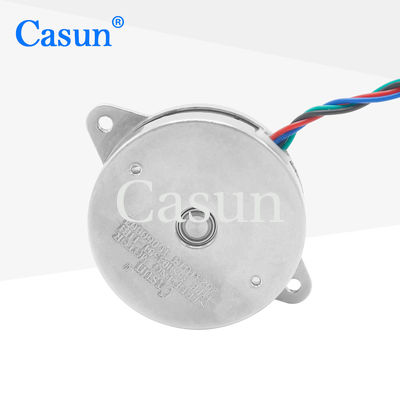

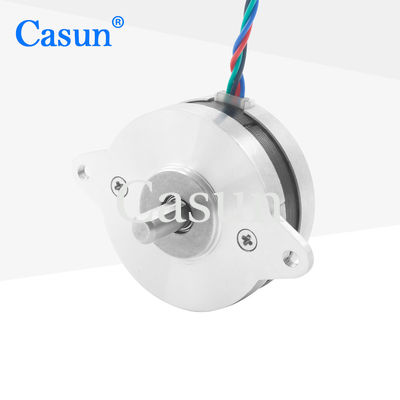

1.8 Degree 2 Phase NEMA 14 Flat Stepper Motor 70mN.M 0.3A For SMT Machine

1.8 Degree 2 Phase NEMA 14 Flat Stepper Motor 70mN.M 0.3A For SMT Machine

Nama merek:	Casun
Nomor Model:	36SHD4301-11B1
MOQ:	1 buah
Harga:	$4.14-$6.98
Ketentuan Pembayaran:	D/A, T/T, L/C, D/P
Kemampuan Pasokan:	40000+Buah+Bulan

Informasi Rinci

Deskripsi Produk

Informasi Rinci

Tempat asal:

Cina

Sertifikasi:

CE,ROHS,ISO

Langkah Malaikat:

1,8°

Memegang Torsi:

70mN.m

Saat ini:

0.3a

Panjang motor:

15.3mm

Batang:

Penggilingan Poros Datar Panjang 11mm

Disesuaikan:

Motor dapat dirancang & diproduksi dengan permintaan khusus.

Kemasan rincian:

Karton: 36x29x14cm

Menyoroti:

0.3A NEMA 14 Flat Stepper Motor

70mN.M NEMA 14 Flat Stepper Motor

SMT Machine Stepper Motor

Deskripsi Produk

Controlled by the number of pulses, there is no need for additional position sensors to provide feedback on the motor's position.

Applied to various automation equipment, robots, 3D printers, CNC machine tools, medical equipment, and many other fields.

Features:

Welcoming contract manufacturing
Offer specialised services
Available in single or double shaft versions
Dealers wanted!!
We provide custom services and undertake contract manufacturing

Motor Specifications

Step Angel	1.8 °
Fram Size	36 mm
Number of Phase	2 Phase
Rated Current	0.3 A
Holding Torque	70 mN.m
Resistance	15.5 ohm
Inductance	7.0 mH
Rotor Inertia	4 g-cm²
Motor weight	0.06 kg
Number of leads	4
Connection	Bipolar

Appearance

Dimensions

Torque Curves

Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs

Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:
Encoder | Brake | Gearbox | Connector

Please click the "Get a quote" button below to tell us your requirements.
