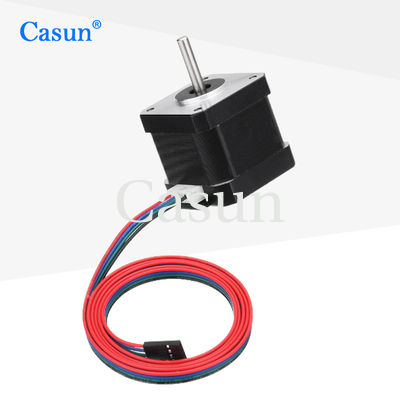

Factory NEMA 17 2 Phase Stepper Motor 17HS15-1504S1 Dc Motors With CE ISO ROHS

Factory NEMA 17 2 Phase Stepper Motor 17HS15-1504S1 Dc Motors With CE ISO ROHS

Nama merek:	Casun
Nomor Model:	42SHD4287-24BH-2/ 17HS15-1504S1
MOQ:	1 buah
Harga:	$2.5-$5.5
Ketentuan Pembayaran:	D/A, T/T, L/C, D/P
Kemampuan Pasokan:	40000+Buah+Bulan

Informasi Rinci

Deskripsi Produk

Informasi Rinci

Tempat asal:

Cina

Sertifikasi:

CE,ROHS,ISO

Langkah Malaikat:

1,8°

Memegang Torsi:

450mN.m

Saat ini:

1.5a

Panjang motor:

1000

Batang:

Penggilingan Poros Datar Panjang 24mm

Disesuaikan:

Motor dapat dirancang & diproduksi dengan permintaan khusus.

Kemasan rincian:

Karton: 36x29x14cm

Menyoroti:

17HS15-1504S1 NEMA 17 Stepper Motor

2 Phase NEMA 17 Stepper Motor

17HS15-1504S1 Dc Motors

Deskripsi Produk

NEMA 17 2 phase hybrid stepper motor low noise with CE certifications for 3d printer

The 42mm stepper motor is a space-efficient option for installation and arrangement in many industrial automation applications, such as 3D printers, textile machinery, and medical equipment.

Features:

We have been operating in China for 12 years, and we have served more than 800 clients.

Our specialty is providing custom services.

expert in drivetrain solutions

We are actively looking for dealers!

Custom services are available, and contract manufacturing is accepted.

Motor Specifications

Step Angel	1.8 °
Fram Size	42 mm
Number of Phase	2 Phase
Rated Current	1.5 A
Holding Torque	450 mN.m
Resistance	2.3 ohm
Inductance	4.4 mH
Rotor Inertia	54 g-cm²
Motor weight	0.3 kg
Number of leads	4
Connection	Bipolar

Appearance

Factory NEMA 17 2 Phase Stepper Motor 17HS15-1504S1 Dc Motors With CE ISO ROHS 0

Dimensions

Factory NEMA 17 2 Phase Stepper Motor 17HS15-1504S1 Dc Motors With CE ISO ROHS 1

Operating Specifications

Step Angle: 1.8°

Maximum Temperature :80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range (%) :85% or less, non-condensing

Magnet Wire Insulation :Class B 130 deg C

Insulation Resistance :100M Ohm at 500 VDC

Dielectric Strength :500 VDC for 1 min

Torque Curves

Submodels

Model	Holding Torque	Step Angle	Motor Length	Type of Shaft	Rated Current
42SHD4950	0.13N.m	1.8°	20mm	D Shaft-20mm	1.0A
42SHD4003	0.26N.m	1.8°	34mm	D Shaft-20mm	0.4A
42SHD0261	0.45N.m	1.8°	40mm	D Shaft-20mm	1.68A
42SHD4425	0.59N.m	1.8°	48mm	D Shaft-24mm	2.0A
42SHD4813	0.8N.m	1.8°	60mm	D Shaft-24mm	2.1A

Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs

Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:

Encoder	Brake	Gearbox	Shaft

Please click the "Get a quote" button below to tell us your requirements.
