1.2 Degree NEMA 17 Stepper Motor 3 Phase 1.2A With CE RoHS ISO

1.2 Degree NEMA 17 Stepper Motor 3 Phase 1.2A With CE RoHS ISO

Nama merek:	Casun
Nomor Model:	42SHF3202-22L1
MOQ:	1 buah
Harga:	$3.14-$5
Ketentuan Pembayaran:	D/A, T/T, L/C, D/P
Kemampuan Pasokan:	40000+Buah+Bulan

Informasi Rinci

Deskripsi Produk

Informasi Rinci

Tempat asal:

Cina

Sertifikasi:

CE,ROHS,ISO

Langkah Malaikat:

1.2°

Memegang Torsi:

360mN.m

Saat ini:

1.2A

Panjang motor:

1000

Batang:

Poros Bulat Panjang 22mm

Fase:

Tiga

Disesuaikan:

Motor dapat dirancang & diproduksi dengan permintaan khusus.

Kemasan rincian:

Karton: 36x29x14cm

Menyoroti:

1.2 Degree NEMA 17 Stepper Motor

1.2A NEMA 17 Stepper Motor

Deskripsi Produk

Widely used in industrial applications that require precision, stability, and fast motion.

Through pulse signal control, it is easy to achieve complex motion trajectories.

Features:

High torque and high precision
For high-tech industry and electronic industry equipment
Our engineers will contact you within 48 hours to provide the best solution
We possess expertise in drivetrain solutions
Established in China for 12 years and has served more than 800 customers

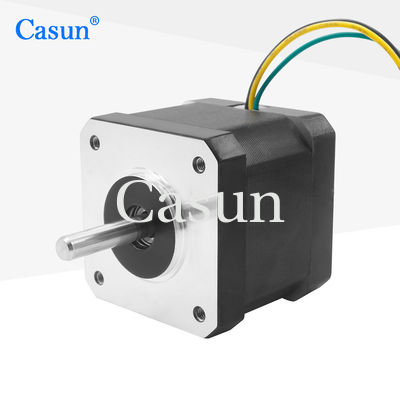

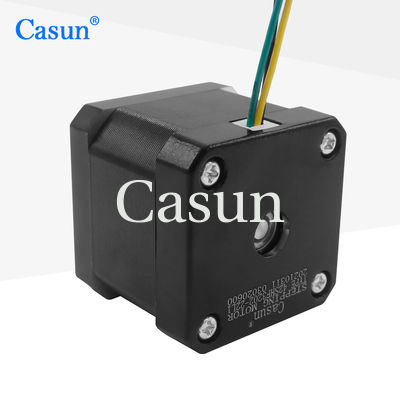

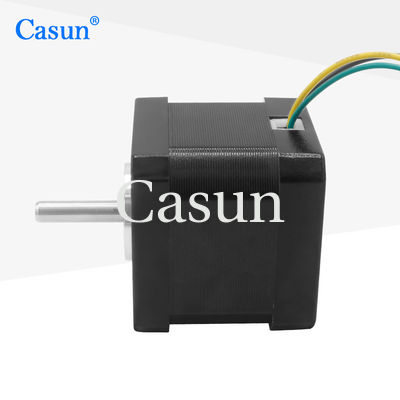

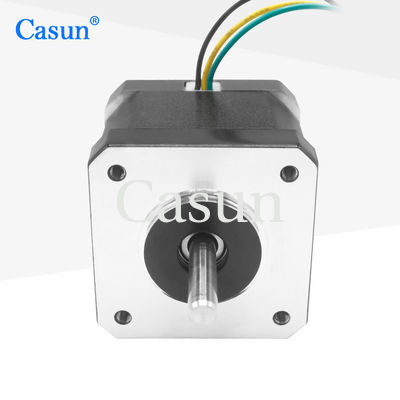

Appearance

1.2 Degree NEMA 17 Stepper Motor 3 Phase 1.2A With CE RoHS ISO 0

Dimensions

1.2 Degree NEMA 17 Stepper Motor 3 Phase 1.2A With CE RoHS ISO 1

Motor Specifications

Step Angel	1.2 °
Fram Size	42 mm
Number of Phase	2 Phase
Rated Current	1.2 A
Holding Torque	360 mN.m
Resistance	9.0 ohm
Inductance	10.3 mH
Rotor Inertia	57 g-cm²
Motor weight	0.24 kg
Number of leads	3
Connection	Bipolar

Operating Specifications

Step Angle: 1.8°

Maximum Temperature :80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range (%) :85% or less, non-condensing

Magnet Wire Insulation :Class B 130 deg C

Insulation Resistance :100M Ohm at 500 VDC

Dielectric Strength :500 VDC for 1 min

Torque Curves

Submodels

Model	Holding Torque	Step Angle	Motor Length	Type of Shaft	Rated Current
42SHD4950	0.13N.m	1.8°	20mm	D Shaft-20mm	1.0A
42SHD4003	0.26N.m	1.8°	34mm	D Shaft-20mm	0.4A
42SHD0261	0.45N.m	1.8°	40mm	D Shaft-20mm	1.68A
42SHD4425	0.59N.m	1.8°	48mm	D Shaft-24mm	2.0A
42SHD4813	0.8N.m	1.8°	60mm	D Shaft-24mm	2.1A

Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs

Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:

Encoder	Brake	Gearbox	Shaft

Please click the "Get a quote" button below to tell us your requirements.
