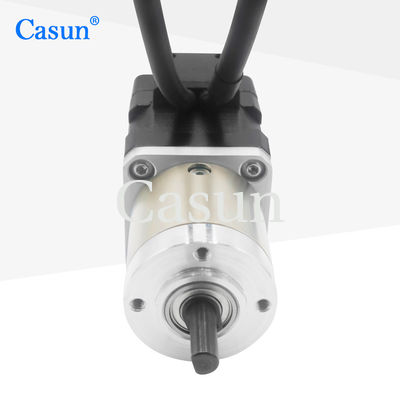

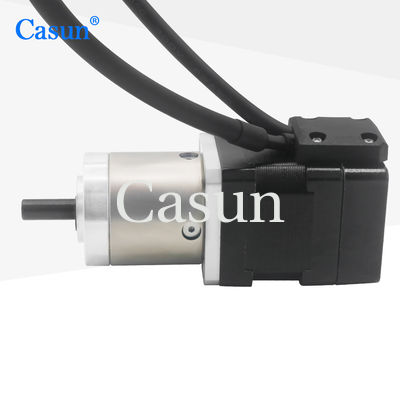

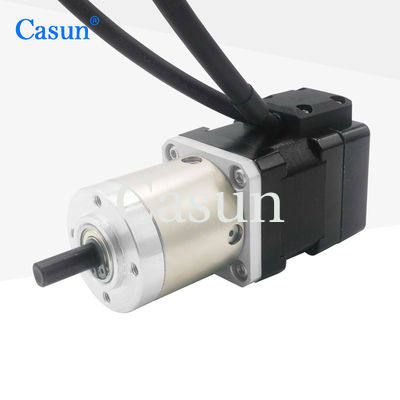

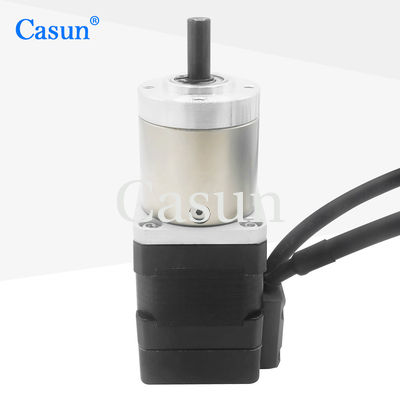

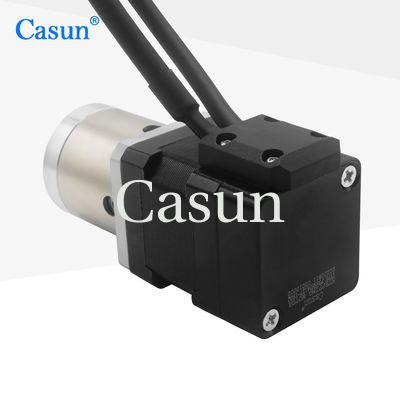

NEMA 14 Gear Box Stepping Motor With Encoder 0.18N.M 1.0A For PLC

NEMA 14 Gear Box Stepping Motor With Encoder 0.18N.M 1.0A For PLC

Nama merek:	Casun
Nomor Model:	P35SHD4127-19GQ
MOQ:	1 buah
Harga:	$18.9-$24
Ketentuan Pembayaran:	D/A, T/T, L/C, D/P
Kemampuan Pasokan:	40000+Buah+Bulan

Informasi Rinci

Deskripsi Produk

Informasi Rinci

Tempat asal:

Cina

Sertifikasi:

CE,ROHS,ISO

Rasio gigi:

1:19.2

Memegang Torsi:

180mN.m

Kawat Timah:

4 kawat

Nilai Saat Ini:

1.0A

Sudut langkah:

1,8°

Efisiensi gigi:

80％

Disesuaikan:

Motor dapat dirancang & diproduksi dengan permintaan khusus.

Kemasan rincian:

Karton: 38x29x18cm

Menyoroti:

NEMA 14 Gear Box Stepping Motor

1.0A Gear Box Stepping Motor

Geared Stepper Motor For PLC

Deskripsi Produk

NEMA 14 Gear Box Stepping Motor With Encoder 0.18N.M 1.0A For PLC

Compatible with existing control systems such as PLCs, motion controllers, etc., making integration relatively simple.

Small automation systems, water pumps, electric door locks, image scanners, and precision positioning tools.

Features:

Bipolar or unipolar versions available
Deliver "multiple international certifications" for electrical and high-tech devices
Contract-based manufacturing services are welcome
Within 48 hours, one of our engineers will contact you with the best option.
Every stepper motor model is adaptable to various applications

Dimensions

Motor Specifications

Step Angel	1.8 °
Fram Size	35 mm
Number of Phase	2 Phase
Rated Current	1.0 A
Holding Torque	180 mN.m
Resistance	3.2 ohm
Inductance	4.5 mH
Rotor Inertia	18 g-cm²
Motor weight	0.36 kg
Gear Reduction Ratio	19.2:1
Connection	Bipolar

Operating Specifications

Motor

Step Angle: 1.8°

Maximum Temperature :80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range (%) :85% or less, non-condensing

Magnet Wire Insulation :Class B 130 deg C

Insulation Resistance :100M Ohm at 500 VDC

Dielectric Strength :500 VDC for 1 min

Gear Box

Housing Material:Metal

Bearing at Output:Ball Bearings

Max.Radial Load(12mm from flange):≤80N

Max.Shaft Axial Load:≤30N

Radial Play of Shaft (near to Flange):≤0.06m

Axial Play of Shaft:≤0.3mm

Backlash at No-load:≤1.5°

Torque Curves

Submodels

Motor Length	Length of Gearbox	Raio	Efficiency
26 mm 34 mm 40 mm	29.1 mm	3.71	90%
		5.18
	36.8 mm	13.76	80%
		19.2
		26.8
	44.6 mm	51	70%
		71
		99.5
		139

Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs

Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:
Encoder | Brake | Gearbox | Shaft

NEMA 14 Gear Box Stepping Motor With Encoder 0.18N.M 1.0A For PLC 1

Please click the "Get a quote" button below to tell us your requirements.
