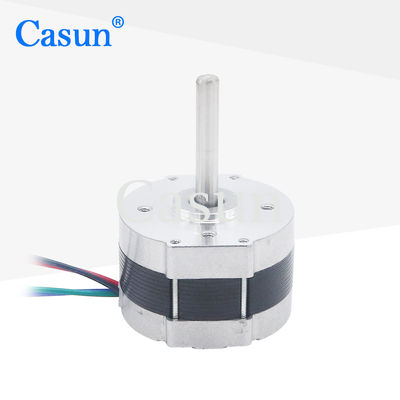

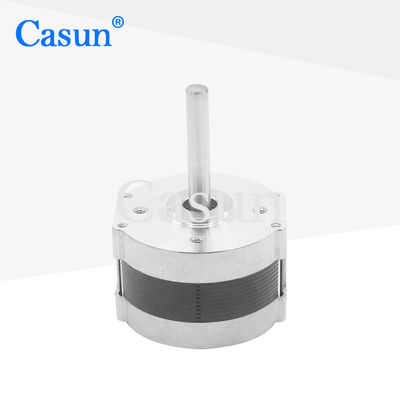

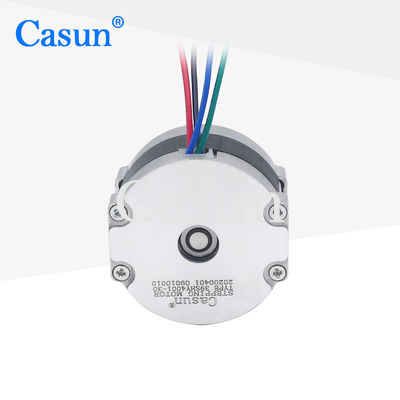

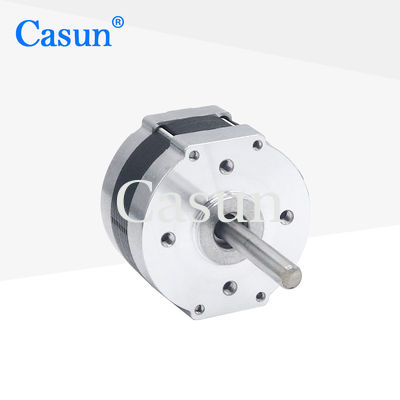

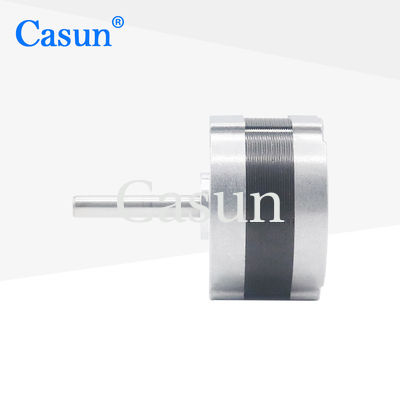

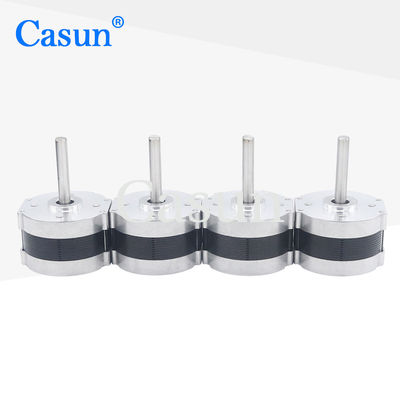

39mm Cycle 120mN.M Four Wire Stepper Motor 2 Phase NEMA 16 CE RoHS DC Motors

39mm Cycle 120mN.M Four Wire Stepper Motor 2 Phase NEMA 16 CE RoHS DC Motors

Nama merek:	Casun
Nomor Model:	39SHY4001-30
MOQ:	1 buah
Harga:	$4.14-$6.98
Ketentuan Pembayaran:	D/A, T/T, L/C, D/P
Kemampuan Pasokan:	40000+Buah+Bulan

Informasi Rinci

Deskripsi Produk

Informasi Rinci

Tempat asal:

Cina

Sertifikasi:

CE,ROSH,ISO

Langkah Malaikat:

1,8°

Memegang Torsi:

120mN.m

Saat ini:

0.4a

Panjang motor:

25mm

Batang:

Poros Bulat Panjang 30mm

Disesuaikan:

Motor dapat dirancang & diproduksi dengan permintaan khusus.

Kemasan rincian:

Karton: 36x29x14cm

Menyoroti:

120mN.M Four Wire Stepper Motor

39mm Cycle Four Wire Stepper Motor

Deskripsi Produk

39mm Cycle 120mN.M Four Wire Stepper Motor 2 Phase NEMA 16 CE RoHS DC Motors

The 39mm stepper motor is a smaller type of stepper motor that has some unique advantages compared to other larger stepper motors

Working in a low-power manner, it is more energy-efficient and energy-efficient.

Features:

Bipolar or unipolar versions available
Every stepper motor model has use in a variety of situations.
Available in single or double shaft versions
CE and RoHS approved
Within 48 hours, one of our engineers will contact you with the best option.

Motor Specifications

Step Angel	1.8 °
Fram Size	39 mm
Number of Phase	2 Phase
Rated Current	0.4 A
Holding Torque	120 mN.m
Resistance	23.3 ohm
Inductance	19.8 mH
Rotor Inertia	20 g-cm²
Motor weight	0.17 kg
Number of leads	4
Connection	Bipolar

Appearance

Dimensions

39mm Cycle 120mN.M Four Wire Stepper Motor 2 Phase NEMA 16 CE RoHS DC Motors 1

Operating Specifications

Step Angle: 1.8°

Maximum Temperature :80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range (%) :85% or less, non-condensing

Magnet Wire Insulation :Class B 130 deg C

Insulation Resistance :100M Ohm at 500 VDC

Dielectric Strength :500 VDC for 1 min

Torque Curves

Submodels

Model	Holding Torque	Step Angle	Motor Length	Type of Shaft	Rated Current
39SHD0001-20	100mN.m	1.8°	20mm	Round Shaft 20mm	0.48A
39SHD0504-20	100mN.m	1.8°	22mm	Round Shaft 20mm	0.4A
39SHD0611-20	200mN.m	1.8°	25mm	Round Shaft 20mm	0.4A
39SHD0302-20	220mN.m	1.8°	34mm	Round Shaft 20mm	0.4A
39SHD0401-24	220mN.m	1.8°	38mm	Round Shaft 24mm	0.4A
39SHD0801-24B	220mN.m	1.8°	48mm	D Shaft 24mm	0.4A

Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs

Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:

Encoder	Brake	Gearbox	Shaft

Please click the "Get a quote" button below to tell us your requirements.

Tag:

2 Phase Bipolar Stepper Motor

Nema 6 Bipolar Stepper Motor

120mN.M Four Wire Stepper Motor
