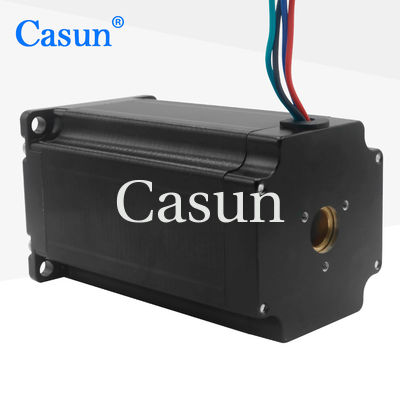

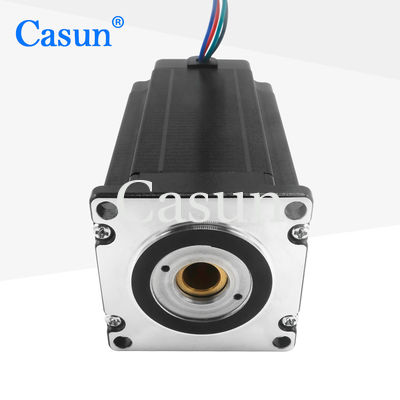

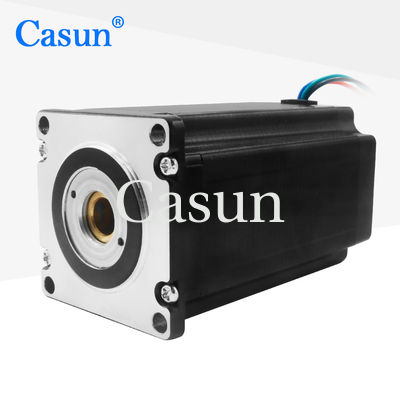

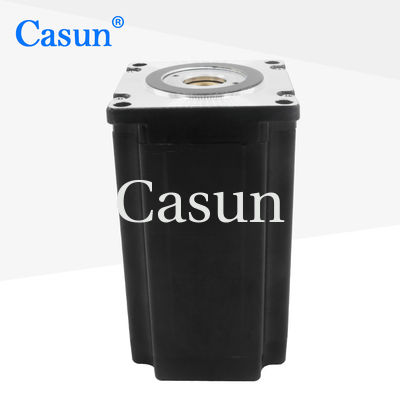

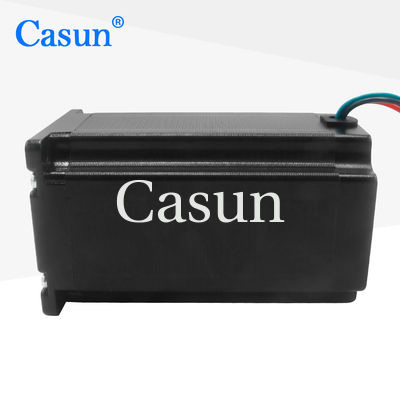

DC Linear NEMA 23 Hollow Shaft Stepper Motor 100mm Body 4.5A Nc Machine

DC Linear NEMA 23 Hollow Shaft Stepper Motor 100mm Body 4.5A Nc Machine

Nama merek:	Casun
Nomor Model:	57SHD4935-KH
MOQ:	1 buah
Harga:	$3.14-$5
Ketentuan Pembayaran:	D/A, T/T, L/C, D/P
Kemampuan Pasokan:	40000+Buah+Bulan

Informasi Rinci

Deskripsi Produk

Informasi Rinci

Tempat asal:

Cina

Sertifikasi:

CE,ROHS,ISO

Langkah Malaikat:

1,8°

Memegang Torsi:

3000mN.m

Saat ini:

4.5A

Panjang motor:

100mm

Batang:

Tidak ada

Disesuaikan:

Motor dapat dirancang & diproduksi dengan permintaan khusus.

Kemasan rincian:

Karton: 36x29x14cm

Menyoroti:

NEMA 23 Hollow Shaft Stepper Motor

DC Linear Hollow Shaft Stepper Motor

Deskripsi Produk

DC Linear NEMA 23 Hollow Shaft Stepper Motor 100mm Body 4.5A Nc Machine

The 57mm Hybrid Stepper Motor Series comes in a range of sizes and provides strong holding torque.

Widely used in fields such as automation equipment, robotics technology, and CNC machine tools.

Features:

Both high torque and accuracy
For electronic industrial equipment and high-tech industry equipment
Within 48 hours, one of our engineers will contact you with the best option
Ten-year warranty and confidence in purchasing
Each model of stepper motor can be suitable for different scenarios

Motor Specifications

Step Angel	1.8 °
Fram Size	57 mm
Number of Phase	2 Phase
Rated Current	4.5 A
Holding Torque	3000 mN.m
Resistance	1.3 ohm
Inductance	6.0 mH
Rotor Inertia	650 g-cm²
Motor weight	1 kg
Number of leads	4
Connection	Bipolar

Appearance

DC Linear NEMA 23 Hollow Shaft Stepper Motor 100mm Body 4.5A Nc Machine 0

Dimensions

DC Linear NEMA 23 Hollow Shaft Stepper Motor 100mm Body 4.5A Nc Machine 1

Operating Specifications

Step Angle: 1.8°

Maximum Temperature :80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range (%) :85% or less, non-condensing

Magnet Wire Insulation :Class B 130 deg C

Insulation Resistance :100M Ohm at 500 VDC

Dielectric Strength :500 VDC for 1 min

Torque Curves

Submodels

Model	Holding Torque	Step Angle	Length	Type of Shaft	Rated Current
57SHD4013-21B	0.6N.m	1.8°	41mm	D Shaft-21mm	1.0A
57SHD4415-21B	1.1N.m	1.8°	54mm	D Shaft-21mm	3.0A
57SHD4816-21B	2.0N.m	1.8°	76mm	D Shaft-21mm	3.0A
57SHD4913-21B	2.5N.m	1.8°	83mm	D Shaft-21mm	3.0A
57SHD4934-20B	3.0N.m	1.8°	100mm	D Shaft-20mm	3.0A

Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs

Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:

Encoder	Brake	Gearbox	Shaft

Please click the "Get a quote" button below to tell us your requirements.
