NEMA 17 Double Layer Linear Stepper Motor 12V With Precision Positioning

NEMA 17 Double Layer Linear Stepper Motor 12V With Precision Positioning

Nama merek:	Casun
Nomor Model:	S42-02
MOQ:	1 buah
Harga:	$11-$15
Ketentuan Pembayaran:	D/A, T/T, L/C, D/P
Kemampuan Pasokan:	40000+Buah+Bulan

Informasi Rinci

Deskripsi Produk

Informasi Rinci

Tempat asal:

Cina

Sertifikasi:

CE,ROHS,ISO

Langkah Malaikat:

1,8°

Memegang Torsi:

280mN.m

Saat ini:

0.4a

Panjang motor:

34 MM

Stroke:

0~37

Disesuaikan:

Motor dapat dirancang & diproduksi dengan permintaan khusus.

Kemasan rincian:

Karton: 36x29x14cm

Menyoroti:

Double Layer Linear Stepper Motor

NEMA 17 Linear Stepper Motor

Linear Stepper Motor Precision Positioning

Deskripsi Produk

NEMA 17 Double Layer Linear Stepper Motor 12V With Precision Positioning

The double-layer stepper motor can achieve precise rotation and position control.

Double layer linear motors are widely used in the field of automation control.

Features:

Operating in China for 12 years, having served over 800 customers
Dealers needed! !
Supply "multiple international certifications" for high-tech and electronic industry equipment
Specializing in drivetrain solutions
Expertise in research, development, and production

Motor Specifications

Step Angel	1.8 °
Fram Size	42 mm
Number of Phase	2 Phase
Rated Current	0.4 A
Holding Torque	280 mN.m
Resistance	30 ohm
Inductance	37 mH
Rotor Inertia38	g-cm²
Motor weight	0.4 kg
Number of leads	4
Connection	Bipolar

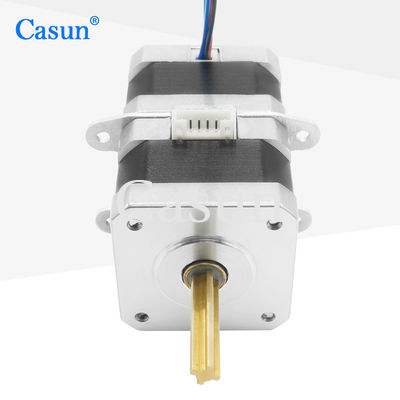

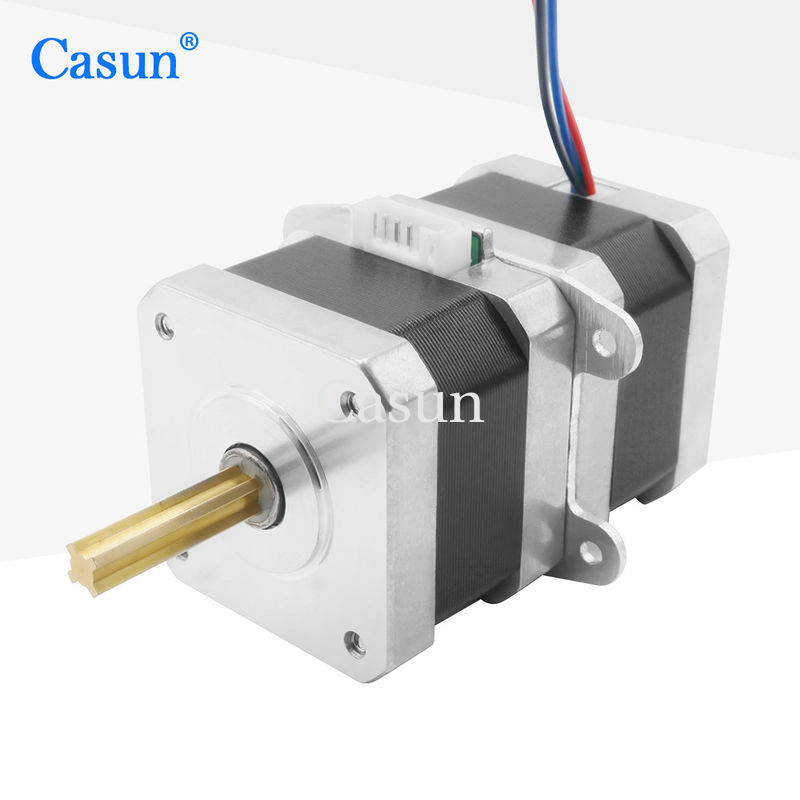

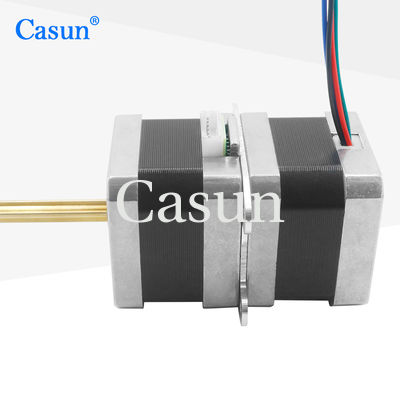

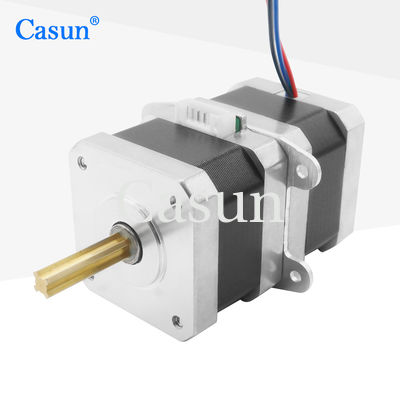

Appearance

NEMA 17 Double Layer Linear Stepper Motor 12V With Precision Positioning 0

Dimensions

NEMA 17 Double Layer Linear Stepper Motor 12V With Precision Positioning 1

Operating Specifications

Step Angle: 1.8°

Maximum Temperature :80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range (%) :85% or less, non-condensing

Magnet Wire Insulation :Class B 130 deg C

Insulation Resistance :100M Ohm at 500 VDC

Dielectric Strength :500 VDC for 1 min

Torque Curves

Submodels

Model	Holding Torque	Step Angle	Motor Length	Type of Shaft	Rated Current
42SHD4950	0.13N.m	1.8°	20mm	D Shaft-20mm	1.0A
42SHD4003	0.26N.m	1.8°	34mm	D Shaft-20mm	0.4A
42SHD0261	0.45N.m	1.8°	40mm	D Shaft-20mm	1.68A
42SHD4425	0.59N.m	1.8°	48mm	D Shaft-24mm	2.0A
42SHD4813	0.8N.m	1.8°	60mm	D Shaft-24mm	2.1A

Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs

Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:

Encoder	Brake	Gearbox	Shaft

Please click the "Get a quote" button below to tell us your requirements.
