14HS10-0404S Nema 14 Stepper Motor 0.4A Dc Motor For Robot

14HS10-0404S Nema 14 Stepper Motor 0.4A Dc Motor For Robot

Nama merek:	Casun
Nomor Model:	P35SHD4007-21B
MOQ:	1 buah
Harga:	$4-$9
Ketentuan Pembayaran:	D/A, T/T, L/C, D/P
Kemampuan Pasokan:	40000+Buah+Bulan

Informasi Rinci

Deskripsi Produk

Informasi Rinci

Tempat asal:

Cina

Sertifikasi:

CE,ROSH,ISO

Langkah Malaikat:

1,8°

Memegang Torsi:

140mN.m

Saat ini:

0.4a

Panjang motor:

26mm

Batang:

Panjang 20mm

Disesuaikan:

Motor dapat dirancang & diproduksi dengan permintaan khusus.

Kemasan rincian:

Karton: 36x29x14cm

Menyoroti:

14HS10-0404S Nema 14 Stepper Motor

0.4A Nema 14 Stepper Motor

Deskripsi Produk

14HS10-0404S Nema 14 Stepper Motors 0.4A Dc Motor For Robot

Casun Mini Step Motor Nema14 35x35x26mm 140mN.M Stepper Motor For Medical Machine

35x35x26mm 0.4A Casun Stepper Motor Nema 14 Mini Stepper Motor For Medical beauty equipment

Nema 14 Casun Stepper Motor 2 Phase 140mN.m 0.4A 35x35x26mm Stepping Motor for Medical machine

Motor Specifications

Step Angel	1.8 °
Fram Size	35 mm
Number of Phase	2 Phase
Rated Current	0.4A
Holding Torque	140 mN.m
Resistance	30ohm
Inductance	30mH
Rotor Inertia	35g-cm²
Motor weight	12 kg
Number of leads	4
Connection	Bipolar

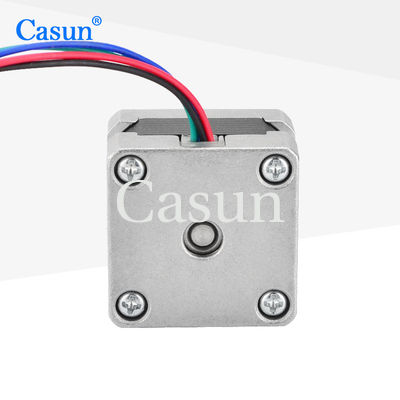

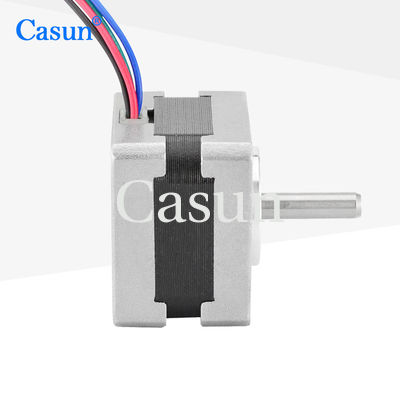

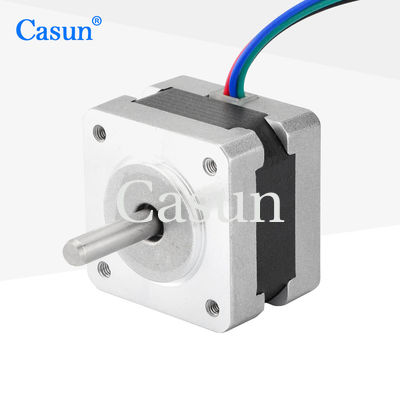

Appearance

Dimensions

The Nema 14 Casun stepper motor you mentioned is a specific model of stepper motor manufactured by Casun. Here are the specifications you provided:

Motor Type: 2-phase stepper motor
Torque: 140mN.m (millinewton-meter)
Current: 0.4A (Amperes)
Dimensions: 35x35x26mm (width x depth x height)

This particular stepper motor is designed for use in medical machines, which suggests it may be used in applications where precise and controlled movements are required. Stepper motors are commonly used in various industries and applications, including robotics, automation, 3D printers, and CNC machines.

Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs

Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:
Encoder | Brake | Gearbox | Connector

Please click the "Get a quote" button below to tell us your requirements.
