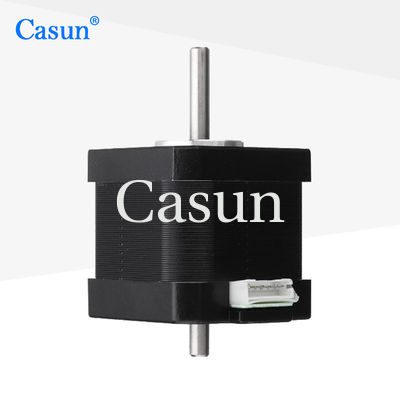

1.8 Degree Dual Shaft NEMA 17 Stepper Motor 424240mm 4 Lead Stepper Motor

1.8 Degree Dual Shaft NEMA 17 Stepper Motor 424240mm 4 Lead Stepper Motor

Nama merek:	Casun
Nomor Model:	42SHD0261-24SH
MOQ:	1 buah
Harga:	$3.14-$5
Ketentuan Pembayaran:	D/A, T/T, L/C, D/P
Kemampuan Pasokan:	40000+Buah+Bulan

Informasi Rinci

Deskripsi Produk

Informasi Rinci

Tempat asal:

Cina

Sertifikasi:

CE,ROHS,ISO

Langkah Malaikat:

1,8°

Memegang Torsi:

450mN.m

Saat ini:

1,68A

Panjang motor:

1000

Batang:

Poros Ganda Panjang 24mm

Disesuaikan:

Motor dapat dirancang & diproduksi dengan permintaan khusus.

Kemasan rincian:

Karton: 36x29x14cm

Menyoroti:

1.8 Degree NEMA 17 Stepper Motor

Dual Shaft NEMA 17 Stepper Motor

Deskripsi Produk

1.8 Degree Dual Shaft NEMA 17 42*42*40mm 4 Lead Stepper Motor

High precision positioning and fast response capabilities enable it to adapt to complex production scenarios and improve automotive production efficiency and quality.

Printers, engraving machines, 3D printers, and robots.

Features:

Our engineers will react within 48 hours to offer the optimal solution
High torque and accuracy
Wanted dealers! !
Specializing in drivetrain solutions
Ten-year warranty and purchase with confidence

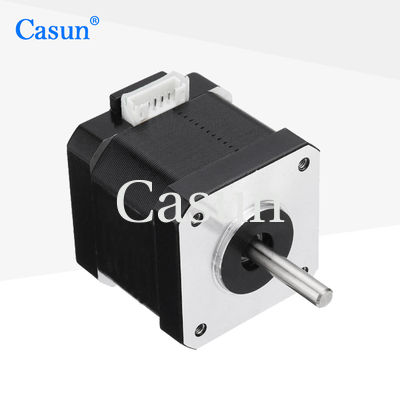

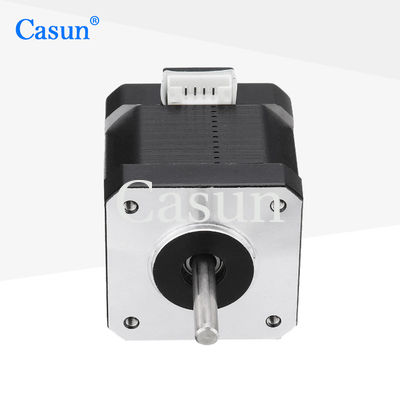

Appearance

1.8 Degree Dual Shaft NEMA 17 Stepper Motor 42*42*40mm 4 Lead Stepper Motor 0

Dimensions

1.8 Degree Dual Shaft NEMA 17 Stepper Motor 42*42*40mm 4 Lead Stepper Motor 1

Motor Specifications

Step Angel	1.8 °
Fram Size	42 mm
Number of Phase	2 Phase
Rated Current	1.68 A
Holding Torque	450 mN.m
Resistance	1.95 ohm
Inductance	4.4 mH
Rotor Inertia	57 g-cm²
Motor weight	0.3 kg
Number of leads	4
Connection	Bipolar

Operating Specifications

Step Angle: 1.8°

Maximum Temperature :80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range (%) :85% or less, non-condensing

Magnet Wire Insulation :Class B 130 deg C

Insulation Resistance :100M Ohm at 500 VDC

Dielectric Strength :500 VDC for 1 min

Torque Curves

Submodels

Model	Holding Torque	Step Angle	Motor Length	Type of Shaft	Rated Current
42SHD4950	0.13N.m	1.8°	20mm	D Shaft-20mm	1.0A
42SHD4003	0.26N.m	1.8°	34mm	D Shaft-20mm	0.4A
42SHD0261	0.45N.m	1.8°	40mm	D Shaft-20mm	1.68A
42SHD4425	0.59N.m	1.8°	48mm	D Shaft-24mm	2.0A
42SHD4813	0.8N.m	1.8°	60mm	D Shaft-24mm	2.1A

Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs

Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:

Encoder	Brake	Gearbox	Shaft

Please click the "Get a quote" button below to tell us your requirements.
