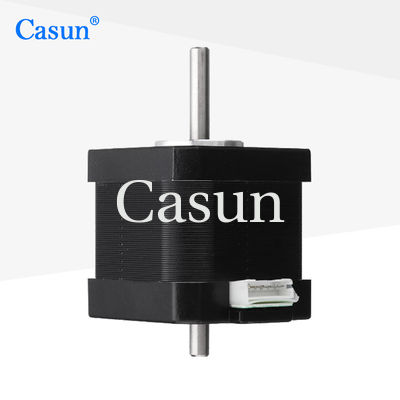

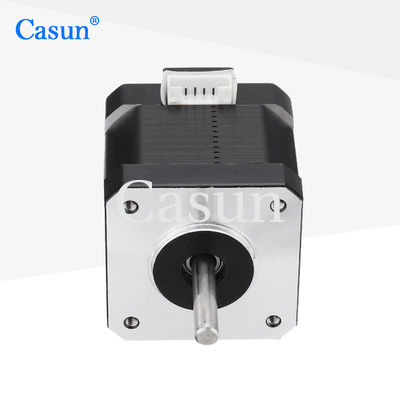

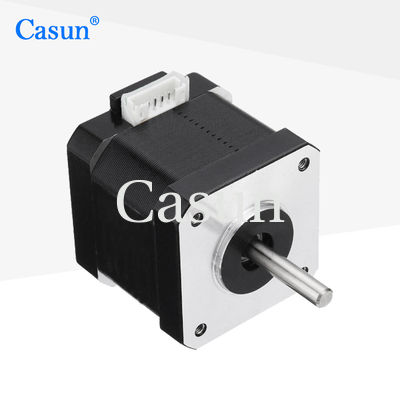

20mm Length Dual Shaft Motor NEMA 17 0.40N.M 0.4A For Print Head With CE

20mm Length Dual Shaft Motor NEMA 17 0.40N.M 0.4A For Print Head With CE

Nama merek:	Casun
Nomor Model:	42SHD0226-20SH
MOQ:	1 buah
Harga:	$3.14-$5
Ketentuan Pembayaran:	D/A, T/T, L/C, D/P
Kemampuan Pasokan:	40000+Buah+Bulan

Informasi Rinci

Deskripsi Produk

Informasi Rinci

Tempat asal:

Cina

Sertifikasi:

CE,ROHS,ISO

Langkah Malaikat:

1,8°

Memegang Torsi:

400mN.m

Saat ini:

0.4a

Panjang motor:

1000

Batang:

Poros Ganda Panjang 20mm

Disesuaikan:

Motor dapat dirancang & diproduksi dengan permintaan khusus.

Kemasan rincian:

Karton: 36x29x14cm

Menyoroti:

20mm Length Dual Shaft Motor

NEMA 17 Dual Shaft Motor

Deskripsi Produk

Dual Shaft Motor NEMA 17 0.40N.M 0.4A For Print Head With CE

The 42mm dual axis stepper motor is widely used to control the movement of the print head and achieve precise stacked printing.

It can adapt to different application requirements and can be flexibly integrated with other devices.

Features:

Expertise in professional research and development manufacturing
Each model of stepper motor can be suitable for different scenarios
Wanted dealers! !
Specializing in drivetrain solutions
Ten-year warranty and purchase with confidence

Appearance

20mm Length Dual Shaft Motor NEMA 17 0.40N.M 0.4A For Print Head With CE 0

Dimensions

20mm Length Dual Shaft Motor NEMA 17 0.40N.M 0.4A For Print Head With CE 1

Motor Specifications

Step Angel	1.8 °
Fram Size	42 mm
Number of Phase	2 Phase
Rated Current	0.4 A
Holding Torque	400 mN.m
Resistance	30 ohm
Inductance	40 mH
Rotor Inertia	57 g-cm²
Motor weight	0.24 kg
Number of leads	4
Connection	Bipolar

Operating Specifications

Step Angle: 1.8°

Maximum Temperature :80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range (%) :85% or less, non-condensing

Magnet Wire Insulation :Class B 130 deg C

Insulation Resistance :100M Ohm at 500 VDC

Dielectric Strength :500 VDC for 1 min

Torque Curves

Submodels

Model	Holding Torque	Step Angle	Motor Length	Type of Shaft	Rated Current
42SHD4950	0.13N.m	1.8°	20mm	D Shaft-20mm	1.0A
42SHD4003	0.26N.m	1.8°	34mm	D Shaft-20mm	0.4A
42SHD0261	0.45N.m	1.8°	40mm	D Shaft-20mm	1.68A
42SHD4425	0.59N.m	1.8°	48mm	D Shaft-24mm	2.0A
42SHD4813	0.8N.m	1.8°	60mm	D Shaft-24mm	2.1A

Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs

Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:

Encoder	Brake	Gearbox	Shaft

Please click the "Get a quote" button below to tell us your requirements.
