1.33A 42*42mm Stepping Motor NEMA 23 DC Motor For Medical Equipment 320mN.m

1.33A 42*42mm Stepping Motor NEMA 23 DC Motor For Medical Equipment 320mN.m

Nama merek:	Casun
Nomor Model:	42SHD4079-24BH
MOQ:	1 buah
Harga:	$3.14-$5
Ketentuan Pembayaran:	D/A, T/T, L/C, D/P
Kemampuan Pasokan:	40000+Buah+Bulan

Informasi Rinci

Deskripsi Produk

Informasi Rinci

Tempat asal:

Cina

Sertifikasi:

CE,ROHS,ISO

Langkah Malaikat:

1,8°

Memegang Torsi:

320mN.m

Saat ini:

1.33A

Panjang motor:

34 MM

Batang:

Penggilingan Poros Datar Panjang 24mm

Disesuaikan:

Motor dapat dirancang & diproduksi dengan permintaan khusus.

Kemasan rincian:

Karton: 36x29x14cm

Menyoroti:

Stepping Motor NEMA 23 1.33A

Medical Equipment Stepping Motor NEMA 23

Deskripsi Produk

1.33A 42*42mm Stepping Motor NEMA 23 DC Motor For Medical Equipment With ROHS

The 42mm stepper motor can be used in medical equipment, such as precision medical imaging equipment or surgical robots.

Excellent performance in applications that require quick start stop and frequent changes in movement direction.

Features:

High torque and accuracy
Expertise in professional research and development manufacturing
We are looking for dealers!
Professional research and development manufacturing
Our engineers will respond within 48 hours to provide the best solution

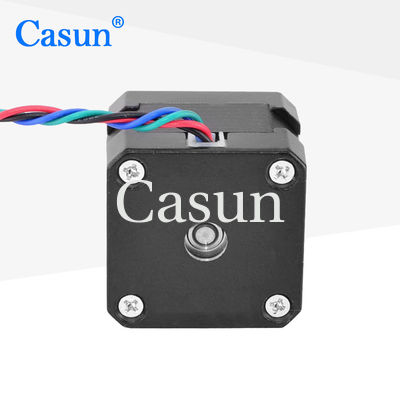

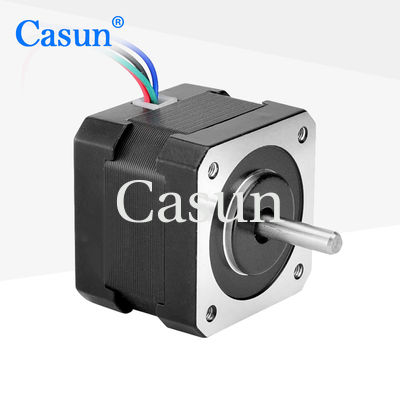

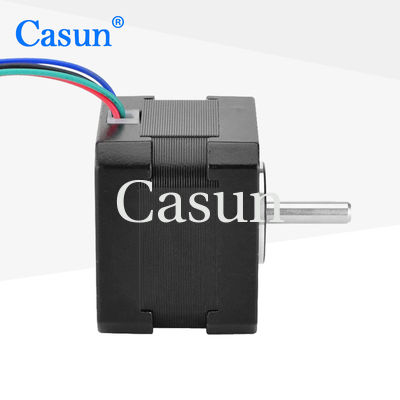

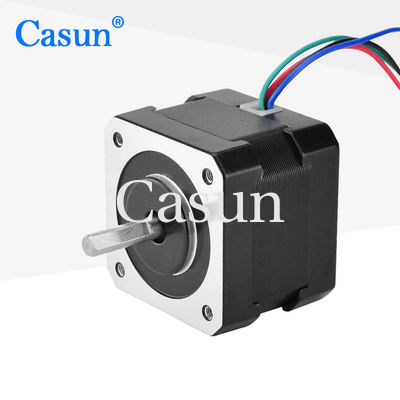

Appearance

1.33A 42*42mm Stepping Motor NEMA 23 DC Motor For Medical Equipment 320mN.m 0

Dimensions

1.33A 42*42mm Stepping Motor NEMA 23 DC Motor For Medical Equipment 320mN.m 1

Motor Specifications

Step Angel	1.8 °
Fram Size	42 mm
Number of Phase	2 Phase
Rated Current	1.33 A
Holding Torque	320 mN.m
Resistance	2.7 ohm
Inductance	4.2 mH
Rotor Inertia	38 g-cm²
Motor weight	0.2 kg
Number of leads	4
Connection	Bipolar

Operating Specifications

Step Angle: 1.8°

Maximum Temperature :80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range (%) :85% or less, non-condensing

Magnet Wire Insulation :Class B 130 deg C

Insulation Resistance :100M Ohm at 500 VDC

Dielectric Strength :500 VDC for 1 min

Torque Curves

Submodels

Model	Holding Torque	Step Angle	Motor Length	Type of Shaft	Rated Current
42SHD4950	0.13N.m	1.8°	20mm	D Shaft-20mm	1.0A
42SHD4003	0.26N.m	1.8°	34mm	D Shaft-20mm	0.4A
42SHD0261	0.45N.m	1.8°	40mm	D Shaft-20mm	1.68A
42SHD4425	0.59N.m	1.8°	48mm	D Shaft-24mm	2.0A
42SHD4813	0.8N.m	1.8°	60mm	D Shaft-24mm	2.1A

Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs

Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:

Encoder	Brake	Gearbox	Shaft

Please click the "Get a quote" button below to tell us your requirements.
