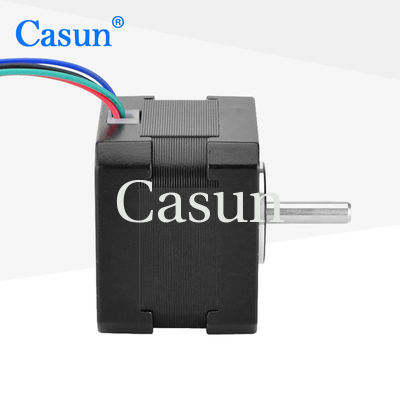

424234mm 2 Phase Stepping Motor Nema 17 0.6A With CE ISO RHO Certification

424234mm 2 Phase Stepping Motor Nema 17 0.6A With CE ISO RHO Certification

Nama merek:	Casun
Nomor Model:	42SHD4071-24BH
MOQ:	1 buah
Harga:	$3.14-$5
Ketentuan Pembayaran:	D/A, T/T, L/C, D/P
Kemampuan Pasokan:	40000+Buah+Bulan

Informasi Rinci

Deskripsi Produk

Informasi Rinci

Tempat asal:

Cina

Sertifikasi:

CE,ROHS,ISO

Langkah Malaikat:

1,8°

Memegang Torsi:

320mN.m

Saat ini:

0,6A

Panjang motor:

34 MM

Batang:

Penggilingan Poros Datar Panjang 24mm

Disesuaikan:

Motor dapat dirancang & diproduksi dengan permintaan khusus.

Kemasan rincian:

Karton: 36x29x14cm

Menyoroti:

2 Phase Stepping Motor Nema 17

0.6A 2 Phase Stepping Motor

Deskripsi Produk

42*42**34mm With CE ISO RHO Certification 2 Phase Stepping Motor Nema 17

The 42mm stepper motor is commonly used in 3D printers to drive the position and movement of the print head.

High precision and reliability enable printers to accurately perform printing operations.

Features:

Bipolar or unipolar versions available
We provide customized services and welcome contract manufacturing
Focused on drivetrain solutions
Professional research and development manufacturing
Our engineers will respond within 48 hours to provide the best solution

Appearance

42*42*34mm 2 Phase Stepping Motor Nema 17 0.6A With CE ISO RHO Certification 0

Dimensions

42*42*34mm 2 Phase Stepping Motor Nema 17 0.6A With CE ISO RHO Certification 1

Motor Specifications

Step Angel	1.8 °
Fram Size	42 mm
Number of Phase	2 Phase
Rated Current	0.6 A
Holding Torque	320 mN.m
Resistance	20 ohm
Inductance	29 mH
Rotor Inertia	38 g-cm²
Motor weight	0.2 kg
Number of leads	4
Connection	Bipolar

Operating Specifications

Step Angle: 1.8°

Maximum Temperature :80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range (%) :85% or less, non-condensing

Magnet Wire Insulation :Class B 130 deg C

Insulation Resistance :100M Ohm at 500 VDC

Dielectric Strength :500 VDC for 1 min

Torque Curves

Submodels

Model	Holding Torque	Step Angle	Motor Length	Type of Shaft	Rated Current
42SHD4950	0.13N.m	1.8°	20mm	D Shaft-20mm	1.0A
42SHD4003	0.26N.m	1.8°	34mm	D Shaft-20mm	0.4A
42SHD0261	0.45N.m	1.8°	40mm	D Shaft-20mm	1.68A
42SHD4425	0.59N.m	1.8°	48mm	D Shaft-24mm	2.0A
42SHD4813	0.8N.m	1.8°	60mm	D Shaft-24mm	2.1A

Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs

Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:

Encoder	Brake	Gearbox	Shaft

Please click the "Get a quote" button below to tell us your requirements.
