Bipolar 2 Phase NEMA 17 Stepper Motor 1.0A 0.3N.M For Robot

Bipolar 2 Phase NEMA 17 Stepper Motor 1.0A 0.3N.M For Robot

Nama merek:	Casun
Nomor Model:	42SHD4034-20B1H
MOQ:	1 buah
Harga:	$3.14-$5
Ketentuan Pembayaran:	D/A, T/T, L/C, D/P
Kemampuan Pasokan:	40000+Buah+Bulan

Informasi Rinci

Deskripsi Produk

Informasi Rinci

Tempat asal:

Cina

Sertifikasi:

CE,ROHS,ISO

Langkah Malaikat:

1,8°

Memegang Torsi:

300mN.m

Saat ini:

1.0A

Panjang motor:

34 MM

Batang:

Penggilingan Poros datar Panjang 20mm

Disesuaikan:

Motor dapat dirancang & diproduksi dengan permintaan khusus.

Kemasan rincian:

Karton: 36x29x14cm

Menyoroti:

Bipolar NEMA 17 Stepper Motor

0.3N.M NEMA 17 Stepper Motor

Deskripsi Produk

2 Phase NEMA 17 Stepper Motor 1.0A 0.3N.M For Type Of Robot

In a stationary state, a 42mm stepper motor usually only needs to maintain a small amount of current to maintain its current position.

It can be used for various types of robots, including industrial robots, service robots, and medical robots, to control joint movements.

Features:

Bipolar or unipolar versions available
Providing personalized services
A ten-year warranty for confident purchases
CE and RoHS approved
Our engineers will contact you within two days to offer the most effective solution

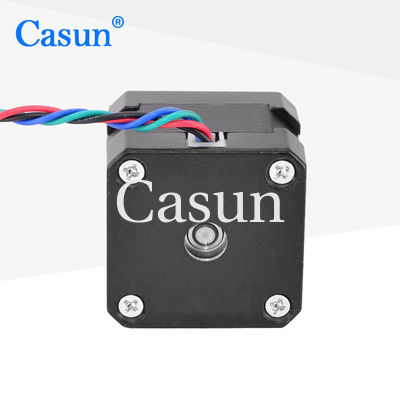

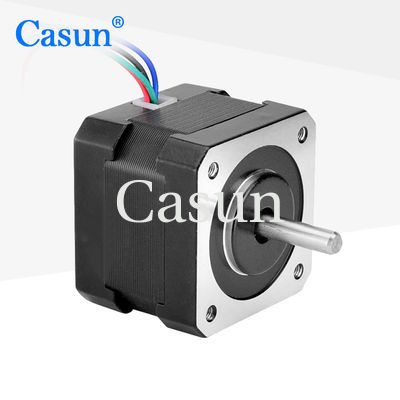

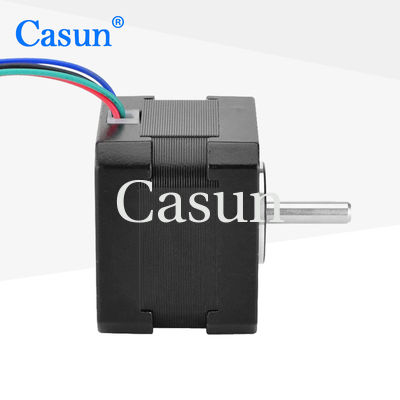

Appearance

Bipolar 2 Phase NEMA 17 Stepper Motor 1.0A 0.3N.M For Robot 0

Dimensions

Bipolar 2 Phase NEMA 17 Stepper Motor 1.0A 0.3N.M For Robot 1

Motor Specifications

Step Angel	1.8 °
Fram Size	42 mm
Number of Phase	2 Phase
Rated Current	1.0 A
Holding Torque	300 mN.m
Resistance	5.0 ohm
Inductance	6.2 mH
Rotor Inertia	38 g-cm²
Motor weight	0.2 kg
Number of leads	4
Connection	Bipolar

Operating Specifications

Step Angle: 1.8°

Maximum Temperature :80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range (%) :85% or less, non-condensing

Magnet Wire Insulation :Class B 130 deg C

Insulation Resistance :100M Ohm at 500 VDC

Dielectric Strength :500 VDC for 1 min

Torque Curves

Submodels

Model	Holding Torque	Step Angle	Motor Length	Type of Shaft	Rated Current
42SHD4950	0.13N.m	1.8°	20mm	D Shaft-20mm	1.0A
42SHD4003	0.26N.m	1.8°	34mm	D Shaft-20mm	0.4A
42SHD0261	0.45N.m	1.8°	40mm	D Shaft-20mm	1.68A
42SHD4425	0.59N.m	1.8°	48mm	D Shaft-24mm	2.0A
42SHD4813	0.8N.m	1.8°	60mm	D Shaft-24mm	2.1A

Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs

Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:

Encoder	Brake	Gearbox	Shaft

Please click the "Get a quote" button below to tell us your requirements.
