NEMA 23 Hybrid Stepping Motor 76mm Body 1.5N.M For CNC Machine

NEMA 23 Hybrid Stepping Motor 76mm Body 1.5N.M For CNC Machine

Nama merek:	Casun
Nomor Model:	57SHD4809-24
MOQ:	1 buah
Harga:	$3.14-$5
Ketentuan Pembayaran:	D/A, T/T, L/C, D/P
Kemampuan Pasokan:	40000+Buah+Bulan

Informasi Rinci

Deskripsi Produk

Informasi Rinci

Tempat asal:

Cina

Sertifikasi:

CE,ROHS,ISO

Langkah Malaikat:

1,8°

Memegang Torsi:

2,0Nm

Saat ini:

2.8A

Panjang motor:

76mm

Batang:

Poros Bulat Panjang 24mm

Diameter Poros:

8mm

Disesuaikan:

Motor dapat dirancang & diproduksi dengan permintaan khusus.

Kemasan rincian:

Karton: 36x29x14cm

Menyoroti:

NEMA 23 Hybrid Stepping Motor

Hybrid Stepping Motor 76mm

Hybrid Stepping Motor For CNC Machine

Deskripsi Produk

Hybrid Stepping Motor NEMA 23 76mm body 1.5N.m for CNC Machine

The movement is stable and reliable, without any loss of step, ensuring the reliability and stability of the system.

Excellent performance in application scenarios that require precise position control, such as automation equipment, robots, CNC machining, etc.

Features:

High torque and high precision
Each model of our stepper motor is suitable for various applications
We are experts in drivetrain solutions
We are open to different contract manufacturing arrangements
Our engineers will contact you within 48 hours to offer the optimal solution

Motor Specifications

Step Angel	1.8 °
Fram Size	57 mm
Number of Phase	2 Phase
Rated Current	2.8 A
Holding Torque	2 N.m
Resistance	1.5 ohm
Inductance	5.0 mH
Rotor Inertia	460 g-cm²
Motor weight1	1 kg
Number of leads	4
Connection	Bipolar

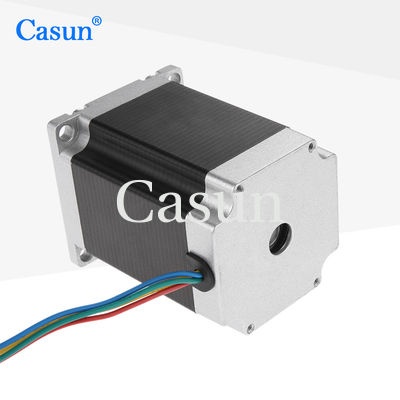

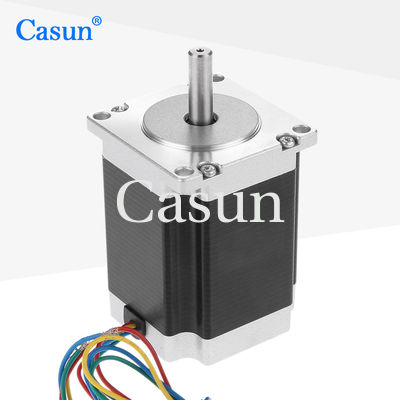

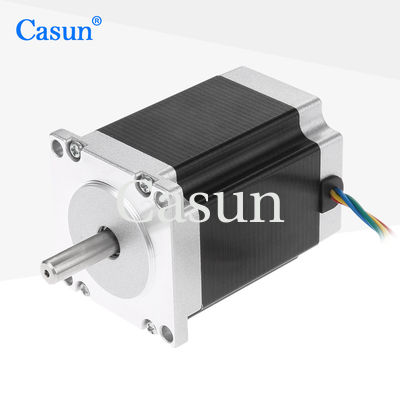

Appearance

NEMA 23 Hybrid Stepping Motor 76mm Body 1.5N.M For CNC Machine 0

Dimensions

NEMA 23 Hybrid Stepping Motor 76mm Body 1.5N.M For CNC Machine 1

Operating Specifications

Step Angle: 1.8°

Maximum Temperature :80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range (%) :85% or less, non-condensing

Magnet Wire Insulation :Class B 130 deg C

Insulation Resistance :100M Ohm at 500 VDC

Dielectric Strength :500 VDC for 1 min

Torque Curves

Submodels

Model	Holding Torque	Step Angle	Length	Type of Shaft	Rated Current
57SHD4013-21B	0.6N.m	1.8°	41mm	D Shaft-21mm	1.0A
57SHD4415-21B	1.1N.m	1.8°	54mm	D Shaft-21mm	3.0A
57SHD4816-21B	2.0N.m	1.8°	76mm	D Shaft-21mm	3.0A
57SHD4913-21B	2.5N.m	1.8°	83mm	D Shaft-21mm	3.0A
57SHD4934-20B	3.0N.m	1.8°	100mm	D Shaft-20mm	3.0A

Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs

Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:

Encoder	Brake	Gearbox	Shaft

Please click the "Get a quote" button below to tell us your requirements.
