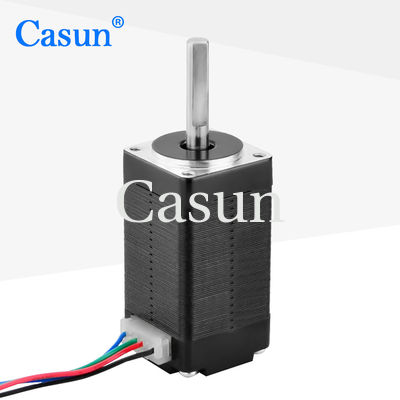

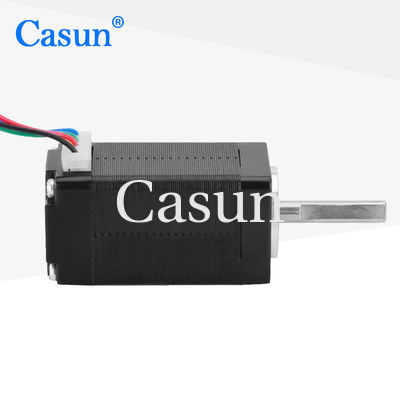

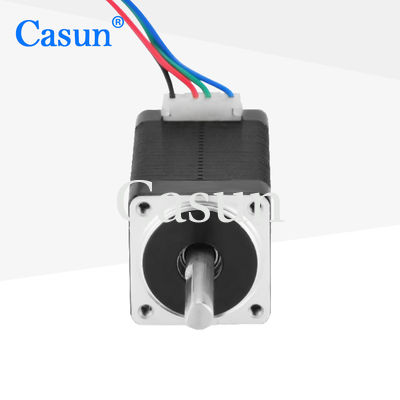

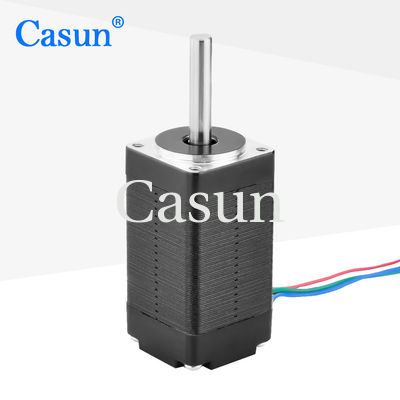

2 Phase 20*38mm Nema 8 0.8A Bipolar Stepper Motor Customization For Mini Rotating Light

2 Phase 20*38mm Nema 8 0.8A Bipolar Stepper Motor Customization For Mini Rotating Light

Nama merek:	Casun
Nomor Model:	20SHD0259-15B2
MOQ:	1 buah-10 buah
Harga:	US $6.14.00 - 10.00/ Piece
Ketentuan Pembayaran:	L/C, D/A, D/P, T/T
Kemampuan Pasokan:	100000+pcs+Bulan

Informasi Rinci

Deskripsi Produk

Informasi Rinci

Tempat asal:

Cina

Sertifikasi:

CE,ROHS,ISO

Sudut langkah:

1,8 derajat

Fase:

Nilai Tegangan:

4.8V

Nilai arus:

0,8A

Memegang Torsi:

40mN.m

Berat:

0,08KG

Aplikasi:

Lampu Berputar Mini

Disesuaikan:

Motor dapat dirancang & diproduksi dengan permintaan khusus.

Kemasan rincian:

Karton: 38x29xc14m

Menyoroti:

0.8A Bipolar Stepper Motor

Nema 8 Bipolar Stepper Motor

2 Phase Bipolar Stepper Motor

Deskripsi Produk

2 Phase 20*38mm Nema 8 0.8A Stepper Motor Customization For Mini Rotating Light

Moteur Pas A Pas New Size Black Color 20*20mm Nema 8 Stepper Motor For Mini Rotating Light With CE

Micro 20*38mm 0.3A Bipolar Nema 8 Stepper Motor 2 Phase 4.8V Stepper Motor for Mini Rotating Light

2 Phase-4.8V Nema 8 Bipolar 1.8 degree Stepping Motor 20*20*38mm 40mN.m 0.8A for Mini Rotating Light

Appearance

Dimensions

Motor Specifications

Step Angel	1.8 °
Fram Size	20 mm
Number of Phase	2 Phase
Rated Current	0.8 A
Holding Torque	40 mN.m
Resistance	6 ohm
Inductance	2.7 mH
Rotor Inertia	3.8 g-cm²
Motor weight	0.08 kg
Number of leads	4
Connection	Bipolar

Torque Curves

Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs

Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

FAQ

1. who are we?

We are based in Guangdong, China, start from 2011,sell to Domestic Market(63.00%),Western Europe(12.00%),North America(9.00%),Eastern Asia(8.00%),Northern Europe(2.00%),Eastern Europe(00.00%),Southeast Asia(00.00%),Oceania(00.00%),Mid East(00.00%),Southern Europe(00.00%),South Asia(00.00%). There are total about 51-100 people in our office.

2. how can we guarantee quality?

Always a pre-production sample before mass production;

Always final Inspection before shipment;

3.what can you buy from us?

Stepper Motor,BLDC Motor

4. why should you buy from us not from other suppliers?

We are specialized in producing and selling stepper motors for more than 11 years.

5. what services can we provide?

Accepted Delivery Terms: FOB,CFR,CIF,EXW,Express Delivery；

Accepted Payment Currency:USD,CNY;

Accepted Payment Type: T/T,L/C,D/P D/A,,PayPal;

Language Spoken:English,Chinese,Japanese

Options:
Encoder | Brake | Gearbox | Connector

Please click the "Get a quote" button below to tell us your requirements.
