Multilayer Nema 16 Stepper Motor 39*40mm 12V For Medical Device CE Certifications

Multilayer Nema 16 Stepper Motor 39*40mm 12V For Medical Device CE Certifications

Nama merek:	CASUN
Nomor Model:	E39C-33
MOQ:	1 buah-10 buah
Harga:	US $11.00 - 14.00/ Piece
Ketentuan Pembayaran:	L/C, D/A, D/P, T/T
Kemampuan Pasokan:	100000+pcs+Bulan

Informasi Rinci

Deskripsi Produk

Informasi Rinci

Tempat asal:

Cina

Sertifikasi:

CE,ROHS,ISO

Sudut langkah:

1,8 derajat

Fase:

Nilai Tegangan:

12V

Nilai arus:

0,48A

Memegang Torsi:

200mN.m

Merek:

CASUN

Jenis:

Motor stepper berlapis-lapis

Disesuaikan:

Motor dapat dirancang & diproduksi dengan permintaan khusus.

Kemasan rincian:

Karton: 38x29xc14m

Menyoroti:

Multilayer Nema 16 Stepper Motor

12V Nema 16 Stepper Motor

Deskripsi Produk

Motori Per Sta CASUN R&D Multilayer Nema 16 Stepper Motor 39*40mm For Medical Device With CE Certifications

A motor multilayer 39*40mm, 0.48A bipolar nema 16 stepper motor for a medical device, two-phase, and twelve volts

Medical equipment 1.8 degree 2 Phase-12V Nema 16 Bipolar Multilayer Stepping Motor 200mN.m 39*39*40mm

Appearance

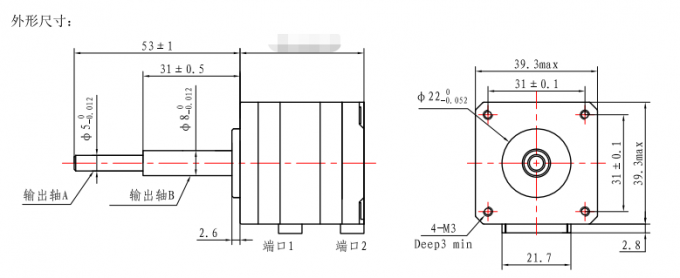

Dimensions

Motor Specifications

Step Angel	1.8 °
Fram Size	40 mm
Number of Phase	2 Phase
Rated Current	0.48 A
Holding Torque	200 mN.m
Resistance	22 ohm
Inductance	25 mH
Rotor Inertia	- g-cm²
Motor weight	- kg
Number of leads	4
Connection	Bipolar

Torque Curves

Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs

Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

FAQ

1. who are we?

We are based in Guangdong, China, start from 2011,sell to Domestic Market(63.00%),Western Europe(12.00%),North America(9.00%),Eastern Asia(8.00%),Northern Europe(2.00%),Eastern Europe(00.00%),Southeast Asia(00.00%),Oceania(00.00%),Mid East(00.00%),Southern Europe(00.00%),South Asia(00.00%). There are total about 51-100 people in our office.

2. how can we guarantee quality?

Always a pre-production sample before mass production;

Always final Inspection before shipment;

3.what can you buy from us?

Stepper Motor,BLDC Motor

4. why should you buy from us not from other suppliers?

We are specialized in producing and selling stepper motors for more than 11 years.

5. what services can we provide?

Accepted Delivery Terms: FOB,CFR,CIF,EXW,Express Delivery；

Accepted Payment Currency:USD,CNY;

Accepted Payment Type: T/T,L/C,D/P D/A,,PayPal;

Language Spoken:English,Chinese,Japanese

Options:
Encoder | Brake | Gearbox | Connector

Please click the "Get a quote" button below to tell us your requirements.
