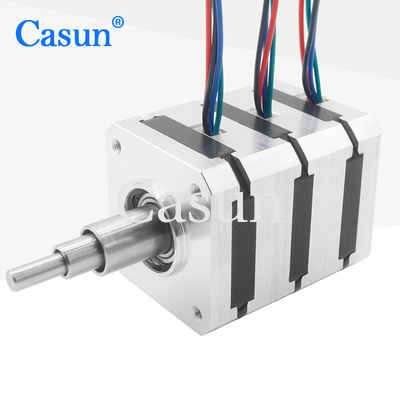

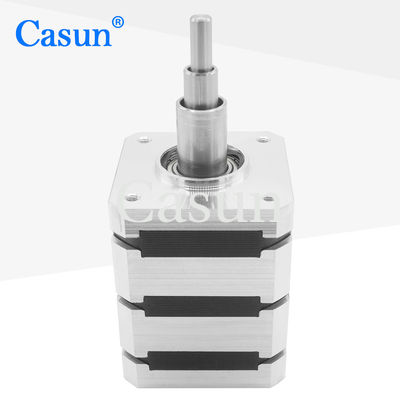

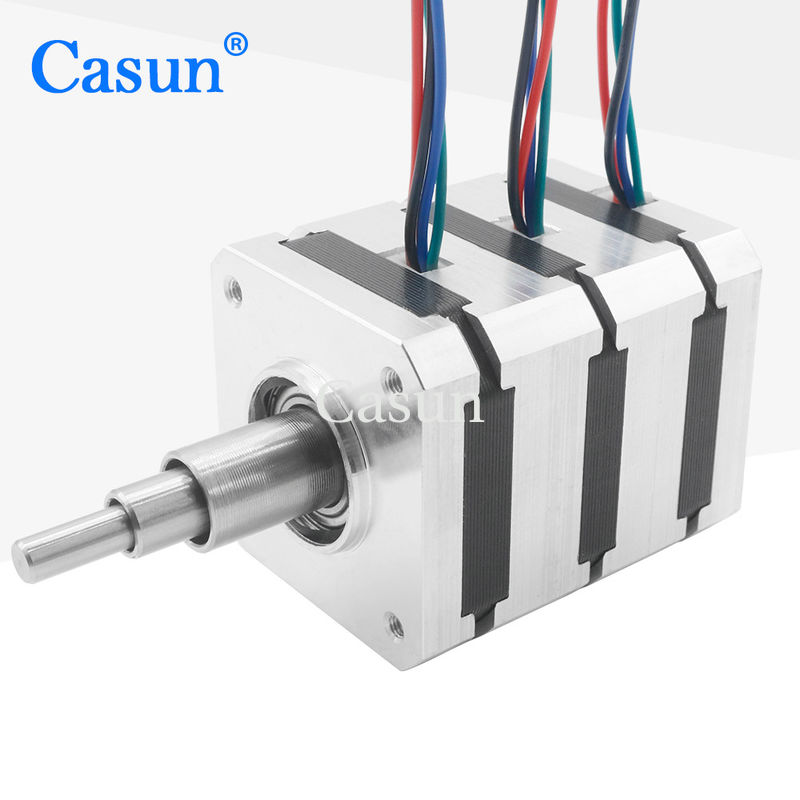

0.4A NEMA17 E42 Serious Bipolar Stepper Motor For Automation Equipment

0.4A NEMA17 E42 Serious Bipolar Stepper Motor For Automation Equipment

Nama merek:	Casun
Nomor Model:	E42S-01-122440-300
MOQ:	1 buah
Harga:	$18-$23
Ketentuan Pembayaran:	D/A, T/T, L/C, D/P
Kemampuan Pasokan:	40000+Buah+Bulan

Informasi Rinci

Deskripsi Produk

Informasi Rinci

Tempat asal:

Cina

Sertifikasi:

CE,ROSH,ISO

Langkah Malaikat:

1,8°

Memegang Torsi:

200mN.m

Saat ini:

0.4a

Panjang motor:

57,5mm

Batang:

Panjang 12/24/40mm

Voltase:

12V

Tape:

Multilayer

Warna:

Hitam

Disesuaikan:

Motor dapat dirancang & diproduksi dengan permintaan khusus.

Kemasan rincian:

Karton: 36x29x14cm

Menyoroti:

0.4A Bipolar Stepper Motor

Bipolar Stepper Motor For Automation Equipment

Deskripsi Produk

nema17 hybrid stepper motor 42x42x57.5mm 200mN.m Multisport motor

The Nema17 stepper motor you described has the following specifications:

Step angle: 1.8 degrees per step
Motor size: 42 x 42mm
Rated current: 0.4A
Holding torque: 2000mN.m
Weight: 0.3kg

Movement method:
1. The output shaft A can rotate (controlled by port 2);
2. The output shaft B can rotate (controlled by port 1).
Note: The above two motion modes are controlled by different ports.
Each motion mode can run independently at the same time without interfering with each other.

Motor Specifications

Step Angel	1.8 °
Fram Size	42mm
Number of Phase	2 Phase
Rated Current	0.4A
Holding Torque	200mN.m
Resistance	30ohm
Inductance	45mH
Rotor Inertia	20 g-cm²
Motor weight	0.3kg
Number of leads	4
Connection	Bipolar

Appearance

Dimensions

Torque Curves

Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs

Options:
Encoder | Brake | Gearbox | Connector

Please click the "Get a quote" button below to tell us your requirements.
