NEMA 14 Bipolar Stepper Motor Precision Structure 120mN.M

NEMA 14 Bipolar Stepper Motor Precision Structure 120mN.M

Nama merek:	Casun
Nomor Model:	E39C-09
MOQ:	1 buah
Harga:	$18-$23
Ketentuan Pembayaran:	D/A, T/T, L/C, D/P
Kemampuan Pasokan:	40000+Buah+Bulan

Informasi Rinci

Deskripsi Produk

Informasi Rinci

Tempat asal:

Cina

Sertifikasi:

CE,ROSH,ISO

Langkah Malaikat:

1,8°

Memegang Torsi:

120mN.m

Saat ini:

0.4a

Panjang motor:

43.6mm

Batang:

Poros Bulat Panjang 24mm

Voltase:

12V

Disesuaikan:

Motor dapat dirancang & diproduksi dengan permintaan khusus.

Kemasan rincian:

Karton: 36x29x14cm

Menyoroti:

NEMA 14 Bipolar Stepper Motor

120mN.M Bipolar Stepper Motor

Precision Structure Bipolar Stepper Motor

Deskripsi Produk

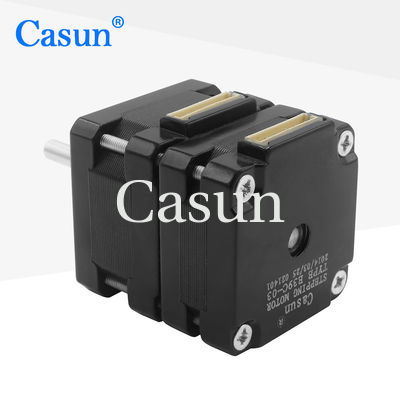

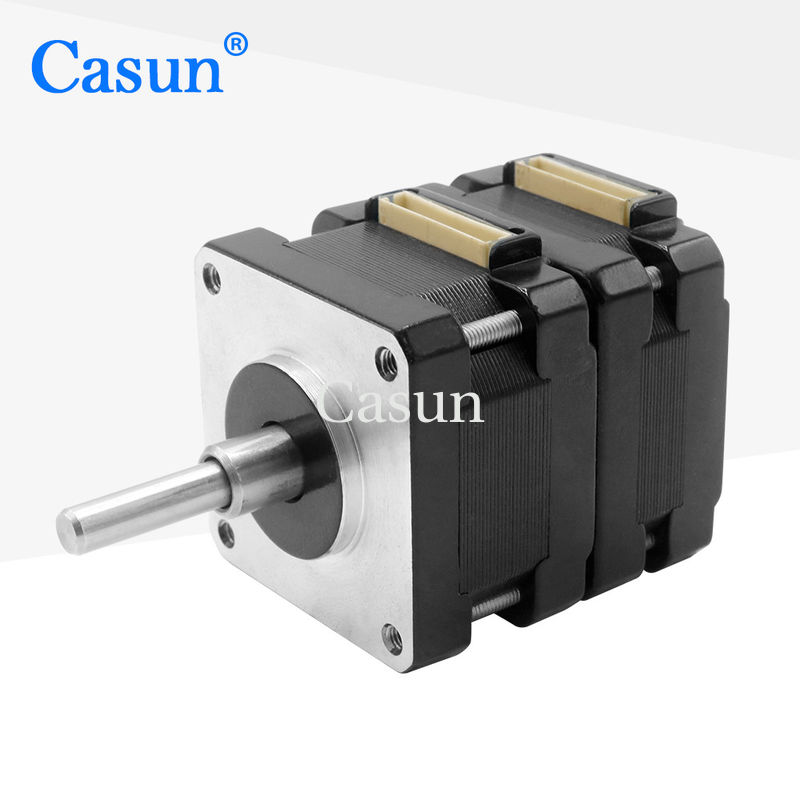

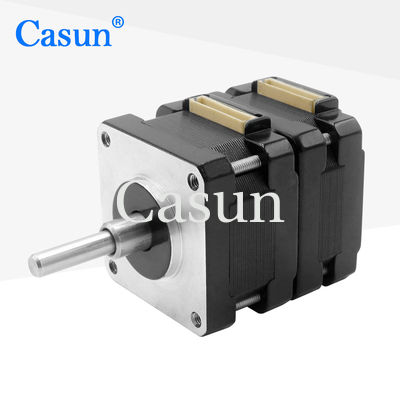

nema14 hybrid stepper motor 39x39x43.6mm 120mN.m Multisport motor

The Nema14 stepper motor you described has the following specifications:

Step angle: 1.8 degrees per step
Motor size: 39 x 39mm
Rated current: 0.4A
Holding torque: 120mN.m
Weight: 0.3kg

Movement method:
1. The output shaft A can rotate (controlled by port 2);
2. The output shaft B can rotate (controlled by port 1).
Note: The above two motion modes are controlled by different ports.
Each motion mode can run independently at the same time without interfering with each other.

Motor Specifications

Step Angel	1.8 °
Fram Size	39mm
Number of Phase	2 Phase
Rated Current	0.4A
Holding Torque	120mN.m
Resistance	30ohm
Inductance	45mH
Rotor Inertia	20 g-cm²
Motor weight	0.3kg
Number of leads	4
Connection	Bipolar

Appearance

Dimensions

Torque Curves

Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs

Options:
Encoder | Brake | Gearbox | Connector

Please click the "Get a quote" button below to tell us your requirements.
