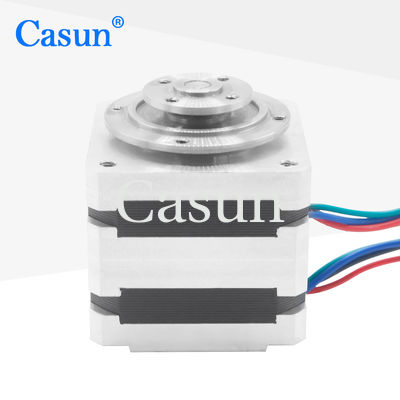

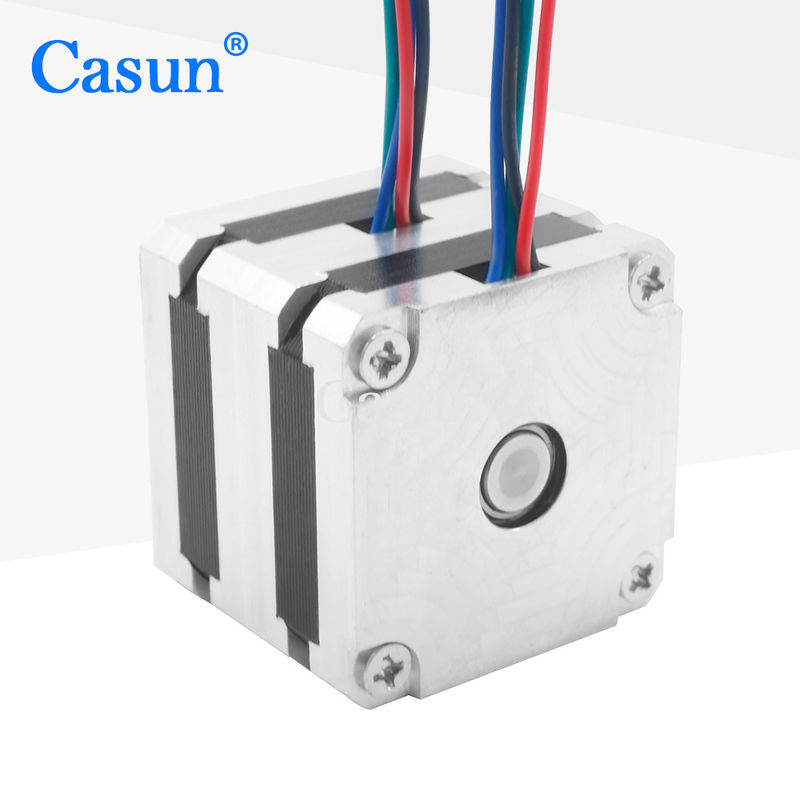

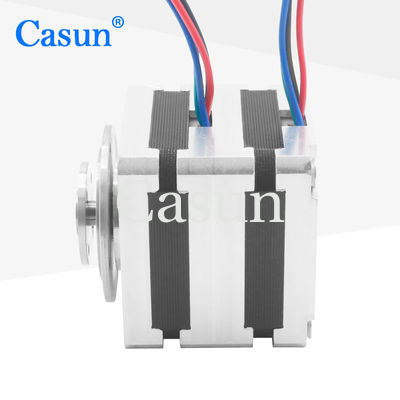

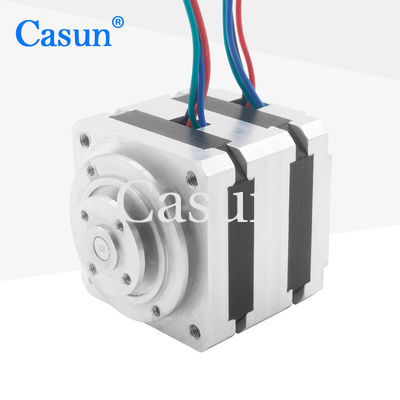

NEMA 14 Multilayer Bipolar Stepper Motor 150m.N For Industry Robot

NEMA 14 Multilayer Bipolar Stepper Motor 150m.N For Industry Robot

Nama merek:	Casun
Nomor Model:	E39D40044004-05
MOQ:	1 buah
Harga:	$18-$23
Ketentuan Pembayaran:	D/A, T/T, L/C, D/P
Kemampuan Pasokan:	40000+Buah+Bulan

Informasi Rinci

Deskripsi Produk

Informasi Rinci

Tempat asal:

Cina

Sertifikasi:

CE,ROSH,ISO

Langkah Malaikat:

1,8°

Memegang Torsi:

150mN.m

Saat ini:

0,8A

Panjang motor:

35mm

Batang:

Poros Bulat Panjang 9.2mm

Voltase:

Disesuaikan:

Motor dapat dirancang & diproduksi dengan permintaan khusus.

Kemasan rincian:

Karton: 36x29x14cm

Menyoroti:

Multilayer Bipolar Stepper Motor

Bipolar Stepper Motor For Industry Robot

Bipolar Stepper Motor 150m.N

Deskripsi Produk

Multisport Motor NEMA 14 Multilayer Stepper Motor 150m.N For Industry Robot

nema14 hybrid stepper motor 39x39x35mm 150mN.m Multisport motor

The Nema14 stepper motor you described has the following specifications:

Step angle: 1.8 degrees per step
Motor size: 39 x 39mm
Rated current: 0.8A
Holding torque: 150mN.m
Weight: 0.22kg (4.2 oz)

This is a motor independently developed and patented by our company.

E39 series multi-motion stepping motor is a new type of patented stepping motor (patent number: ZL2013 2 0370752.8).
Non-interfering, precise structure, shaft runout less than 0.025, suitable for industrial robots, stage lights and other automation control fields.

Motor Specifications

Step Angel	1.8 °
Fram Size	39mm
Number of Phase	2 Phase
Rated Current	0.4A
Holding Torque	150mN.m
Resistance	30ohm
Inductance	45mH
Rotor Inertia	20 g-cm²
Motor weight	0.12kg
Number of leads	4
Connection	Bipolar

Appearance

Dimensions

Torque Curves

Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs

Options:
Encoder | Brake | Gearbox | Connector

Please click the "Get a quote" button below to tell us your requirements.
