42X42X48mm 1.8 Degree 2 Phase Nema 11 Stepper Motor With Encoder 0.54N.M For Robot

42X42X48mm 1.8 Degree 2 Phase Nema 11 Stepper Motor With Encoder 0.54N.M For Robot

Nama merek:	Casun
Nomor Model:	42SHD4419-24BQH
MOQ:	1 buah
Harga:	$3.14-$5
Ketentuan Pembayaran:	D/A, T/T, L/C, D/P
Kemampuan Pasokan:	40000+Buah+Bulan

Informasi Rinci

Deskripsi Produk

Informasi Rinci

Tempat asal:

Cina

Sertifikasi:

CE,ROHS,ISO

Langkah Malaikat:

1,8°

Memegang Torsi:

540mN.m

Saat ini:

1,68A

Panjang motor:

48mm

Batang:

Penggilingan Poros Datar Panjang 24mm

Disesuaikan:

Motor dapat dirancang & diproduksi dengan permintaan khusus.

Kemasan rincian:

Karton: 36x29x14cm

Menyoroti:

1.8 Degree Nema 11 Stepper Motor

Nema 11 Stepper Motor With Encoder

Deskripsi Produk

42X42X48mm 1.8 Degree 2 Phase Nema 11 Stepper Motor With Encoder 0.54N.M For Robot

The closed-loop motor achieves smooth motion by adjusting the current and speed of the motor, reducing vibration and noise.

Advantages of high precision, high responsiveness, high reliability, and smooth motion.

Features:

High-tech industry and electronic industry equipment must possess "multiple international certifications."
Our engineers will contact you within 48 hours to offer the optimal solution.
Available in single or double shaft versions
We possess expertise in drivetrain solutions
Dealers wanted!

Motor Specifications

Step Angel	1.8 °
Fram Size	42 mm
Number of Phase	2 Phase
Rated Current	1.68 A
Holding Torque	540 mN.m
Resistance	1.65 ohm
Inductance	2.8 mH
Rotor Inertia	82 g-cm²
Motor weight	0.5 kg
Number of leads	4
Insulation class	Class B

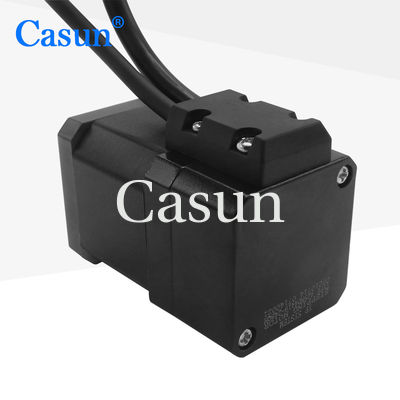

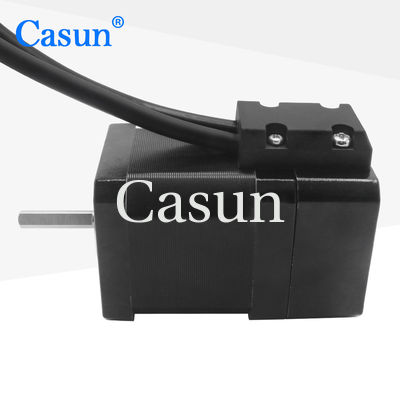

Appearance

42X42X48mm 1.8 Degree 2 Phase Nema 11 Stepper Motor With Encoder 0.54N.M For Robot 0

Dimensions

42X42X48mm 1.8 Degree 2 Phase Nema 11 Stepper Motor With Encoder 0.54N.M For Robot 1

Operating Specifications

Step Angle: 1.8°

Maximum Temperature :80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range (%) :85% or less, non-condensing

Magnet Wire Insulation :Class B 130 deg C

Insulation Resistance :100M Ohm at 500 VDC

Dielectric Strength :500 VDC for 1 min

Torque Curves

Submodels

Model	Holding Torque	Step Angle	Motor Length	Type of Shaft	Rated Current
42SHD4950	0.13N.m	1.8°	20mm	D Shaft-20mm	1.0A
42SHD4003	0.26N.m	1.8°	34mm	D Shaft-20mm	0.4A
42SHD0261	0.45N.m	1.8°	40mm	D Shaft-20mm	1.68A
42SHD4425	0.59N.m	1.8°	48mm	D Shaft-24mm	2.0A
42SHD4813	0.8N.m	1.8°	60mm	D Shaft-24mm	2.1A

Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs

Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:

Encoder	Brake	Gearbox	Shaft

Please click the "Get a quote" button below to tell us your requirements.
