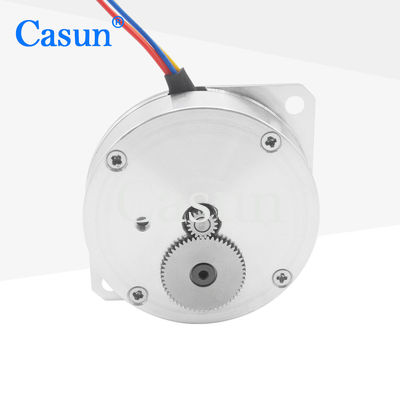

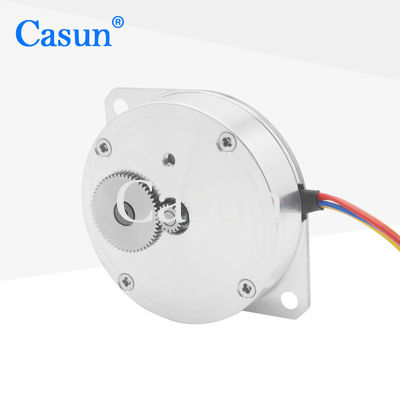

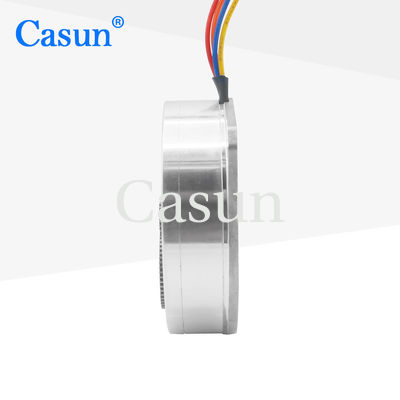

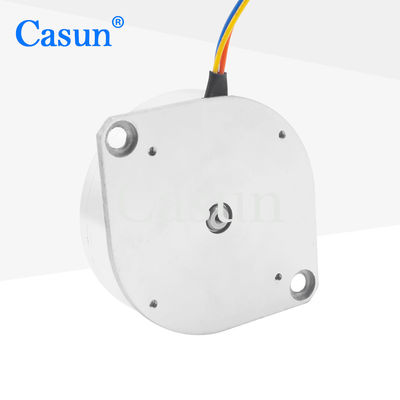

1.8 Degree Thin Stepper Motor Flat Motor 52mN.m 464613.2mm 1.0A for Feeder

1.8 Degree Thin Stepper Motor Flat Motor 52mN.m 464613.2mm 1.0A for Feeder

Nama merek:	Casun
Nomor Model:	46SHY4401-2A1
MOQ:	1 buah
Harga:	$9.68-13.46
Ketentuan Pembayaran:	D/A, T/T, L/C, D/P
Kemampuan Pasokan:	40000+Buah+Bulan

Informasi Rinci

Deskripsi Produk

Informasi Rinci

Tempat asal:

Cina

Sertifikasi:

CE,ROHS,ISO

Tubuh:

11,5mm

Sudut langkah:

1,8°

Memegang Torsi:

52mN.m

Massa:

100 gram

Disesuaikan:

Motor dapat dirancang & diproduksi dengan permintaan khusus.

Kemasan rincian:

Karton: 36x29x14cm

Menyoroti:

Bipolar Micro Flat Stepper Motor

Nema 11 Flat Stepper Motor

Deskripsi Produk

Bipolar Micro Flat Stepper Motor 15MN.M Nema 11 Stepper Motor Flat

The motion process of a 46mm flat stepper motor is usually very smooth, which helps to reduce vibration and noise

To lessen vibration and produce a greater step resolution, use with a microstepping driver.

Features:

Versions in unipolar or bipolar are offered.
Each stepper motor type may be used in a variety of situations
Offer "multiple international certifications" for high-tech and electrical industrial hardware
Seasoned expert in drivetrain solutions
Upon request, modifications

Dimensions

Motor Specifications

Step Angel	1.8 °
Fram Size	46 mm
Number of Phase	2 Phase
Rated Current	1.0 A
Holding Torque	52 mN.m
Resistance	-
Inductance	1.7 mH
Rotor Inertia	7 g-cm²
Motor weight	0.1 kg
Number of leads	4
Connection	Bipolar

Operating Specifications

Step Angle: 1.8°

Maximum Temperature :80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range (%) :85% or less, non-condensing

Magnet Wire Insulation :Class B 130 deg C

Insulation Resistance :100M Ohm at 500 VDC

Dielectric Strength :500 VDC for 1 min

Torque Curves

Submodels

Model	Motor Length	Current	Holding Torque

P28SHD4611	9.5mm	0.5A	16mN.m

P28SHD4701	10.6mm	0.5A	20mN.m

P28SHD4750	13-15mm	0.5A	25mN.m

P28SHD4950	17.9mm	0.5A	35mN.m

Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs

Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:
Encoder | Brake | Gearbox | Shaft

1.8 Degree Thin Stepper Motor Flat Motor 52mN.m 46*46*13.2mm 1.0A for Feeder 1

Please click the "Get a quote" button below to tell us your requirements.
