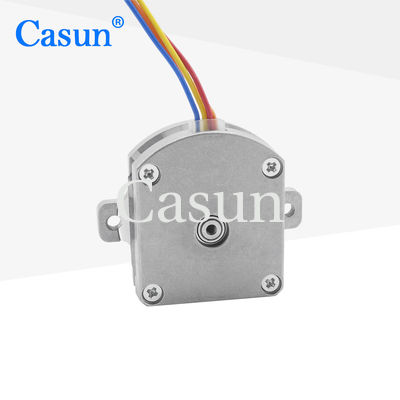

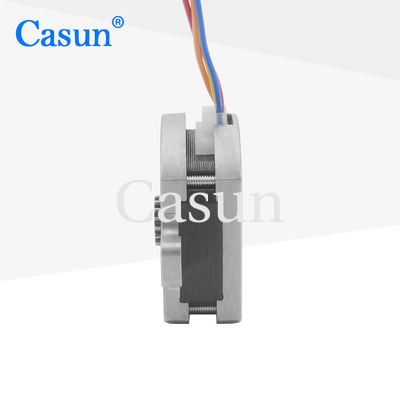

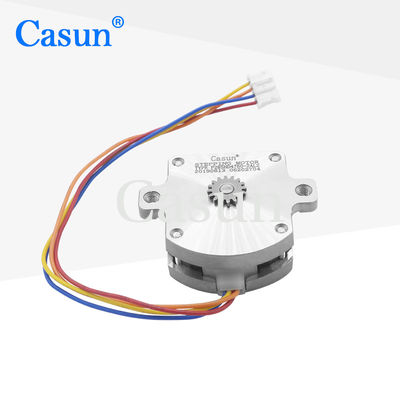

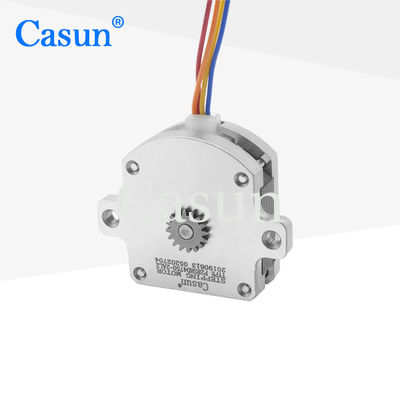

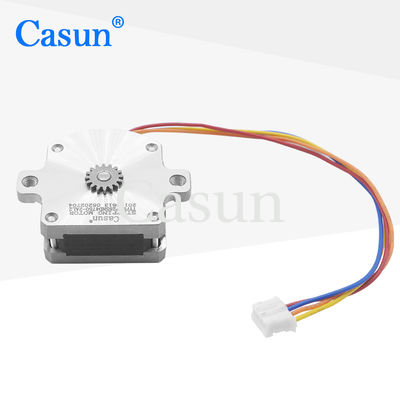

0.5A CASUN Flat Nema 11 Stepper Motor 25mN.M For SMT Machine

0.5A CASUN Flat Nema 11 Stepper Motor 25mN.M For SMT Machine

Nama merek:	Casun
Nomor Model:	P28SHD4750-2AL2
MOQ:	1 buah-10 buah
Harga:	$11.9-$15
Ketentuan Pembayaran:	D/A, T/T, L/C, D/P
Kemampuan Pasokan:	40000+Buah+Bulan

Informasi Rinci

Deskripsi Produk

Informasi Rinci

Tempat asal:

Cina

Sertifikasi:

CE,ROHS,ISO

Sudut langkah:

1,8 derajat

Fase:

Nilai Tegangan:

1.55V

Nilai arus:

0,5A

Memegang Torsi:

25mN.m

Disesuaikan:

Motor dapat dirancang & diproduksi dengan permintaan khusus.

Kemasan rincian:

Karton: 36x29x14cm

Menyoroti:

Flat Nema 11 Stepper Motor

25mN.M Nema 11 Stepper Motor

Deskripsi Produk

0.5A CASUN Flat Nema 11 Stepper Motor 25mN.m Stepping Motor for SMT Machine with CE

Step motor for pancakes Micro flat stepper motor, 1.8 degree, 0.5 A, 25mN.m

In a range of sizes, the Hybrid Stepper Motor Series provides strong holding torque.

To lessen vibration and achieve a greater step resolution, use with a microstepping driver.

Select a standard version or ask for a specially configured version.

Features:

Bipolar or unipolar versions available
Hybrid stepper construction
Available in single or double shaft versions
CE and RoHS approved
Customizations on request

Dimensions

Motor Specifications

Step Angel	1.8 °
Fram Size	28mm
Number of Phase	2 Phase
Rated Current	0.5Amp
Holding Torque	25 mN.m
Resistance	3.1 om
Inductance	0.95mH
Rotor Inertia	2 g-cm²
Motor weight	40g
Number of leads	4
Connection	Bipolar

Operating Specifications

Step Angle: 1.8°

Maximum Temperature :80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range (%) :85% or less, non-condensing

Magnet Wire Insulation :Class B 130 deg C

Insulation Resistance :100M Ohm at 500 VDC

Dielectric Strength :500 VDC for 1 min

Torque Curves

Submodels

Model	Motor Length	Current	Holding Torque

P28SHD4611	9.5mm	0.5A	16mN.m

P28SHD4701	10.6mm	0.5A	20mN.m

P28SHD4750	13-15mm	0.5A	25mN.m

P28SHD4950	17.9mm	0.5A	35mN.m

Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs

Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:
Encoder | Brake | Gearbox | Shaft

0.5A CASUN Flat Nema 11 Stepper Motor 25mN.M For SMT Machine 1

Please click the "Get a quote" button below to tell us your requirements.
