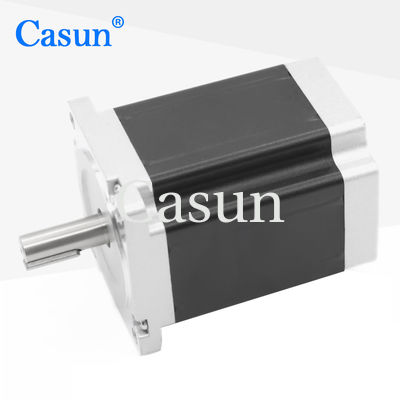

Motor Step 5.5A 12N.M 15kg NEMA 34 Stepper Motor For CNC Engraving Machine

Motor Step 5.5A 12N.M 15kg NEMA 34 Stepper Motor For CNC Engraving Machine

Nama merek:	Casun
Nomor Model:	86SHD4505-37
MOQ:	1 buah
Harga:	$43-$48
Ketentuan Pembayaran:	D/A, T/T, L/C, D/P
Kemampuan Pasokan:	40000+Buah+Bulan

Informasi Rinci

Deskripsi Produk

Informasi Rinci

Tempat asal:

Cina

Sertifikasi:

CE,ROSH,ISO

Langkah Malaikat:

1,8°

Memegang Torsi:

12Nm

Saat ini:

5.5A

Panjang motor:

149mm

Batang:

Panjang 37mm

Disesuaikan:

Motor dapat dirancang & diproduksi dengan permintaan khusus.

Disesuaikan:

Motor dapat dirancang & diproduksi dengan permintaan khusus.

Kemasan rincian:

Karton: 36x29x14cm

Menyoroti:

5.5A NEMA 34 Stepper Motor

NEMA 34 Stepper Motor For Engraving Machine

Deskripsi Produk

Nema34 Stepper Motor 86x86mm 112mm 5.5A 12N.m 5kg Motor High Precision Motor for CNC Engraving Machine

Motor Specifications

Step Angel	1.8 °
Fram Size	86mm
Number of Phase	2 Phase
Rated Current	5.5A
Holding Torque	12N.m
Resistance	1.1ohm
Inductance	8mH
Rotor Inertia	3600g-cm²
Motor weight	5 kg
Number of leads	4
Connection	Bipolar

Appearance

Dimensions

Torque Curves

Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs

Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:
Encoder | Brake | Gearbox | Connector

Please click the "Get a quote" button below to tell us your requirements.
