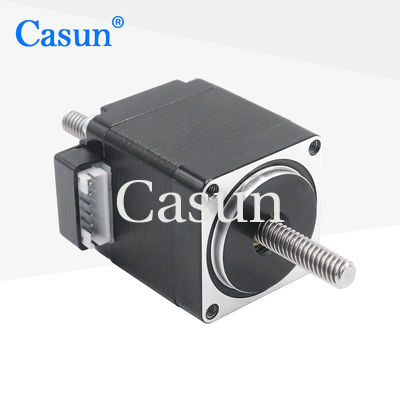

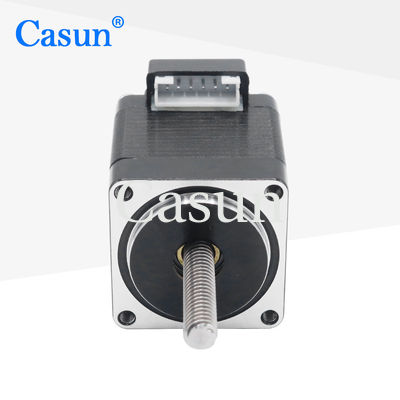

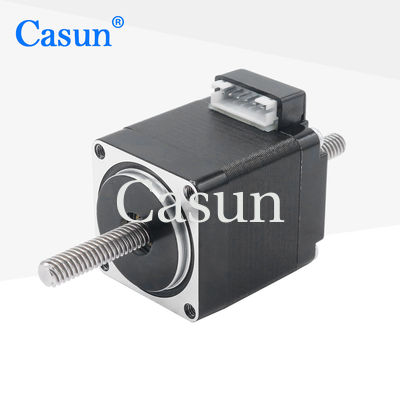

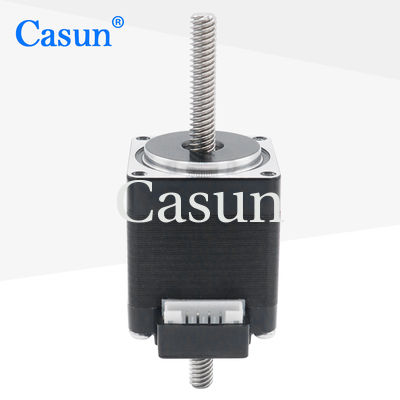

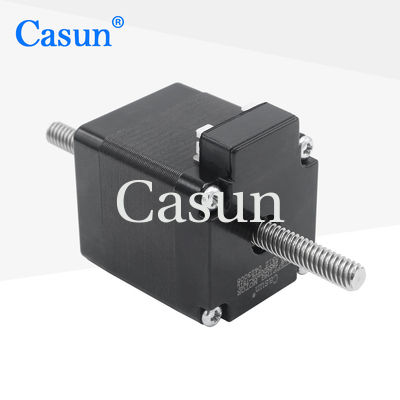

282833mm NEMA 11 Linear Stepper Motor 50mN.M 0.67A For Textile Equipment

282833mm NEMA 11 Linear Stepper Motor 50mN.M 0.67A For Textile Equipment

Nama merek:	Casun
Nomor Model:	28SHD0202-75TL
MOQ:	1 buah
Harga:	$9.94-$12.8
Ketentuan Pembayaran:	D/A, T/T, L/C, D/P
Kemampuan Pasokan:	40000+Buah+Bulan

Informasi Rinci

Deskripsi Produk

Informasi Rinci

Tempat asal:

Cina

Sertifikasi:

CE,ROHS,ISO

Tubuh:

33mm

Saat ini:

0,67 Amp

Memegang Torsi:

50mN.m

Voltase:

3,75 VDC

Disesuaikan:

Motor dapat dirancang & diproduksi dengan permintaan khusus.

Kemasan rincian:

Karton: 38x29xc14m

Menyoroti:

NEMA 11 Linear Stepper Motor

Linear Stepper Motor 0.67A

Deskripsi Produk

The linear screw stepper motor has the characteristic of strong programmability, and its motion state and parameters can be controlled through programming.

Medical and scientific equipment, as well as household appliances, image scanners, and car navigation.

Features:

Bipolar or unipolar versions available
Professional research, development, and manufacturing
With 12 years of operations in China, we have successfully served more than 800 customers
Specializing in delivering personalized services is our area of expertise
Customizations on request

Motor Specifications

Step Angel	1.8 °
Fram Size	28mm
Number of Phase	2 Phase
Rated Current	0.67Amp
Holding Torque	50 mN.m
Resistance	5.6 ohm
Inductance	3.9mH
Rotor Inertia	9g-cm²
Motor weight	0.12kg
Lead Screw	Tr5X4
Connection	Bipolar

Dimensions

Operating Specifications

Step Angle: 1.8°

Maximum Temperature :80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range (%) :85% or less, non-condensing

Magnet Wire Insulation :Class B 130 deg C

Insulation Resistance :100M Ohm at 500 VDC

Dielectric Strength :500 VDC for 1 min

Shaft Radial Play:0.02Max. (450g-load)

Shaft Axial Play:0.08Max. (450g-load)

Max. radial force:28N (20mm from the flange)

Max. axial force):10N

Torque Curves

Submodels

Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs

Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:
Encoder | Brake | Gearbox | Shaft

28*28*33mm NEMA 11 Linear Stepper Motor 50mN.M 0.67A For Textile Equipment 1

Please click the "Get a quote" button below to tell us your requirements.
