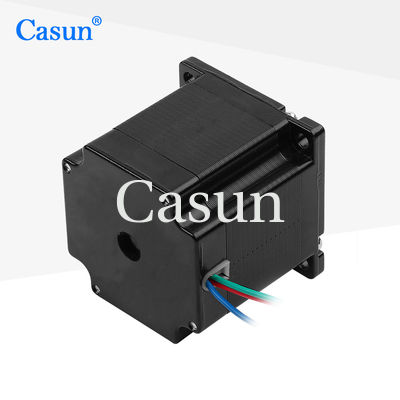

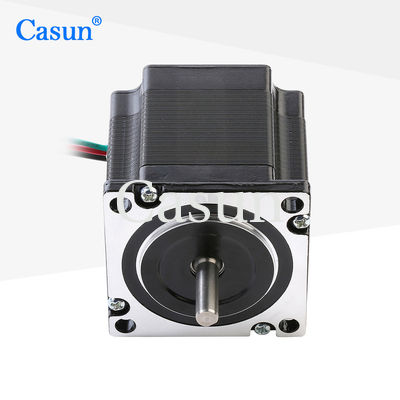

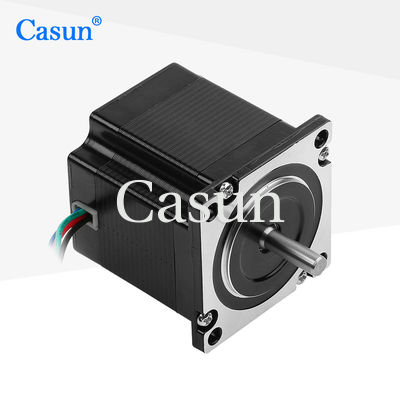

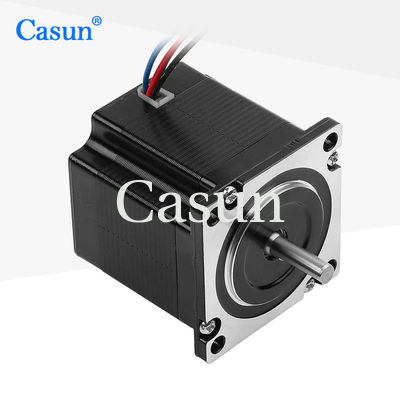

NEMA 23 Hybrid Stepper Motor 2 Phase High Torque 1.16N.m 1.8 Degree 23HS22-1504S

NEMA 23 Hybrid Stepper Motor 2 Phase High Torque 1.16N.m 1.8 Degree 23HS22-1504S

Nama merek:	Casun
Nomor Model:	57SHD4449-21BH
MOQ:	1 buah
Harga:	$3.14-$5
Ketentuan Pembayaran:	D/A, T/T, L/C, D/P
Kemampuan Pasokan:	40000+Buah+Bulan

Informasi Rinci

Deskripsi Produk

Informasi Rinci

Tempat asal:

Cina

Sertifikasi:

CE,ROHS,ISO

Langkah Malaikat:

1,8°

Memegang Torsi:

1,16Nm

Saat ini:

1.5a

Panjang motor:

54mm

Batang:

Penggilingan Poros Datar Panjang 21mm

Disesuaikan:

Motor dapat dirancang & diproduksi dengan permintaan khusus.

Disesuaikan:

Motor dapat dirancang & diproduksi dengan permintaan khusus.

Kemasan rincian:

Karton: 36x29x14cm

Menyoroti:

NEMA 23 Hybrid Stepper Motor

High Torque 1.16N.m Hybrid Stepper Motor

Deskripsi Produk

The 57mm stepper motor is a digital motor that can be controlled by controlling the frequency and width of current pulses.

Fast rotation and accurate speed control can be achieved through step-by-step control.

Features:

High torque and high precision
Professional drivetrain solution specialist
Our engineers will contact you within 48 hours to offer the optimal solution
Having operated in China for 12 years, we have served over 800 customers
Offer custom services

Motor Specifications

Step Angel	1.8 °
Fram Size	57 mm
Number of Phase	2 Phase
Rated Current	1.5 A
Holding Torque	1.16 N.m
Resistance	3.6 ohm
Inductance	13 mH
Rotor Inertia	260 g-cm²
Motor weight	0.6 kg
Number of leads	4
Connection	Bipolar

Appearance

NEMA 23 Hybrid Stepper Motor 2 Phase High Torque 1.16N.m 1.8 Degree 23HS22-1504S 0

Dimensions

NEMA 23 Hybrid Stepper Motor 2 Phase High Torque 1.16N.m 1.8 Degree 23HS22-1504S 1

Operating Specifications

Step Angle: 1.8°

Maximum Temperature :80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range (%) :85% or less, non-condensing

Magnet Wire Insulation :Class B 130 deg C

Insulation Resistance :100M Ohm at 500 VDC

Dielectric Strength :500 VDC for 1 min

Torque Curves

Submodels

Model	Holding Torque	Step Angle	Length	Type of Shaft	Rated Current
57SHD4013-21B	0.6N.m	1.8°	41mm	D Shaft-21mm	1.0A
57SHD4415-21B	1.1N.m	1.8°	54mm	D Shaft-21mm	3.0A
57SHD4816-21B	2.0N.m	1.8°	76mm	D Shaft-21mm	3.0A
57SHD4913-21B	2.5N.m	1.8°	83mm	D Shaft-21mm	3.0A
57SHD4934-20B	3.0N.m	1.8°	100mm	D Shaft-20mm	3.0A

Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs

Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:

Encoder	Brake	Gearbox	Shaft

Please click the "Get a quote" button below to tell us your requirements.
