NEMA 17 Closed Loop Stepper Motor With Encoder 42x42x38mm 380m.N 1.5A For CNC Set

NEMA 17 Closed Loop Stepper Motor With Encoder 42x42x38mm 380m.N 1.5A For CNC Set

Nama merek:	Casun
Nomor Model:	42SHD4160-15QH
MOQ:	1 buah
Harga:	$3.14-$5
Ketentuan Pembayaran:	D/A, T/T, L/C, D/P
Kemampuan Pasokan:	40000+Buah+Bulan

Informasi Rinci

Deskripsi Produk

Informasi Rinci

Tempat asal:

Cina

Sertifikasi:

CE,ROHS,ISO

Langkah Malaikat:

1,8°

Memegang Torsi:

380mN.m

Saat ini:

1.5a

Panjang motor:

60mm

Batang:

Poros Bulat Panjang 15mm

Disesuaikan:

Motor dapat dirancang & diproduksi dengan permintaan khusus.

Kemasan rincian:

Karton: 36x29x14cm

Menyoroti:

NEMA 17 Closed Loop Stepper Motor

Closed Loop Stepper Motor With Encoder

Deskripsi Produk

Casun Stepping Motor NEMA 17 Closed Loop Stepper Motor With Encoder 42x42x38mm 380m.N 1.5A For CNC Set

【42SHD4160】NEMA 17 Closed Loop Stepper Motor With Encoder 42x42x38mm 1.5A for CNC Set with CE ISO

The 42mm Hybrid Stepper Motor Series offers powerful holding torque in a variety of sizes.

Use with a microstepping driver to reduce vibration and achieve higher step resolution.

Choose a baseline version or request your own customized configuration.

Features:

High torque and high precision
For high-tech industry and electronic industry equipment
Available in single or double shaft versions
Established in China for 12 years and has served more than 800 customers.
Our engineers will be in touch within 48 hours to provide the best solution

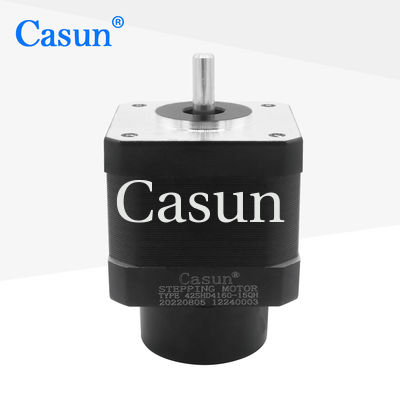

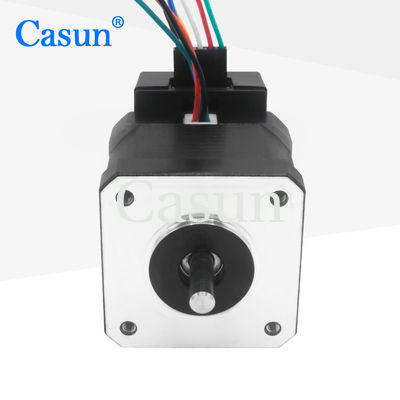

Appearance

NEMA 17 Closed Loop Stepper Motor With Encoder 42x42x38mm 380m.N 1.5A For CNC Set 0

Dimensions

NEMA 17 Closed Loop Stepper Motor With Encoder 42x42x38mm 380m.N 1.5A For CNC Set 1

Motor Specifications

Step Angel	1.8 °
Fram Size	42 mm
Number of Phase	2 Phase
Rated Current	1.5 A
Holding Torque	380 mN.m
Resistance	1.6 ohm
Inductance	2.5 mH
Rotor Inertia	54 g-cm²
Motor weight	0.3 kg
Number of leads	4
Connection	Bipolar

Operating Specifications

Step Angle: 1.8°

Maximum Temperature :80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range (%) :85% or less, non-condensing

Magnet Wire Insulation :Class B 130 deg C

Insulation Resistance :100M Ohm at 500 VDC

Dielectric Strength :500 VDC for 1 min

Torque Curves

Submodels

Model	Holding Torque	Step Angle	Motor Length	Type of Shaft	Rated Current
42SHD4950	0.13N.m	1.8°	20mm	D Shaft-20mm	1.0A
42SHD4003	0.26N.m	1.8°	34mm	D Shaft-20mm	0.4A
42SHD0261	0.45N.m	1.8°	40mm	D Shaft-20mm	1.68A
42SHD4425	0.59N.m	1.8°	48mm	D Shaft-24mm	2.0A
42SHD4813	0.8N.m	1.8°	60mm	D Shaft-24mm	2.1A

Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs

Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:

Encoder	Brake	Gearbox	Shaft

Please click the "Get a quote" button below to tell us your requirements.

Tag:

NEMA 17 Closed Loop Stepper Motor

Closed Loop Stepper Motor With Encoder
